*Description:

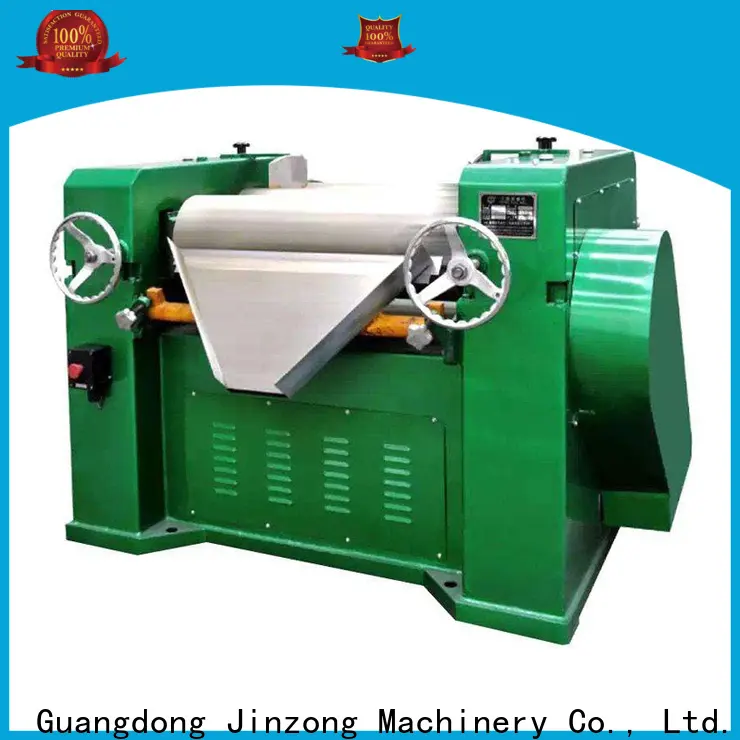

Three rollers mill is mainly used for paint, ink, plastic, paint, food and other paste materials, especially suitable for grinding high viscosity and particle size of fine products. Roll is made of chilled alloy cast iron centrifugal casting, so the crystal phase is closely , high strength, the surface has high hardness and wear resistance, and is provided with a cooling system.
The machine by rotating the handwheel adjustment of the horizontal direction of the three rollers between the gap and the roller surface of jiga and different speed friction to grind dispersing effect.
Packaging & Shipping: Outer packing: plywood case; Inner packing: PE film wrapping overall; FOB port: Guangzhou or Shenzhen
| Model | S65 | S150 | S260 | S405 | SM405 | |
| Roller dia.(mm) | 65 | 150 | 260 | 405 | 405 | |
| Working length(mm) | 125 | 300 | 675 | 810 | 810 | |
| Speed | Slow(r/min) | 26 | 26 | 19.1 | 12.2 | 14.25 |
| Middle(r/min) | 70 | 70 | 54.5 | 37.6 | 44 | |
| Fast(r/min) | 145 | 145 | 155.3 | 116 | 135.5 | |
| Motor(kw) | 0.55 | 2.2 | 7.5 | 15 | 15 | |
| Size(mm) | 410×550×450 | 1010×930×1000 | 1645×1350×1100 | 2100×1950×1350 | 2290×1950×1350 | |
| Weight(kg) | 85 | 550 | 2200 | 5000 | 5200 | |
