Jinzong Machinery professional chemical reactor on sale for reaction
1. New technology has been applied in Jinzong Machinery laboratory reactor . It is developed adopting the latest energy-conserving technology which is frequently used in the international energy-saving appliances.
2. The product is flexible enough. It allows for the transaction area to be positioned left or right for the convenience of viewing.
3. The product suits a diverse range of application needs and is widely used in the global market.
4. The product answers to the needs in the markets and will be more widely used in the future.
The heat exchanger is used for heat transfer between the material . With this device so that the material can reach the specified temperature to meet the technical requirements. Using a combination of various heat exchanger, can use a variety of levels of energy fully and rationally, so that reduce unit product energy consumption, thereby reducing the cost of the product to get good value .
Heat exchanger can be divided into two categories according to the device structure namely,plate-and-frame type heat exchanger and shell and tube heat exchanger. Chip plate heat exchanger is combination of plate-fin and shell-type spiral.Shell and tube heat exchanger is a compostion of shell and tube plate devices.

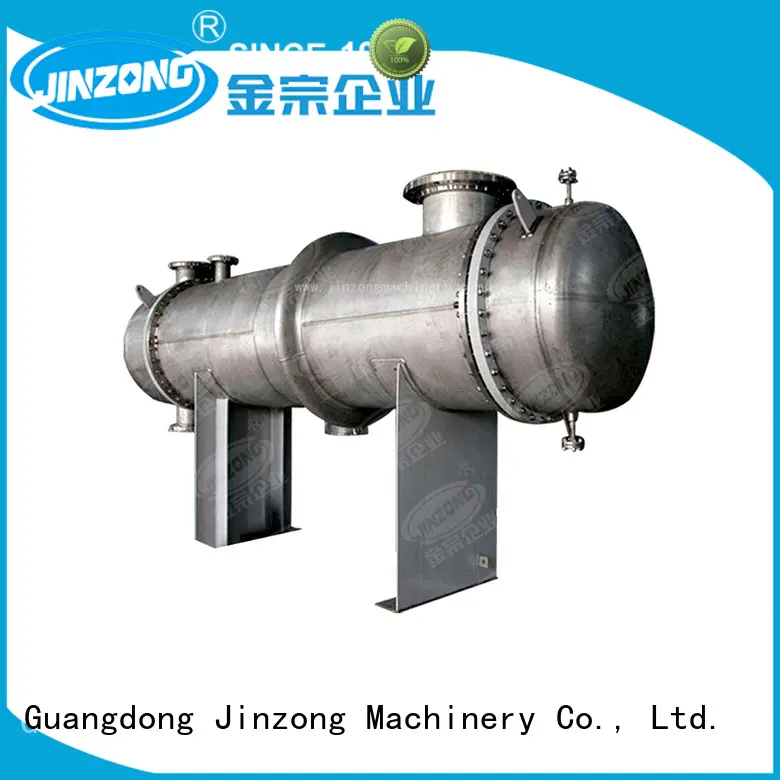

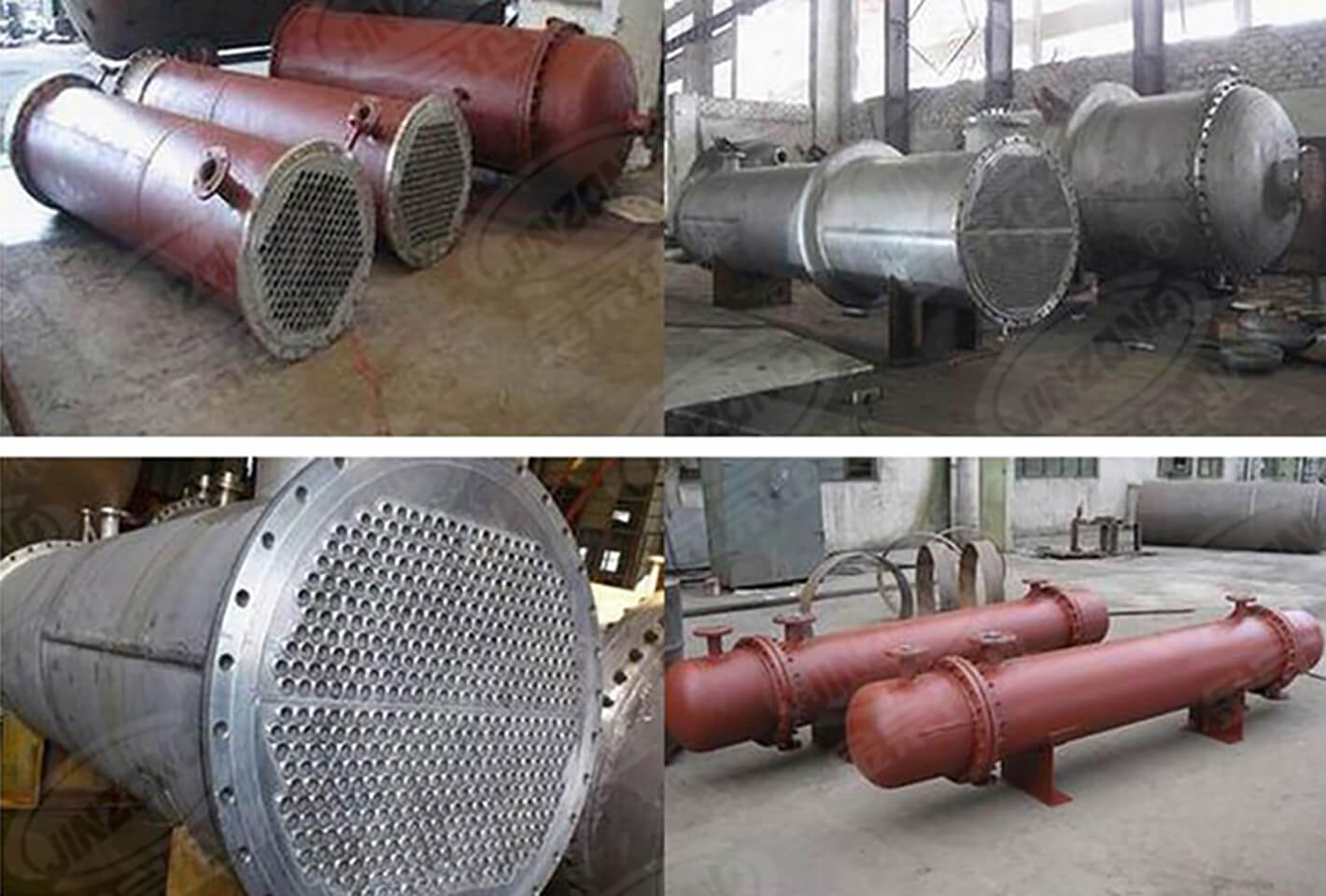

The tubular condenser produced by our factory is divided into three types according to the material: carbon steel tubular condenser, stainless steel tubular condenser and carbon steel and stainless steel mixed tubular condenser. According to the form, it is divided into fixed tubesheet type, floating head type and U-tube heat exchanger. According to the structure, it is divided into single tube, double tube and multi-tube. Heat transfer area is 0.5-500 m2, which can be customized according to user's needs.
| Diameter (mm) | Number of tubes | Tube quantity | Heat exchanger Nominal value/calculated value | Flow speed :0.5m/sec Flow: m/hr | Pressure | |||||
| Tube length (m) | φ25×2.5 | |||||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | φ25×2 | |||||
| 159 | 1 | 14 | 1.51.62 | 22.17 | 33.27 | 0.0044/ 0.0049 | 7.92/8.82 | 0.25 | ||
| 219 | 1 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.1 | 0.0082/0.0090 | 14.76/16.20 | 0.6 | |
| 2 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.81 | 0.0041/0.0045 | 7.38/8.01 | 1.0 | ||
| 273 | 1 | 44 | 5/5.08 | 7/5.18 | 10/10.26 | 14/13.72 | 21/20.63 | 0.0138/0.0152 | 24.84/27.36 | 1.6 |
| 2 | 40 | 5/4.62 | 6/6.19 | 9/9.33 | 12/12.47 | 19/18.76 | 0.0063/0.0069 | 11.24/12.42 | 2.5 | |
| 325 | 1 | 60 | 7/6.93 | 9/9.28 | 14/14.00 | 19/18.71 | 28/28.13 | 0.0188/0.0208 | 33.84/37.44 | 0.6 |
| 2 | 56 | 6/6.47 | 9/8.66 | 13/13.05 | 17/17.46 | 36/26.26 | 0.0088/0.0097 | 15.84/17.46 | 1.0 | |
| 400 | 1 | 119 | 14/13.47 | 18/18.41 | 28/27.76 | 37/37.10 | 55/55.8 | 0.0374/0.0412 | 67.32/74.16 | 1.6 |
| 2 | 110 | 13/12.70 | 17/17.02 | 26/25.66 | 34/34.20 | 50/51.58 | 0.0173/0.0190 | 31.14/34.20 | 2.5 | |
| 500 | 1 | 185 | 45/4.15 | 55/57.68 | 85/86.74 | 0.0581/0.0641 | 104.58/115.38 | |||
| 2 | 180 | 40/41.99 | 55/57.68 | 85/86.74 | 0.0283/0.0312 | 50.94/56.16 | ||||
| 600 | 1 | 269 | 60/62.7 | 85/83.88 | 125/126.13 | 0.0845/0.0932 | 152.10/167.76 | |||
| 2 | 266 | 60/32.05 | 80/82.94 | 125/14.72 | 0.0418/0.0461 | 75.24/83.98 | ||||
| 700 | 1 | 379 | 90/88.41 | 120/118.17 | 175/177.71 | 0.0091/0.1313 | 214.38/236.34 | |||
| 2 | 358 | 85/83.51 | 110/111.62 | 165/167.85 | 0.0562/0.0620 | 101.16/111.60 | ||||
| 800 | 1 | 511 | 120/119.20 | 160/159.16 | 240/239.60 | 0.1605/0.1770 | 288.90/318.60 | |||
| 2 | 488 | 115/113.83 | 150/152.16 | 230/228.81 | 0.0767/0.0845 | 138.06/152.10 | ||||
| 900 | 1 | 649 | 150/151.39 | 200/202.36 | 305/304.3 | 0.2039/0.2248 | 367.02/404.46 | |||
| 2 | 630 | 145/146.96 | 195/196.44 | 295/295.40 | 0.0990/0.1091 | 178.20/196.38 | ||||
| 1000 | 1 | 805 | 185/187.78 | 250/251.00 | 375/377.45 | 0.2529/0.2788 | 455.22/501.74 | |||
| 2 | 792 | 185/184.75 | 245/246.95 | 370/371.36 | 0.1244/0.1374 | 223.92/246.96 | ||||
