Jinzong Machinery pharmaceutical preparation supply for stationery industry
| Trademark | JINZONG | Specification | SUS304, 316L |
| Origin | Guangdong | HS Code | 8419899090 |

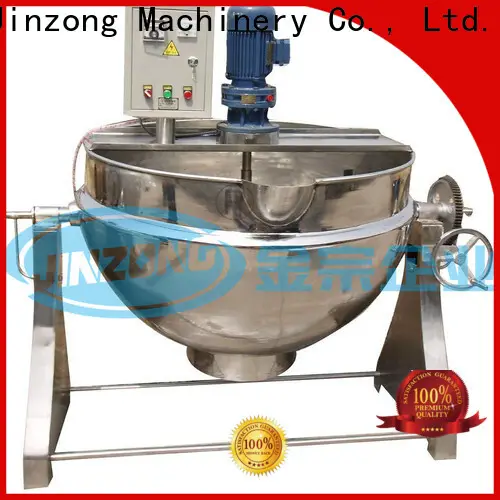

Stainless Steel Tilting Paste Kettle open type concentrator with mixer
The Paste Kettle is also know as steam pan, cooking boiler, boiling kier, digester, steam copper.
Widely used in confectionery, pharmaceutical, dairy, alcohol, cakes, drinks, candied fruit, canned food processing, can also be used in large restaurants for canteen soup, cook, stew, porridge.
technical parameter:
Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.
Product Description
The Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.
The Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.
Features :-
All contact part made of SS 316 as per GMP standard
Hemispherical design for proper mixing paste
Jacket provided with steam/ Thermic/ Fluid heating arrangement
Driven via motor and gear box assembly mounted on top
Tilting arrangement for kettle is provided for discharge for starch paste
Anchor type impeller design for proper mixing of paste
Safe earthing system
Optional Accessories
Flameproof construction
All contact part made of SS 316 as per GMP standard
Hemispherical design for proper mixing paste
Jacket provided with steam/ Thermic/ Fluid heating arrangement
Driven via motor and gear box assembly mounted on top
Tilting arrangement for kettle is provided for discharge for starch paste
Anchor type impeller design for proper mixing of paste
Safe earthing system
Optional Accessories
Flameproof construction
The Paste Kettle is also know as steam pan, cooking boiler, boiling kier, digester, steam copper.
Widely used in confectionery, pharmaceutical, dairy, alcohol, cakes, drinks, candied fruit, canned food processing, can also be used in large restaurants for canteen soup, cook, stew, porridge.
technical parameter:
Model | G50 | G100 | G200 | G300 | G400 | G500 | G600 |
Effective volume (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
Pan design pressure (Mpa) | 0.09 | ||||||
Jacket design pressure (MPa) | 0.15-0.8 | ||||||
Maxium tiltable angle | 90° | ||||||
Motor power (kw) | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
Electric heating power (kw) | 6 | 12 | 18 | 18 | 24 | 36 | 42 |
Heating area (m2) | 0.46 | 0.58 | 1.13 | 1.43 | 1.75 | 2.00 | 2.30 |
Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.
If there is any stain on the surface of the product, it allows people to keep a check thanks to its stainless steel surface. The product has a strong bearing capacity for heavy materials processing.
The product is able to effectively help protect people from germs that will cause itchiness, swelling, and redness. The product has a strong bearing capacity for heavy materials processing.
