| Filtration Grade | Medium Filter | Filter Bag Sectional Shape | Round Bag |
| Filter Bag Environment | High-Temperature | Cartridge Installation | Vertical Lifting |
| Trademark | JINZONG | Transport Package | Carton |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8422303090 |
SS Duplex Basket Filter for pharma processing
We are one of the leading manufacturers and exporters of high quality Duplex Filters. These filters are manufactured using very high quality raw material procured from the most reliable vendors of the industry. They are quality tested on various parameters to ensure their compliance with industry set quality standards. The entire process takes place under the surveillance of our expert professionals and are packed using very high quality material to ensure safe transportation. These duplex filter consist of two filtration chambers each rated for 100% capacity and are attached with easy to remove basket for cleaning.
Design Features :
Duplex filter is designed for continuous filtration.
Standardized and modular filter housing design for any flow rate & any micron rating filtration.
Large filtration surfaces
simple handling
All SS 304/316 construction as per requirement
Standard size inlet/ outlet N.B. pipe line from ½" to 3"
Tested pressure: 10 bar
No constraint on working temperature up to 40 °C to 100 °C
Standard leak proof filter elements
Easy changeover/ replacement
We are one of the leading manufacturers and exporters of high quality Duplex Filters. These filters are manufactured using very high quality raw material procured from the most reliable vendors of the industry. They are quality tested on various parameters to ensure their compliance with industry set quality standards. The entire process takes place under the surveillance of our expert professionals and are packed using very high quality material to ensure safe transportation. These duplex filter consist of two filtration chambers each rated for 100% capacity and are attached with easy to remove basket for cleaning.

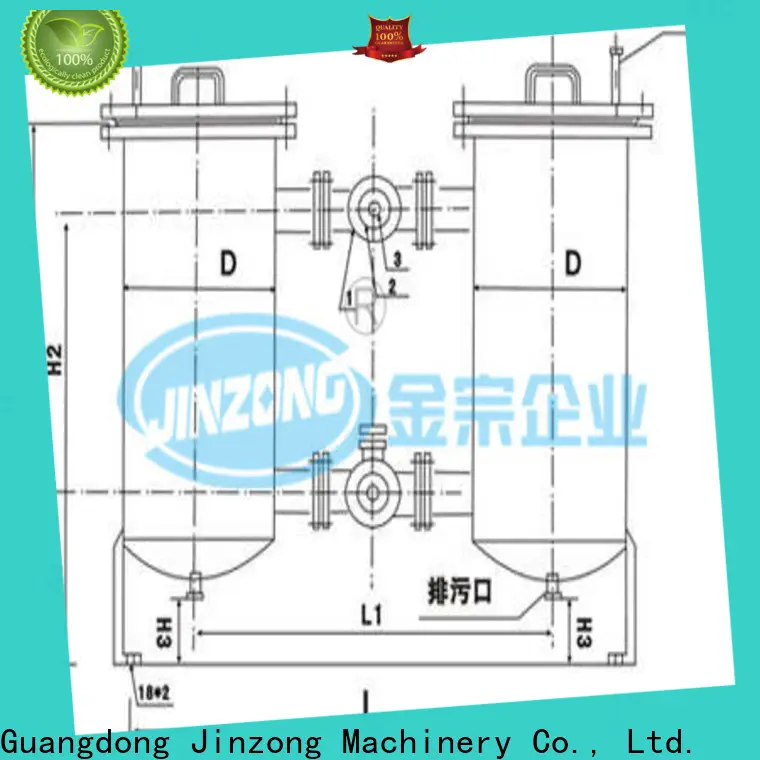

The duplex filter system consists of two filter housings connected in parallel through change over ball valves. A duplex filter can operate continuously and never have to be shut down for cleaning. Duplex filter has two simple filters connected by way of common flow diverter. When one filter gets clogged the flow can be diverted to second filter housing through change over valves. The cartridges of that filter housing can then be washed/ changed and replaced.
Design Features :
Duplex filter is designed for continuous filtration.
Standardized and modular filter housing design for any flow rate & any micron rating filtration.
Large filtration surfaces
simple handling
All SS 304/316 construction as per requirement
Standard size inlet/ outlet N.B. pipe line from ½" to 3"
Tested pressure: 10 bar
No constraint on working temperature up to 40 °C to 100 °C
Standard leak proof filter elements
Easy changeover/ replacement
