Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers

Jinzong Machinery New powered by sharemixer company for stationery industry 1
Jinzong Machinery New powered by sharemixer company for stationery industry 1

Jinzong Machinery New powered by sharemixer company for stationery industry

Inquiry

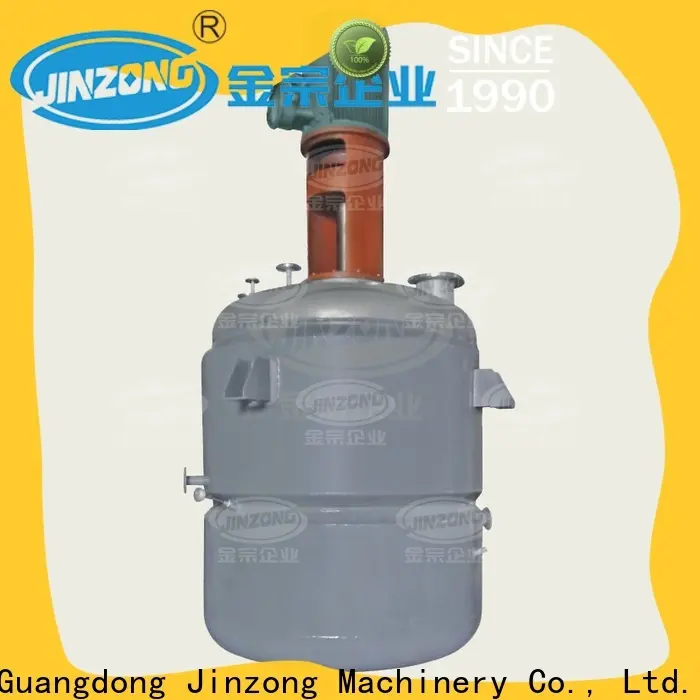

Chemical Machine FS series Multifunctional Mixing Dispersing Tank is integrations of powerful mixer and high speed disperser, which is applicable for mixing, dispersing, dissolution and color mixing of medium/high viscosity and thixotropy materials. Mixing and dispersing can proceed simultaneously and reach ideal effect. It is ideal mixing and dispersing equipment which is easy to operate and widely applicable.

Model

FS-2

FS-3

FS-5

FS-6

FS-8

FS-10

FS-12

Volume of Tank(m 3 )

2

3

5

6

8

10

12

Power of Mixing Motor(kw)

5.5

5.5

7.5

7.5

11

15

18.5

Speed of Mixing Shaft(rpm)

50

50

50

50

41

41

41

Dia. of Mixer Blade(mm)

1300

1500

1700

1700

1900

2100

2300

Power of Dispersing Motor(kw)

13/16

13/16

22/28

22/28

22/28

26/34

30/42

Speed of Dispersing Shaft(rpm)

960/1450

960/1450

960/1450

960/1450

970/1470

970/1470

750/1480

Qnty. of Dispersing Shaft

2

2

2

2

2

2

2

Dimension(mm)

D

1400

1600

1800

1800

2000

2200

2400

H

1650

1765

2048

2400

2800

2950

3100

H1

1930

2000

2200

2200

2500

2570

2620

What is the mixing tank used for?

Mixing tanks are used in chemical process systems to mix multiple liquid components together to create new compounds or products. These tanks typically feature separate inputs for each component, as well as output piping to feed the mixture into the next phase of the process system.


Benefits of using tank mixing

Stainless mixing tanks are aimed at processing liquid, with packaging as the next phase of the procedure.  The system includes effective moving and stirring with blending techniques to heighten the mixing process.  Significantly, the use of mixing tanks reduces the amount of task and time used while working. The right kind of tank with the right features is crucial to the success of the production.

Various fields like chemical manufacturing, building construction, and food processing make use of the mixing tanks.  They help in producing less waste compared to the traditional, manual job.

Many tools are needed to carry out the procedure conveniently and effectively.  Mixing systems can manage various processing vessels at different ranges—from low to the high-end performances.  Most conveniently, workers can perform more than one bulk of task simultaneously.Different models of mixing tanks fit every possible need for mixing.  Machines are designed with excellence to allow quick assembly of different amounts of components.
