Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Jinzong Machinery New pharmaceutical machines manufacturer supply for reflux
| Filtration Grade | Medium Filter | Filter Bag Sectional Shape | Round Bag |
| Filter Bag Environment | High-Temperature | Cartridge Installation | Vertical Lifting |
| Trademark | JINZONG | Transport Package | Carton |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8422303090 |

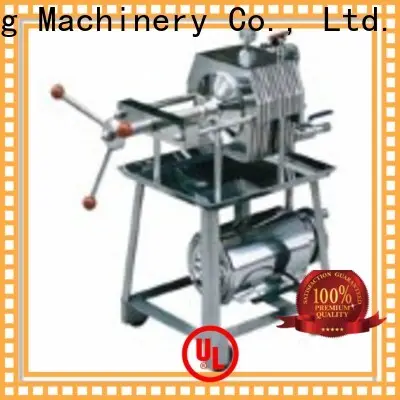

SS plate frame filter press
Product Description
We offer a wide range of Mini Filter Press with varying filtering capacity. The filter press contains number of rectangular frames and plates, which are vertically, arranged one after the other and supported by two side tie bars.
The unit is mounted on a stainless steel, floor standing frame onto which the filter, feed pump and pipework are attached.
We offer a wide range of Mini Filter Press with varying filtering capacity. The filter press contains number of rectangular frames and plates, which are vertically, arranged one after the other and supported by two side tie bars.
The unit is mounted on a stainless steel, floor standing frame onto which the filter, feed pump and pipework are attached.
Features
1) The machine is made of 1Crl8Ni 9Ti or 316L high quality stainless steel, corrosion resistant and durable.
2) The filter plate due to use of a screw structure, according to the filtrate of the different production processes (early filter, semi-fine filter, fine filter) requires the replacement of different filter (direct selection of microporous membrane can not go through the microporous membrane Can achieve the purpose of sterile filtration). Users can also according to the size of the production flow, the corresponding reduction or increase filter plate.
3) All parts of sealed parts of the installation of the ring (milky white silicone rubber seals, non-toxic high temperature), no leakage, good sealing performance.
4) The machine work for the pressurized closed filter, liquid material without loss. Liquid clarity is good, in addition to bacteria (the use of medium-speed filter paper and microporous membrane sterilization effect is particularly good).
5)The machine can also be based on user needs, specially equipped with automatic return channel, after the pump stops rotating, open the return valve (both deflation function) all the automatic discharge of sediment discharge. In the filter high viscosity liquid, can make the liquid flow unimpeded, can make a variety of impurities automatically reflux discharge. At the same time with the water from the backhammer back to the filter for temporary cleaning and for the convenience.
6)The pump and the input tube part of the connection by the three fold-type ring, a solid seal, easy to unload cleaning
1) The machine is made of 1Crl8Ni 9Ti or 316L high quality stainless steel, corrosion resistant and durable.
2) The filter plate due to use of a screw structure, according to the filtrate of the different production processes (early filter, semi-fine filter, fine filter) requires the replacement of different filter (direct selection of microporous membrane can not go through the microporous membrane Can achieve the purpose of sterile filtration). Users can also according to the size of the production flow, the corresponding reduction or increase filter plate.
3) All parts of sealed parts of the installation of the ring (milky white silicone rubber seals, non-toxic high temperature), no leakage, good sealing performance.
4) The machine work for the pressurized closed filter, liquid material without loss. Liquid clarity is good, in addition to bacteria (the use of medium-speed filter paper and microporous membrane sterilization effect is particularly good).
5)The machine can also be based on user needs, specially equipped with automatic return channel, after the pump stops rotating, open the return valve (both deflation function) all the automatic discharge of sediment discharge. In the filter high viscosity liquid, can make the liquid flow unimpeded, can make a variety of impurities automatically reflux discharge. At the same time with the water from the backhammer back to the filter for temporary cleaning and for the convenience.
6)The pump and the input tube part of the connection by the three fold-type ring, a solid seal, easy to unload cleaning
In the context of many manufacturers demanding increased productivity, this product has been widely adopted in many industries. The product is extremely resistant to corrosion.
The use of this product enables manufacturers to be more committed to their core design and product development, rather than painstakingly looking for ways to enhance productivity. The product is extremely resistant to corrosion.
