Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Jinzong Machinery New lotion definition pharmacy company for chemical industry
| Customized | Customized | Condition | New |
| Warranty | 1 Year | After-sales Service | One Year Warranty, Lifelong Maintenance |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 8479820090 |

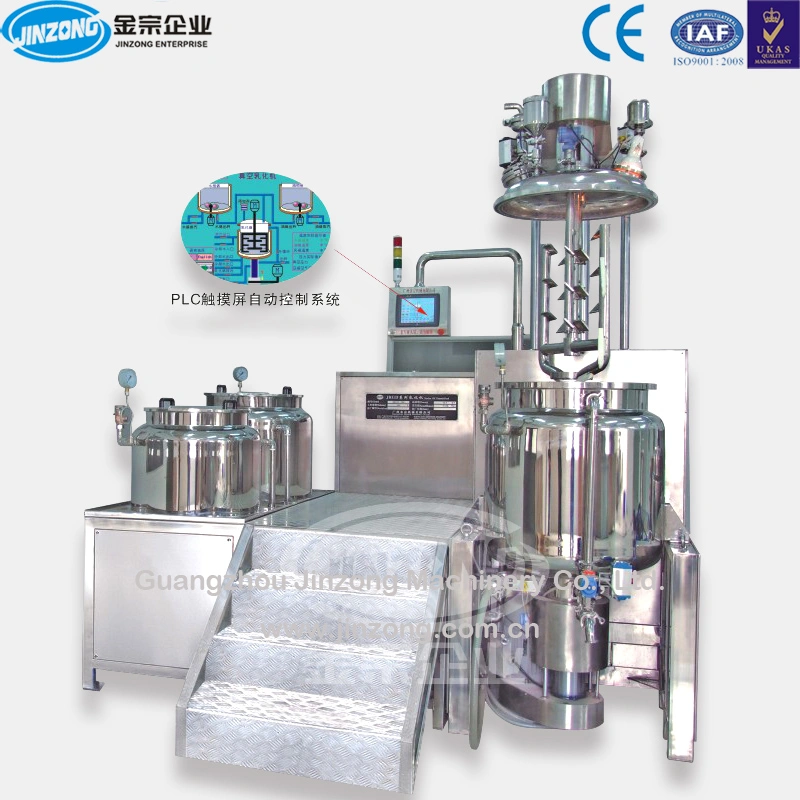

50L Vacuum Emulsifier for Cosmetics Ointment Laboratory
Our JRS vacuum homogenizer and emulsifier combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom-,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality.
Application:
It is the most suitable equipment to produce Mayonnaise, Sandwich Sauce, Salad Dressing, Butterfly, Ketchup, Bread Sauce, chocolate sauce or pudding and other cream products.
Product Function Brief of Vacuum Homogenizing Emulsifying machine
Stainless steel: SUS316L
Adopt hydraulic lift cover
High-speed homogenizing blender(speed from 0-3000RPM, frequency speed regulation)
Scraper blender speed: 0-83 RPM.
The working procedure is operated in the condition of vacuum in order to prevent the material coming into being buble after high-speed blending and reach the request of sanitation and asepsis.
CIP cleanning system is equipped in this system.
The contact part of vessel is made of SUS316L. other parts are made of SUS304.
Mirror finish of the inside surface is 400mesh.
Using SIMENS motor in order to ensure the stabilization of the contral.
Using Panasonic transducer.
Our JRS vacuum homogenizer and emulsifier combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom-,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality.
Application:
It is the most suitable equipment to produce Mayonnaise, Sandwich Sauce, Salad Dressing, Butterfly, Ketchup, Bread Sauce, chocolate sauce or pudding and other cream products.
Product Function Brief of Vacuum Homogenizing Emulsifying machine
Stainless steel: SUS316L
Adopt hydraulic lift cover
High-speed homogenizing blender(speed from 0-3000RPM, frequency speed regulation)
Scraper blender speed: 0-83 RPM.
The working procedure is operated in the condition of vacuum in order to prevent the material coming into being buble after high-speed blending and reach the request of sanitation and asepsis.
CIP cleanning system is equipped in this system.
The contact part of vessel is made of SUS316L. other parts are made of SUS304.
Mirror finish of the inside surface is 400mesh.
Using SIMENS motor in order to ensure the stabilization of the contral.
Using Panasonic transducer.
Technical Parameters:
| Model | Volume of Main Boiler (L) | Volume of Pretreament Boilers (L) | Emulsifying motor | Mixing motor | Dimension | ||
| Power(kw) | Speed(r/min) | Power(kw) | Speed(r/min) | ||||
| 50 | 75 | 45/65 | 4 | 0-3000 | 1.5 | 0-80 | 2700x2500x2000-2700 |
| 100 | 130 | 70/100 | 4 | 1.5 | 2900x2500x2000-2800 | ||
| 200 | 260 | 120/190 | 5.5 | 2.2 | 3200x3000x2400-3350 | ||
| 300 | 375 | 150/260 | 7.5 | 3 | 3350x3100x2550-3650 | ||
| 500 | 620 | 300/460 | 11 | 4 | 3800x3400x2850-4100 | ||
| 1000 | 1250 | 620/900 | 15 | 5.5 | 4150x4150x3700-5200 | ||
Jinzong company can provide all kinds of cosmetic machine as following:
.
Skin Cleaning products making machine
.toilet soap mixing making machine
.face wash vacuum emulsifying machine
.cleansing cream making machine
.cleansing milk making machine
.cleansing lotion making machine
.Soap and detergent manufacturing machines
.Soap and detergent mixing machines
.Laundry cleaning products making machine
.Laundry liquid making machine
.Dishwashing detergents making machine
.Dishwashing Cleaning Liquid mixing making machine
.Household cleaning products making machine
.Floor cleaners detergent making machine
.Glass cleaners detergent making machine
.wood cleaners detergent making machine
.Toilet bowl cleaners detergent making machine
.cosmetics ointment vacuum emulsifiers
.vacuum homogenizer mixer cream emulsion machine
.tomato sauce mayannaise cream vacuum blending tank mixing equipment
.PLC control automatic vacuum cream&ointment emulsifying machine
.
Skin Cleaning products making machine
.toilet soap mixing making machine
.face wash vacuum emulsifying machine
.cleansing cream making machine
.cleansing milk making machine
.cleansing lotion making machine
.Soap and detergent manufacturing machines
.Soap and detergent mixing machines
.Laundry cleaning products making machine
.Laundry liquid making machine
.Dishwashing detergents making machine
.Dishwashing Cleaning Liquid mixing making machine
.Household cleaning products making machine
.Floor cleaners detergent making machine
.Glass cleaners detergent making machine
.wood cleaners detergent making machine
.Toilet bowl cleaners detergent making machine
.cosmetics ointment vacuum emulsifiers
.vacuum homogenizer mixer cream emulsion machine
.tomato sauce mayannaise cream vacuum blending tank mixing equipment
.PLC control automatic vacuum cream&ointment emulsifying machine
We value mechanical equipment just as we value our customers. The product can largely reduce waste materials.
We not only provide stable quality of mechanical equipment, but also have an ideology of globalization. The product can largely reduce waste materials.
