Jinzong Machinery New howard equipment factory for reflux
| Model NO. | QN | Customized | Customized |
| Condition | Used | Warranty | 1 Year |
| Trademark | JINZONG | Transport Package | Wooden Case |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8419899090 |

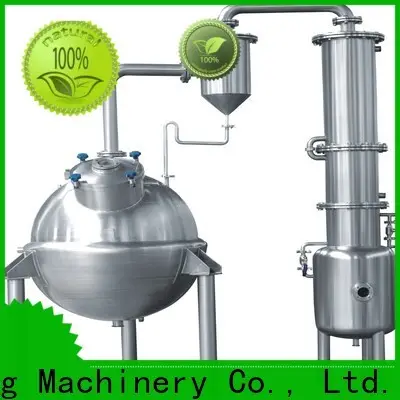

QN Type Spherical evaporation Concentrator for pharma and food processing
QN type spherical concentrator is applicable to vacuum concentrate, crystallize, extract, distillate, alcohol recover of traditional Chinese medicine, Western medicine, food, glucose, fruit juice, candy and chemical liquids.
The spherical concentrator mainly consists of four parts such as concentrating tank, condenser, gas-liquid separator and liquid receiving barrel. It is available to concentrate and distil the material liquid in such industries as pharmacy, food and chemistry, and recycle the organic solvent. The adoption of reduced pressure concentration shortens the time for concentration, avoiding the destruction to effective component inside the thermal sensitive material.
QN Type Spherical evaporation Concentrator for pharma and food processing
Technical Parameters:
QN type spherical concentrator is applicable to vacuum concentrate, crystallize, extract, distillate, alcohol recover of traditional Chinese medicine, Western medicine, food, glucose, fruit juice, candy and chemical liquids.
The spherical concentrator mainly consists of four parts such as concentrating tank, condenser, gas-liquid separator and liquid receiving barrel. It is available to concentrate and distil the material liquid in such industries as pharmacy, food and chemistry, and recycle the organic solvent. The adoption of reduced pressure concentration shortens the time for concentration, avoiding the destruction to effective component inside the thermal sensitive material.
QN Type Spherical evaporation Concentrator for pharma and food processing
Technical Parameters:
| Model | QN250 | QN-500 | QN-100 | QN-1500 |
| Volume (L) | 250 | 500 | 1000 | 1500 |
| Jacket pressure(MPa) | 0.15 | 0.15 | 0.15 | 0.15 |
| vacuum pressure(MPa) | 0.08 | 0.08 | 0.08 | 0.08 |
| evaporation capacity(kg/h) | 70 | 100 | 200 | 300 |
| heating area | 1.1 | 1.5 | 3.1 | 4 |
| condensation area | 3 | 4 | 8 | 13 |
| size (L*W*H) mm | 2100*1200*2500 | 2100*1200*2500 | 2100*1500*2765 | 2500*2300*4550 |
Features:
1. Vacuum evaporation, reducing the boiling point of solution.
2. The heat source can be low pressure steam or waste heat steam.
3. It can concentrate the solution which is not resistant to high temperature. It is suitable for treating the heat sensitive solution.
4. The heat loss of the evaporator can be reduced by reducing the boiling point of the solution.
1. Vacuum evaporation, reducing the boiling point of solution.
2. The heat source can be low pressure steam or waste heat steam.
3. It can concentrate the solution which is not resistant to high temperature. It is suitable for treating the heat sensitive solution.
4. The heat loss of the evaporator can be reduced by reducing the boiling point of the solution.
It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
The equipment consists the following equipments and accessories:
Evaporation chamber,
Condenser
A water receiver
connecting pipes.
The equipment consists the following equipments and accessories:
Evaporation chamber,
Condenser
A water receiver
connecting pipes.
All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
With a function to run 24 hours a day, it enables the manufacturers to conduct production with a reduced workforce thanks to its high efficiency and automation. The product is highly automatic and controllable.
The use of this product enables manufacturers to more focus on their core design and product development, rather than racking their brains to find a way to improve productivity. The product is highly automatic and controllable.
