Jinzong Machinery multi function pharmaceutical filling machine manufacturers for reflux
*DEFINITION OF Stainless steel Synthesis reactor:
The Stainless steel reactor is widely used for reaction, evaporation, concentration and synthesis in industrial production and scientific research such as chemical industry, medicine, dyes, pesticides, organic synthesis, petroleum, food manufacturing and defense industry. , extraction, polymerization, saponification, mineralization, chlorination, nitrification, etc..
Reactor kettles, also known as reaction tanks, distillation tanks, water bath kettles, neutralization kettles, dissolution kettles, condensation kettles, and many other names are named based on the chemical reactions of their own products.
Composition | Instructions |
Specification (L) | 50-50000 |
Design Pressure (Mpa) | Atmospheric Pressure or under pressure |
Material | Carbon steel, stainless steel, enamel, graphite |
Heating Forms | Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc. |
Cooling Forms | Refrigeration medium in the internal pipe jacket |
Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
Stirring blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type |
Seal | Mechanical seal or stuff packing seal |
Inner Surface Treatment | Polished or no polished |
Discharge Valve | Flanged ball valve, open downward discharge valve and others |
Technological Pipe Hole | Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2, |
*Stainless steel reactor performances and features:
Stainless steel reaction vessel(reactor) is heated by the external coil or jacket to supply heat transfer conduction oil / steam / water, it is an ideal equipment of low power and high heating temperature and large volume.
◪ Reduce the thickness of tank and increase its loading capacity..
◪ Increase heat transfer efficiency.
◪ Reduce power consumption and cost.
◪ Reduce the total diameter of tank and be good for the layout of workshop.

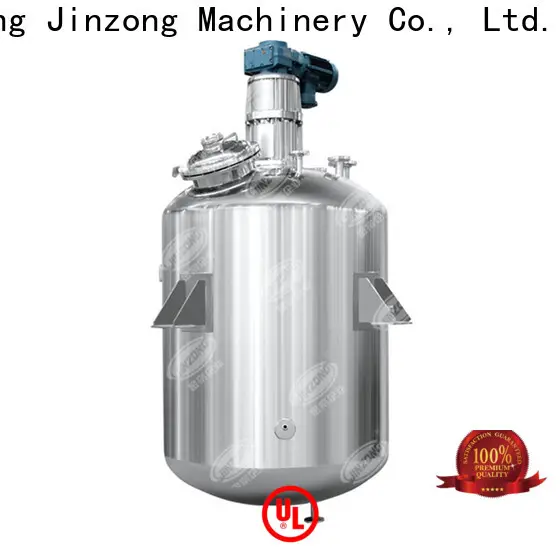

*Stainless steel reactor:
Stainless steel reactor is widely used in reaction, evaporation, concertration, composition, extraction, saponification, mineralization, chlorination, nitration etc. Of chemical, pharmaceutical, dye, pesticide, organic synthesis, petroleum, food additives, defense industry and scientific research.
