Jinzong Machinery mixing efficiency manufacturers for stationery industry
| Model NO. | JZ | Customized | Customized |
| Condition | New | Warranty | 1 Year |
| Trademark | JINZONG | Transport Package | Wooden Case |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8419899090 |

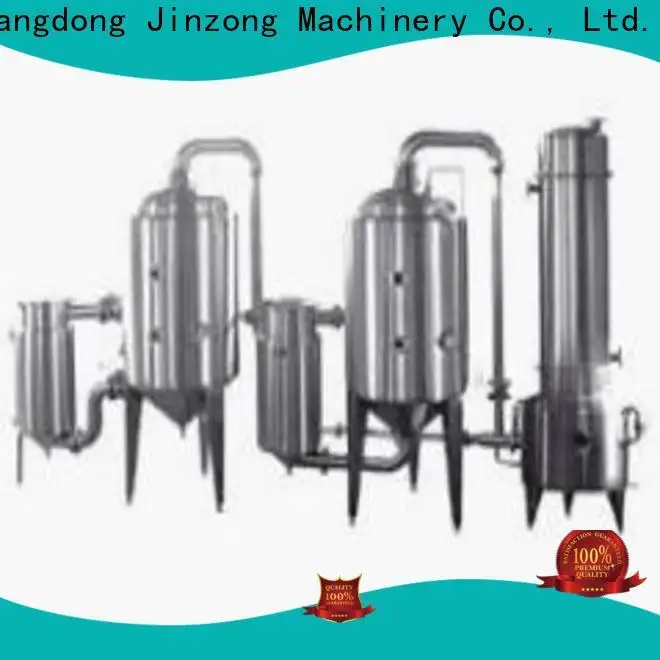

Jinzong 500kg/H Vacuum distillation Double Effect Concentrator on Sale
It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
The equipment consists the following equipments and accessories:
The firstly effective heating chamber,
Two evaporation chambers,
A secondary heating chamber,
A cooler,
A water receiver
connecting pipes.
All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
Production parameter:
1. Type number: SJN2-500
2. Evaporation capacity: 500kg/h
3. Steam pressure: <0.1MPa
4. Evaporation temperature: the first effect 80ºC, the second effect 60ºC.
5. vacuum degree: the first effect 0.05MPa, the second effect 0.08MPa.
6. concentration specific gravity: 1.2-1.25
7. heating area: 6.5+6.5m2
8. cooling area: 12m2
9. steam consumption: 305kg/h
10. recycle water consumption: 12T/h
11. size: 4500*1000*3000mm
It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
The equipment consists the following equipments and accessories:
The firstly effective heating chamber,
Two evaporation chambers,
A secondary heating chamber,
A cooler,
A water receiver
connecting pipes.
All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
Production parameter:
1. Type number: SJN2-500
2. Evaporation capacity: 500kg/h
3. Steam pressure: <0.1MPa
4. Evaporation temperature: the first effect 80ºC, the second effect 60ºC.
5. vacuum degree: the first effect 0.05MPa, the second effect 0.08MPa.
6. concentration specific gravity: 1.2-1.25
7. heating area: 6.5+6.5m2
8. cooling area: 12m2
9. steam consumption: 305kg/h
10. recycle water consumption: 12T/h
11. size: 4500*1000*3000mm
Guangdong Jinzong Machinery Co., Ltd. always keep our minds and stick to our mission. The product can realize mobile feeding and output.
Guangdong Jinzong Machinery Co., Ltd. is committed to providing customers with high quality and competitive products and services. The product can realize mobile feeding and output.
