Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Jinzong Machinery latest pharmaceutical packaging machinery supply for reflux
Company Advantages
1. Jinzong Machinery is manufactured using top-notch materials in conformity with the industry quality standards. The product is extremely resistant to corrosion
2. The offered product is highly demanded among customers for its outstanding features. The product has high sensitivity to quickly respond to users' operation
3. The product features high filtration efficiency. The sand separators have been used for the removal of silt, sand, and organic impurities. The product is very easy to maintain
Company Features
1. Guangdong Jinzong Machinery Co., Ltd. has its own pharmaceutical packaging machinery production base, the main products are .
2. Jinzong Machinery now has mastered the highly technical methods to offer higher-quality pharmaceutical filtration .
3. Our mission is to help customers create something amazing, a product that grabs the attention of their customers. Whatever customers make, we are ready, willing and able to help them differentiate their product in the marketplace. It’s what we do for every one of our customers. Every day. Welcome to visit our factory!
1. Jinzong Machinery is manufactured using top-notch materials in conformity with the industry quality standards. The product is extremely resistant to corrosion
2. The offered product is highly demanded among customers for its outstanding features. The product has high sensitivity to quickly respond to users' operation
3. The product features high filtration efficiency. The sand separators have been used for the removal of silt, sand, and organic impurities. The product is very easy to maintain
| Model NO. | JGC | Filling Principle | Pressure |
| Packaging Container Lifting Structure | Pneumatic Lifting | Structure | Linear |
| Packaging | Bottle | Packaging Material | Composite Materials |
| Packaging Type | Barrel, Bottles, Cans | Filling Range | 5-5000ml |
| Warranty | 1 Year | Driven | Pneumatic |
| Filling Speed | Adjustable | Filling Precision | Less Than 1% |
| Trademark | Jinzong Machinery | Transport Package | High Quality Plywood Cases of Export Standards |
| Specification | 5-60 ml,10-120 ml,25-250 ml,50-500 ml,100-1000 ml | Origin | Guangdong, China (Mainland) |
| HS Code | 8422303090 |
Product Description
1.This unit is developed on the basis of the new design, and increase some additional function according to overseas similar products. Filler is in reference and an increase of some additional features.
2. It is more simplified and more convenient for the operation, precision adjustment, filling volume adjustment, equipment cleaning, maintenance of the products etc.
3.This unit adopts pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of anti-explosion environment.

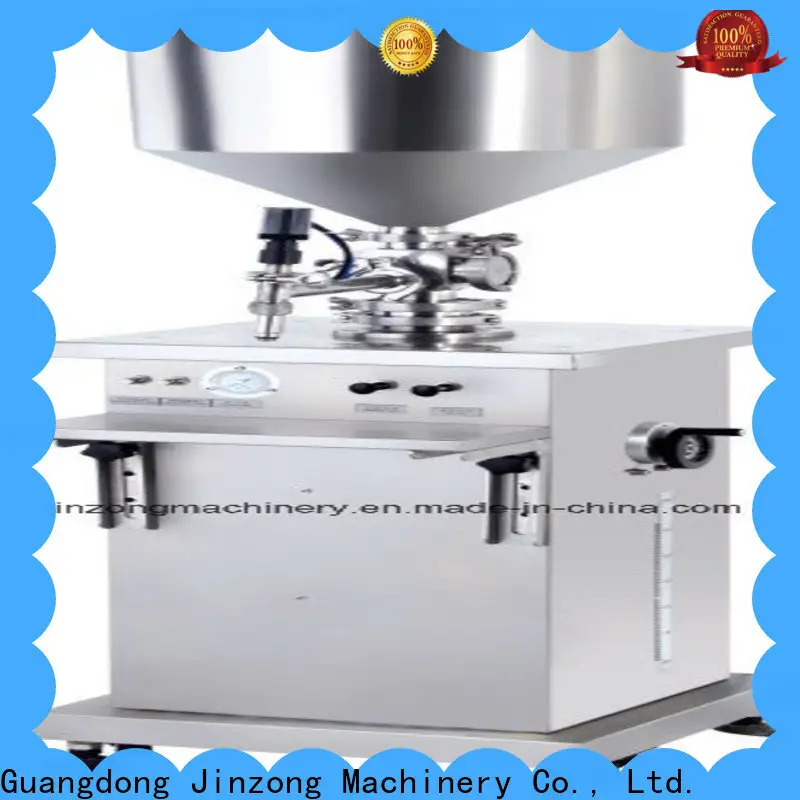

4.This is a sheer pneumatic filling machine for liquids, shampoo, cream or other fluidity products. Simple design and easy to operate. It can fill various liquids, such as shampoo, lotion, etc.
Features:
*The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.
*High productivity.
*Widely used in food, cosmetic, medicine, cream, ointment, chemical industry etc.
*With newly designed figure and compact structure.
*Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling.
*Leakage proof filling system. During filling, the cylinder makes upward and downward movements to drive the closure head.
Related filling machines
Technical parameters:
2. It is more simplified and more convenient for the operation, precision adjustment, filling volume adjustment, equipment cleaning, maintenance of the products etc.
3.This unit adopts pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of anti-explosion environment.
4.This is a sheer pneumatic filling machine for liquids, shampoo, cream or other fluidity products. Simple design and easy to operate. It can fill various liquids, such as shampoo, lotion, etc.
Features:
*The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.
*High productivity.
*Widely used in food, cosmetic, medicine, cream, ointment, chemical industry etc.
*With newly designed figure and compact structure.
*Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling.
*Leakage proof filling system. During filling, the cylinder makes upward and downward movements to drive the closure head.
Related filling machines
Technical parameters:
| Model | Filling volume | Filling speed | Air supply |
| JGC-5 | 5-60 ml | 0-45 bottles/min | 0.2-0.6 Mpa |
| JGC-10 | 10-120 ml | 0-35 bottles/min | 0.2-0.6 Mpa |
| JGC-25 | 25-250 ml | 0-30 bottles/min | 0.2-0.6 Mpa |
| JGC-50 | 50-500 ml | 0-30 bottles/min | 0.2-0.6 Mpa |
| JGC-100 | 100-1000 ml | 0-25 bottles/min | 0.2-0.6 Mpa |
| JGC-250 | 250-2500 ml | 0-18 bottles/min | 0.2-0.6 Mpa |
| JGC-500 | 500-5000 ml | 0-12 bottles/min | 0.2-0.6 Mpa |
Service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sale service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
Company information:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sale service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
Company information:
Product lines range from:
1> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
2> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
3> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
Certificates
Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
This product is proved be applicable to meet the various requirements of our customers. The product is simple and convenient to operate.
This product enjoy a high status among consumers in the industry. The product is simple and convenient to operate.
Company Features
1. Guangdong Jinzong Machinery Co., Ltd. has its own pharmaceutical packaging machinery production base, the main products are .
2. Jinzong Machinery now has mastered the highly technical methods to offer higher-quality pharmaceutical filtration .
3. Our mission is to help customers create something amazing, a product that grabs the attention of their customers. Whatever customers make, we are ready, willing and able to help them differentiate their product in the marketplace. It’s what we do for every one of our customers. Every day. Welcome to visit our factory!
