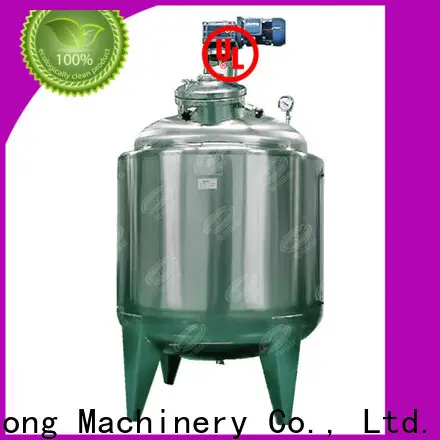

Liquid Syrup & Suspension Manufacturing Vessel
Machine description:
Fully automatic PLC and HMI operated liquid manufacturing vessel, customized capacity from 50 Liter to 6000 Liter.
Usage:
manufacturing of pharmaceutical liquid syrup / suspension.
Automatic syrup manufacturing plant include:
1.Sugar Melting Vessel
2.Syrup Manufacturing Vessel
3.Storage Vessel
4.Bag Filter ( Basket Filter )
5.Filter Press
6.inline high shear emulsifier/homogenizer
7.Product Piping of Complete liquid syrup manufacturing plant
8.Transfer ( Centrifugal ) Pump
9.Stainless steel Working Platform
10.PLC + HMI Control Panel
Material: product contact parts SS316L, Non-contact parts SS304
Design Pressure:-1~5 Bar (g) or ATM
Work Temperature:0-150 °C
Working Volumes:50~8000L, customized
inline high shear emulsifier/homogenizer speed: 0-3000rpm, VFD control
If you have any technical requirement,feel free to contact us . We can design the vessels according to your requirement .
*MAIN COMPOSITION of syrup manufacturing vessel:
Syrup manufacturing vessel is mainly composed of tank body, mixing system and accessories. The tank body includes inner cylinder, outer cylinder, jacket and supporting foot, etc. Rock wool filling is used as insulation layer between inner cylinder and outer cylinder if needed, jacket form is integrate jacket. equip with inline high shear emulsifier/homogenizer for liquid emulsifying and recirculation. top entry or bottom entry stirrer for liquid mixing. The accessories mainly include sanitary manhole, sight glass, light, material and liquid inlet and outlet pipe, thermometer, pressure gauge, CIP spray ball, vent filter or customized.
*Stainless steel jacket mixing tank performances and features:
◪ Design compliance with cGMP.
◪ Agitator can be top or bottom driven or magnetically driven;
◪ Atmospheric, Vacuum or Pressure Operation;
The sugar crystals and water are added to the sugar melting vessel. The steam is supplied and the sugar crystals are melted. Addition of additives manually and it mixes at the set temperature.
The meltdown sugar is transferred to manufacturing vessel after filtration in cone filter through transfer pump. The steam and heat are supplied in manufacturing vessel and the additives are added manually and mixed at the set temperature.
Then the homogenizer performs emulsification and dispersion.
