Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Jinzong Machinery customized ointment filling machine for sale for reflux
1. Jinzong Machinery ointment filling machine is manufactured by the inclusion of modern machines and sophisticated techniques in the production process.
2. This product achieves great softness. The chemical softener is used to absorb on the surface of fibers, making the surface become smooth meanwhile enhancing the force between fibers.
3. For people who want to carry around their personal stuff, this product can help keep their belongings safe from the elements.
*Description:

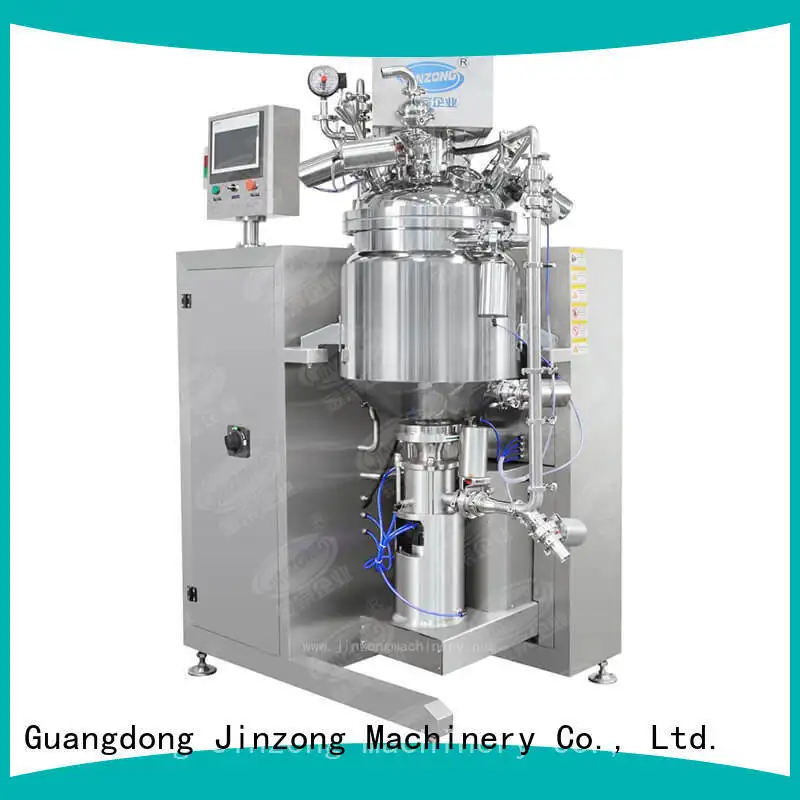

◪ Vacuum homogeneous emulsifier combination - there are two types of combination to choose, single emulsifier and oil-water pot emulsifier. Both can be chosen different power and mixing form combination to obtain the required performance.
◪ High shear vacuum homogenizer mixing form - the main pot is frame mixing with homogenizing head, oil-water pot has anchor mixing, dispersing plate and pulp-blade mixing, etc.
◪ PLC system - PLC control system can not only control the equipment, but also connect with remote PC with automatic processing program to optimize production time and save power.
◪ High shear vacuum homogenizing emulsifier temperature measurement - can be measured from the wall of the container, can also be located in the mixing barrel of materials, with the rotation movement.
◪ It is a emulsifying equipment for producing high-quality cream products in the pharmaceutical and food industries.
◪ High shear vacuum homogenizing emulsifier lifting mode - double column hydraulic lifting, single column hydraulic lifting, electric screw lifting.
◪ Compared with other types of emulsifier, it has many outstanding characteristics.
◪ Homogenizing structure with Germany technology, combined type high-efficiency homogeneous emulsifier has six shear teeth with special structure. The shear times are many. The instantaneous local pressure can reach more than 100 Mpa, and the homogeneous emulsification effect can be achieved dozens of times by one pass of materials.
◪ Upper and lower homogeneous emulsifier: Emulsifier can rise up and down freely at the bottom of the pot through hydraulic system. It can work in different states. It can be widely applied for many materials.
◪ Precision kinematic phase structure and cooling system: high efficiency, low power loss, homogenizer can work continuously for a long time, suitable for some special process requirements.
◪ Various feeding modes: top and bottom feeding separately, or both top and bottom feeding at the same time, especially suitable for the process that the late additives must be completely homogeneous emulsification requirements.
◪ Unique bottom one-button powder absorption function: As long as a switch is turned on, the system can automatically inhale powder and other materials from the bottom and complete homogeneous emulsification.
◪ The omni-directional multi-effect turbulent mixing system without dead angle, can effectively improve mixing speed and mixing effect.
◪ No dead angle in production and less residue in discharging material: Like the upper homogenizing emulsifier, it is better than other types of emulsifier.
◪ Automatic discharging function: remote pipeline transportation function can be realized without adding other equipment, effectively avoiding secondary pollution of rabbit manufactured products;
◪ Circulating cleaning function: more convenient than any other type of emulsifier cleaning.
◪ Emulsifying pot cover can be lifted to ensure easy maintenance and cleaning.
◪ Hydraulic mechanism is used in all lifting systems to ensure smooth, accurate and safe operation.
◪ Processing parameter recording function: The system can automatically record the main process parameters. Technical managers can check the historical work records at any time, meet the requirements of GMP and ISO system for process quality recording, and ensure product quality.
| Model | Working capacity (L) | Emulsifying motor | Mixing motor | Vacuum pump | Heating power | ||||
| Power (kw) | Speed (r/min) | Power (kw) | Speed (r/min) | Power (kw) | Limit vacuum | Electric heating | Steam heating | ||
| JRF-5L | 5 | 0.37 | 0-3000 | 0.18 | 0-63 | 0.18 | -0.09 | 3 | / |
| JRF-10L | 10 | 0.55 | 0.37 | 0-63 | 0.25 | -0.09 | 3 | / | |
| JRF-20L | 20 | 0.75 | 0.37 | 0-63 | 0.25 | -0.09 | 6 | / | |
| JRF-50L | 50 | 3 | 0.75 | 0-63 | 0.81 | -0.09 | 9 | / | |
| JRF-100L | 100 | 4 | 1.5 | 0-63 | 1.45 | -0.09 | 12 | / | |
| JRF-200L | 200 | 5.5 | 2.2 | 0-63 | 2.23 | -0.09 | 18 | / | |
Company Features
1. Guangdong Jinzong Machinery Co., Ltd. is one of the key enterprises producing equipment in pharmaceutical industry in China.
2. Our factory has set up a strict production management system. This system includes inspection for the incoming raw materials, assembly and packaging requirements, and waste disposal requirements.
3. Jinzong Machinery upholds the scientific development and the core concept of ointment filling machine . Contact us! The service of Jinzong Machinery helps us to win more trustworthy partners. Contact us!
Tel: +86-758-3623881
E-mail: sales@jinzong.com.cn
Fax: +86-758-3623880
Address: NO.3 Kangtai St., Hi-tech Dist., Zhaoqing City, Guangdong Province, China（526238）
