Jinzong Machinery custom still equipment for sale for business for reaction
1. The design of Jinzong Machinery is done by the professional designers who are skillful in identifying and distilling the best elements from different tableware cultures and transforming them into reality. The product is easy to install, which greatly save human resources
2. [企业简称] Actively strengthen exchanges and cooperation with outstanding enterprises in the same industry, constantly apply new processes and technologies to production, and strive to improve product quality. The still equipment for sale produced is reliable in quality, high in quality, safe and reliable in use, and customers can enjoy Buy with confidence.
3. The product passes the industry standard inspection, eliminates all flaw. The product has an automatic data collection function
4. Strict quality control process runs through the whole production process and eliminates the possible defects. The product is highly automatic and controllable
5. This product must go through our quality inspector's internal quality assurance procedure to ensure non-defective quality. The product has the merit of full traceability
| Customized | Customized | Condition | New |
| Warranty | 1 Year | Trademark | JINZONG |
| Transport Package | Wooden Case | Specification | SUS304, 316L |
| Origin | Guangdong | HS Code | 8419899090 |
| Model | Volume of Main Tank (L) | Volume of Dissolving tank (L) | Dimension | Total Power (kw) | Weight (kg) |
| 50 | 100 | 45/65 | 2700x2500x2000-2700 | 9 | 1700 |
| 100 | 130 | 70/100 | 2900x2500x2000-2800 | 10 | 1900 |
| 200 | 260 | 120/190 | 3200x3000x2400-3350 | 13 | 2400 |
| 300 | 375 | 150/260 | 3350x3100x2550-3650 | 17 | 2700 |
| 500 | 620 | 300/460 | 3800x3400x2850-4100 | 25 | 3600 |
| 1000 | 1250 | 620/900 | 4150x4150x3700-5200 | 32 | 5400 |

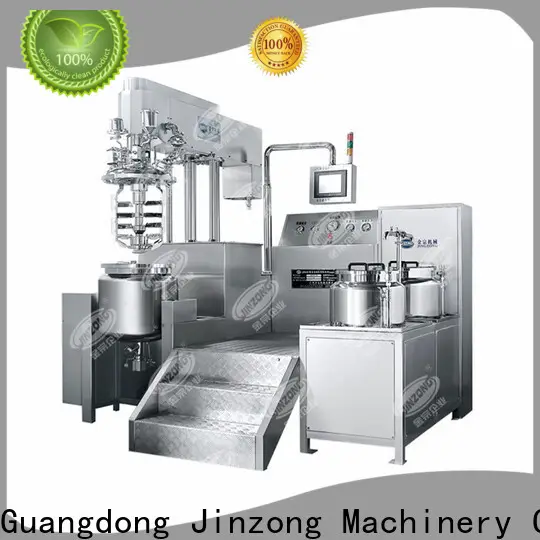

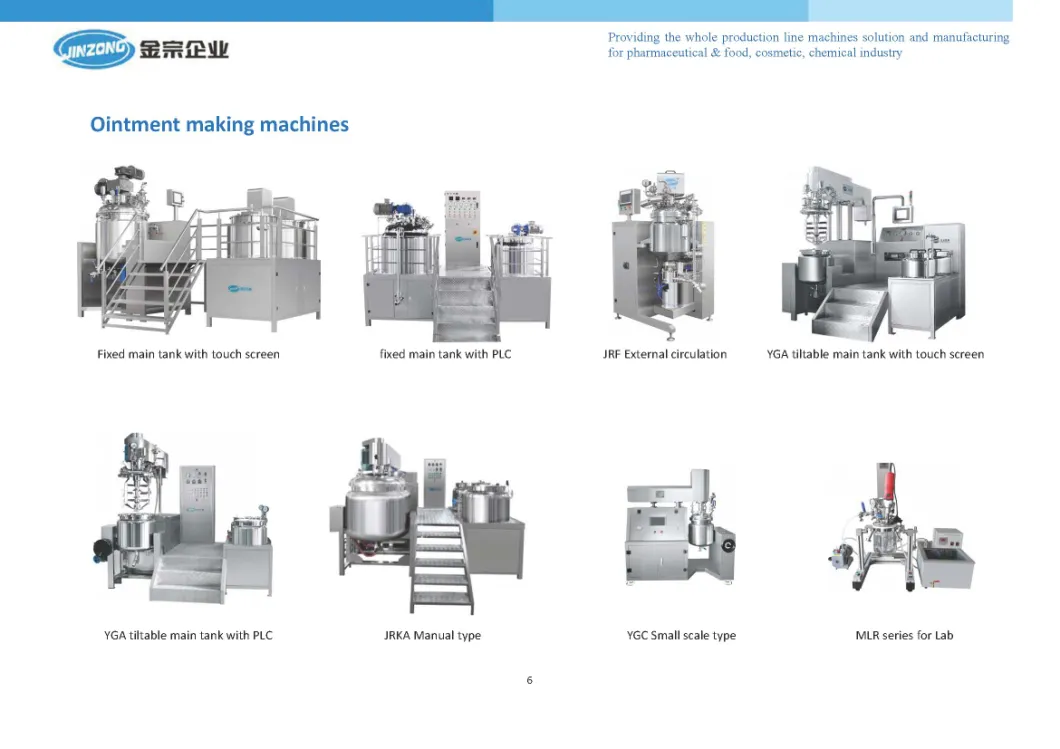

We can provide all kinds of emulsifying machines from 1 liter to 3000 liter, which are suitable for laboratory, pilot, pilot and batch ointment production.
Features:
The material of this system: 316L high quality stainless steel for inner wall, The jacket and outer are made from 304 stainless steel with special bright polishing surface.
Vacuum Homogenizer Emulsifying pot has three layers, inner wall 5 mm, middle layer 4 mm and outer layer 3 mm. The tank and pipeline for mirror polishing, fully in line with GMP requirements; It is a upper homogenization machine. The machine can arbitrarily set homogeneous time according to different products.
The lid of the pot is equipped with an illumination observation hole to keep watching of the emulsification status of the products in the pot at any time. Equipped with micro material inlet to facilitate special flavor adding process. Easy to operate. Discharges from the bottom of the pot, Can be filled directly from the filling machine for sub-loading. Dumping discharges, easy to clean.
Oil tank and water tank: Both are composed of two layers, the inner wall thickness is 4mm and the outer layer thickness is 3mm.
Water and Oil tank heating system: steam heating through the jacket, insulation jacket on the outer layer, not only to ensure that reducing the heat release, but also to avoid scalding employees.
Water and oil pot mixing system: two tanks are equipped with rated mixer and disperser 0.75KW, so that oil and water can be heated more quickly and evenly.
Vacuum system: voltage 220V, power 1.1KW, vacuum suction, using rotary vane vacuum pump defoaming treatment, improve homogenization effect.
Mixing system: Through gear transmission, two-way mixing is realized. Frequency conversion speed regulation scrapes low, voltage 380V, power 1.1KW, 80 rpm.
Heating system: electric heating.
Lifting system: Electric lifting system is easy to operate and can effectively emulsify materials under closed conditions.
Control system: equipped with digital time relay device, so that the speed and working time of homogenizer can be adjusted according to the process and characteristics of different products. Electrical main-range control cabinet, all the power of the machine on and off, temperature indication, control, voltage, current and frequency conversion speed regulation, homogenizer time setting are reasonably centralized, the operation is clear at a glance.
Please do contact us should you have any inquiries about our extraction equipment. We are competent and are your one stop shopping centre for all your machinery needs.
Company Features
1. Dedicating to independent R&D and manufacture of still equipment for sale , Guangdong Jinzong Machinery Co., Ltd. has achieved thrived development and grown stronger. We have imported the latest generation of manufacturing facilities. Having our own powerful production facilities helps us gain flexibility, as well as propose and verify the feasibility of newly developed products.
2. We have a team of experts. Leveraging years of experience, they are specialists in solving technical problems of our manufacturing process to deliver our customers' objectives in an efficient and seamless way.
3. The factory, with advanced production machines and testing instruments, has increased the overall technical level to ensure stable monthly output and product quality. Guangdong Jinzong Machinery Co., Ltd. has been on the right track with the help of our relentless workers. Ask online!
