Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Jinzong Machinery custom manufacturers for The construction industry
1. Jinzong Machinery has to go through diverse tests. These tests include fatigue resistance testing, dimensional stability testing, chemical resistance testing, and mechanical testing. The product can realize mobile feeding and output
2. Customers who have repurchased it said there is no color fading or paint flaking off problems even it has used for a long time. The product has a strong bearing capacity for heavy materials processing
3. Its quality is guaranteed by a team of people who are dedicated to improving the whole the quality control system. The product is very easy to maintain
4. The high quality will secure its leading status in the market place. The product is simple and convenient to operate
5. Stable performance, long storage life and reliable quality. The product has high sensitivity to quickly respond to users' operation
| Model NO. | FL, FX | Layout Type | Verticle |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling |
| Operating type | Continuous Operating | Condition | New |
| Power(W) | 2.2kw-90kw | Voltage | 380V/50Hz |
| Warranty | 1 Year | Trademark | Jinzong Machinery |
| Transport Package | High Quality Plywood Cases of Export Standards | Specification | Prevail |
| Origin | Guangdong, China (Mainland) | HS Code | 8474390000 |

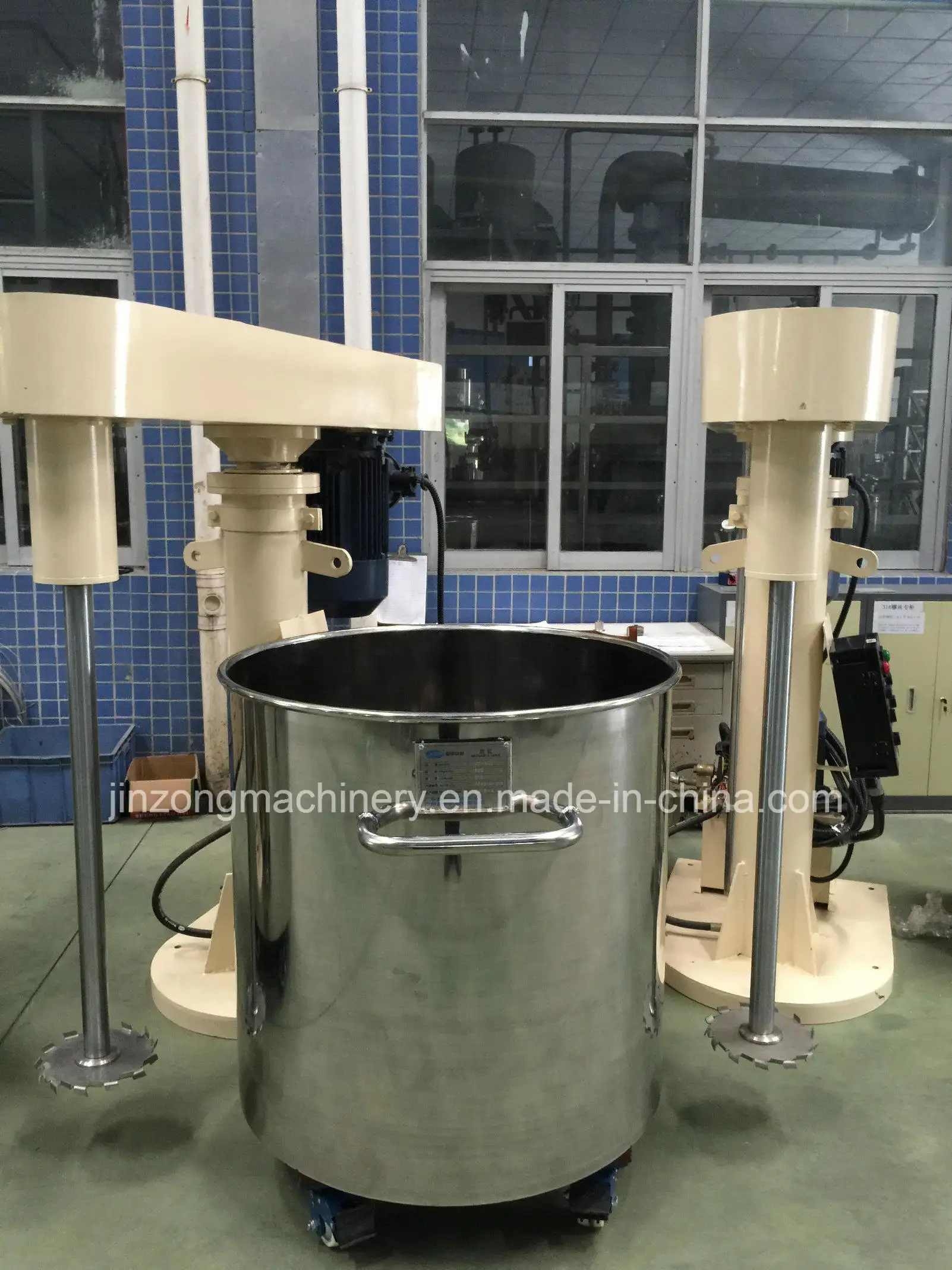

1. Introduction
-Equipment for pre-mixing the solid-liquid or liquid-liquid raw materials, used for as stirrer, blender, disperser and others.
-For paint, coating, pigments, inks, detergent, lithium anode paste, textile auliliary, etc.
-Conbine milling and dispersing funciton.
-High efficiency, easy operation, maintence, cleaning and changing color.
-Applicable for independent tank operation an high/low viscosity paste.
- Configure with qualified inverter, various speed control
- Hydraulic lifting, can be moved around
-Integrate dispersing and grinding in on process
3. Function selection
-Imported or domestic top brand inverter for option
-Custom-made design is available, such as Ex-proof, vacuum, sealed operation.
-Belt or not clamping for optional
4. Technical data
| Type | FL2.2/3/4 | FL5.5/7.5/11 | FL15/18.5/22 | FL30/37/FX37 | FL45/FX45 | FL90/FX90 |
| Motor power(kw) | 2.2/3/4 | 5.5/7.5/11 | 15/18.5/22 | 30/37/37 | 45 | 45 |
| Split shaft speed bulk(r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1000 |
| Wheel dia. Of disperser(mm) | 200 | 250 | 300 | 350-400 | 450 | 600 |
| Rack lift travel(mm) | 700 | 900 | 1200 | 1200 | 1600 | 1600 |
| Pump power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 |
| Cylinder volume of material(L) | 100-200 | 400-600 | 600-1000 | 1000-2000 | 1000-2500 | 5000 |
| Weight(kg) | 400 | 800 | 1500 | 1700 | 2100 | 2600 |
| Dimensions(mm) | A | 1700 | 1750 | 2200 | 2600 | 2700 |
| B | 1300 | 1800 | 2100 | 2700 | 3000 | |
| C | 600 | 900 | 1100 | 1400 | 1600 | |
| W(with) | 540 | 350 | 900 | 1000 | 1500 |

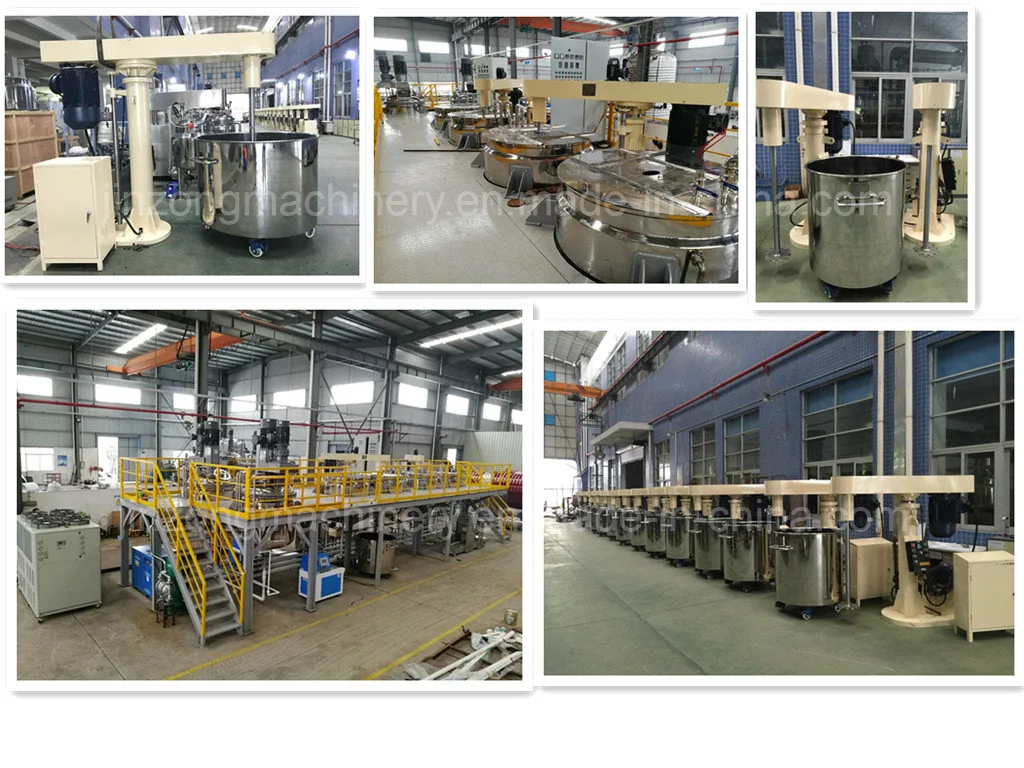

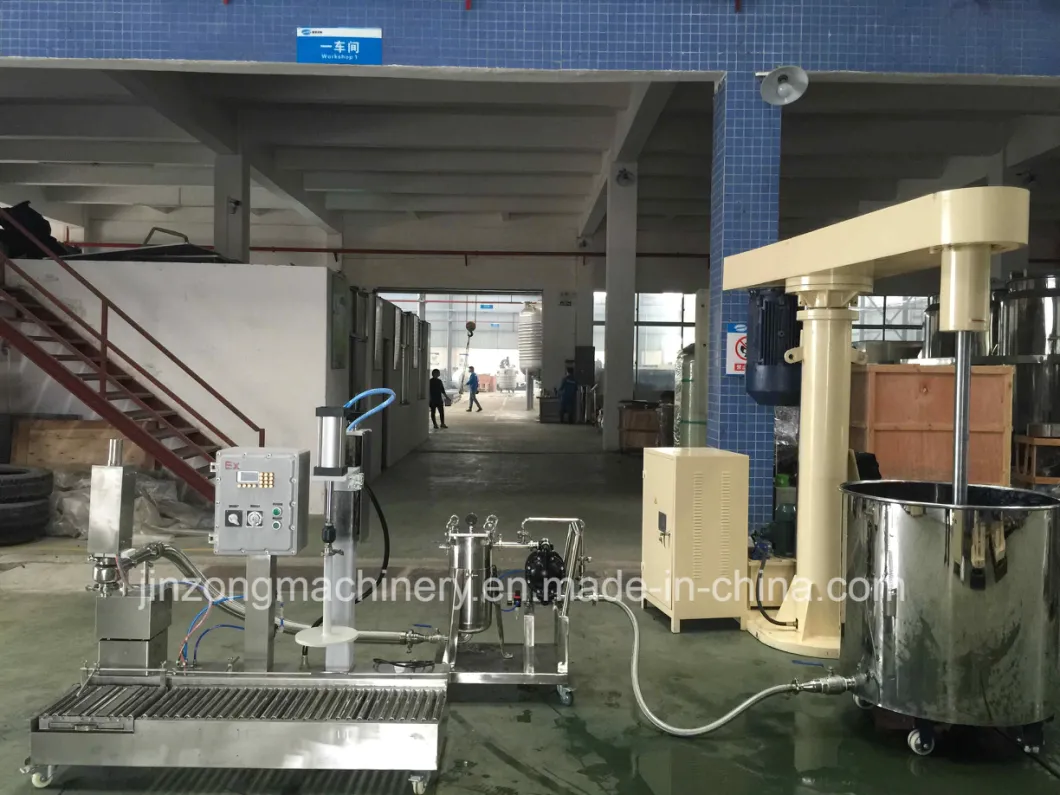

Finished Products
Product Use
It is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.
Packaging&Shipping
Packaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
Shipping
FOB port: Guangzhou or Shenzhen
Our Services
-Engineers avaiable to service machinery overseas
- Technological support
- Guarantee: 1 year
- Custom-make is ok for us
1. Pre-sale service
Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.
a. Select equipment model
b. Design and manufacturer products according to client's special requirements.
c. Train technical persnonal for clients
2. Service during the sale
a. Pre-check and accept products adhead of delivers
b. Send photos of machines every week and send testing video
c. Help clients to draft solving plans
3. After-sales services
Provide considerate services to minimize client's worries
a. Assist client to prepare for the first project.
b. Install and debug the equipment
c. Train initiative to eliminate the trouble rapidly
d. Provide technical replacement
e. After-sales team will solve problems via operating and provide technical instruction
4. Warranty
The warranty is 12 months
Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge
We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.
Customers
-Engineers avaiable to service machinery overseas
- Technological support
- Guarantee: 1 year
- Custom-make is ok for us
1. Pre-sale service
Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.
a. Select equipment model
b. Design and manufacturer products according to client's special requirements.
c. Train technical persnonal for clients
2. Service during the sale
a. Pre-check and accept products adhead of delivers
b. Send photos of machines every week and send testing video
c. Help clients to draft solving plans
3. After-sales services
Provide considerate services to minimize client's worries
a. Assist client to prepare for the first project.
b. Install and debug the equipment
c. Train initiative to eliminate the trouble rapidly
d. Provide technical replacement
e. After-sales team will solve problems via operating and provide technical instruction
4. Warranty
The warranty is 12 months
Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge
We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.
Customers
Certifications

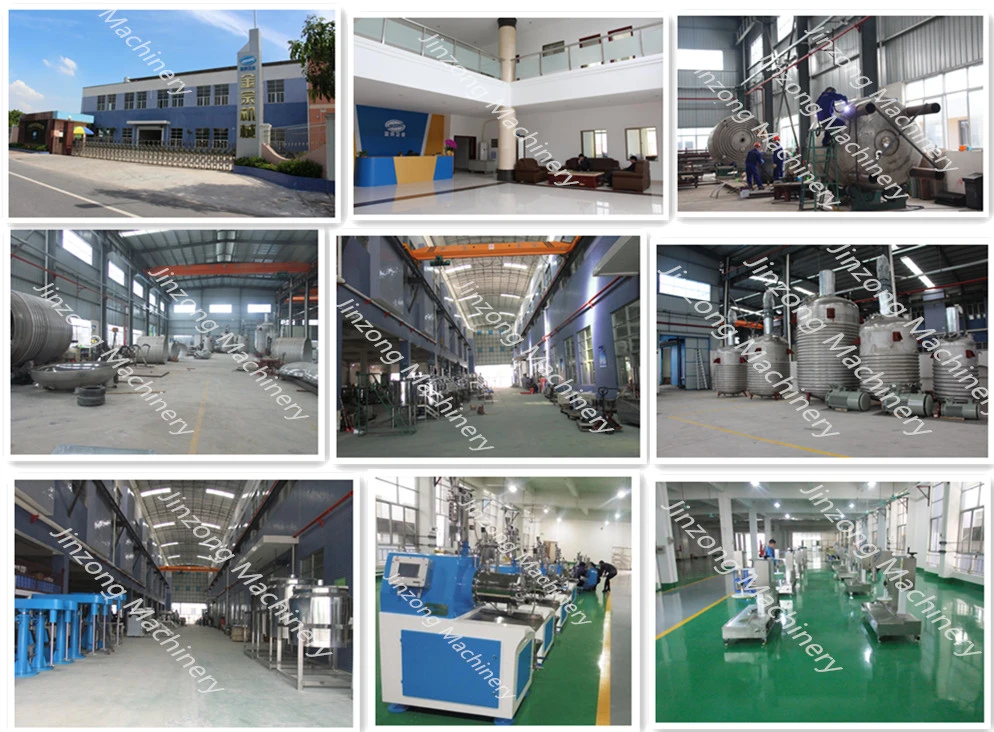

Company Informatons
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
1> Chemical Machinery: reactors, resins production line, high speed disperser, storage tank, sand mill, three rollers mill, filter, filling macihne, paint&coating production line,paint testing machines, etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
Company Features
1. The engineers and designers of Guangdong Jinzong Machinery Co., Ltd. have the world's top work experience of .
2. We have strict control over the wastes we produced during production. We will conduct security compliance management and inspection of those wastes, and handle them respectively using corresponding methods.
Tel: +86-758-3623881
E-mail: sales@jinzong.com.cn
Fax: +86-758-3623880
Address: NO.3 Kangtai St., Hi-tech Dist., Zhaoqing City, Guangdong Province, China（526238）
