Jinzong Machinery company for chemical industry
1. Jinzong Machinery has gone through the following production process: the preparation of metal materials, cutting, welding, surface treatment, drying, and spraying. The product is very easy to maintain
2. The product enables manufacturers free from the risk of staff shortages. It significantly helps reduce the number of needed workers for production. The product can largely reduce waste materials
3. The quality test is conducted by professional team and the third parties as well. The product has a strong bearing capacity for heavy materials processing
4. The product outperforms other similar products in functionality and quality. The product can greatly contribute to production efficiency
| Model NO. | FL | Layout Type | Verticle |
| Mixing Drum Shape | Conical | Additional Capabilities | Milling |
| Operating type | Continuous Operating | Condition | New |
| Type | High Speed Disperser | Trademark | JINZONG |
| Transport Package | Wooden Case | Specification | CE, SGS |
| Origin | Guangdong, China |

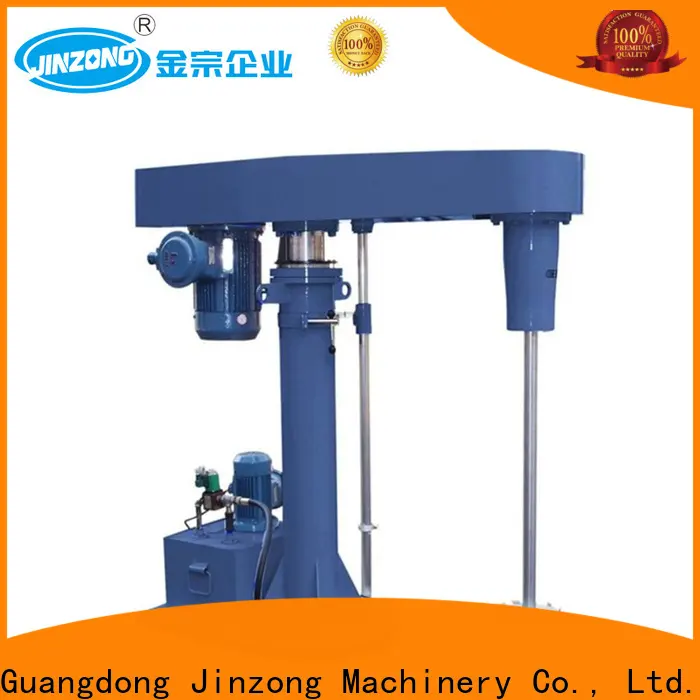

The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.
Technical Parameter
| Type | FL2.2/3/4 | FL5.5/7.5/11 | FL15/18.5/22 | FL30/37/FX37 | FL45/FX45 | FL90/FX90 | |
| Motor power(kw) | 2.2/3/4 | 5.5/7.5/11 | 15/18.5/22 | 30/37/37 | 45 | 90 | |
| Dispersion speed(r/min) | 0~1450 | 0~1450 | 0~1450 | 0~1200 | 0~1200 | 0~1000 | |
| Impeller dia.(mm) | 200 | 250 | 300 | 350~400 | 450 | 600 | |
| Lifting heightl(mm) | 700 | 900 | 1200 | 1200 | 1600 | 1600 | |
| Pump power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 | |
| Container volume(L) | 100~200 | 400~600 | 600~1000 | 1000~2000 | 1000~2500 | 5000 | |
| Weight(kg) | 400 | 800 | 1500 | 1700 | 2100 | 2600 | |
(mm) Dimensions | A | 1700 | 1750 | 2200 | 2200 | 2600 | 2700 |
| B | 1300 | 1800 | 2100 | 2100 | 2700 | 3000 | |
| C | 600 | 900 | 1100 | 1100 | 1400 | 1600 | |
| W | 540 | 650 | 900 | 900 | 1000 | 1500 | |
Product Use
It is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.
1. Pre-sale service
Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.
a. Select equipment model
b. Design and manufacturer products according to client's special requirements.
c. Train technical persnonal for clients
2. Service during the sale
a. Pre-check and accept products adhead of delivers
b. Send photos of machines every week and send testing video
c. Help clients to draft solving plans
3. After-sales services
Provide considerate services to minimize client's worries
a. Assist client to prepare for the first project.
b. Install and debug the equipment
c. Train initiative to eliminate the trouble rapidly
d. Provide technical replacement
e. After-sales team will solve problems via operating and provide technical instruction
4. Warranty
The warranty is 12 months
Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge
We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.
Customers
Certifications
Company Informatons
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:
1> Chemical Machinery: reactors, resins production line, high speed disperser, storage tank, sand mill, three rollers mill, filter, filling macihne, paint&coating production line,paint testing machines, etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
Company Features
1. Guangdong Jinzong Machinery Co., Ltd. is a trustworthy company based in China. We have accumulated rich experience in the development, manufacture, and marketing of . Quality is above everything in Guangdong Jinzong Machinery Co., Ltd..
2. The quality for our is so great that you can definitely rely on.
3. Our equipment dissolver production equipment possesses many innovative features created and designed by us. In our corporate culture, we believe everyone is an innovator. We value every creative idea and strive to create various platforms and tools for employees to develop and learn. We believe this will ultimately bring practical benefits to clients.
