best batch mixing manufacturers for distillation

Latest products

Glycerol diester edible oil production line

Food additive production line equipment

Peptide extraction Biological enzymatic hydrolysis production line

Mixing Tank with Inline Homogenizer Mayonnaise Manufacturing Machine

Product Information
Feedback

Company Advantages
1. Good material of batch mixing makes good sale in Guangdong Jinzong Machinery Co., Ltd.. The product has a strong bearing capacity for heavy materials processing
2. With many advantages, the product has earned a good reputation in the market and has extensive market potential. The product works very stably, which helps meet users' production schedules
3. This garment has good durability. The adopted fine yarn is tightly bound, which makes the resulting fabric and garment stronger and more durable. The product has the advantage of low energy consumption
4. The amount of light being reflected from its surface is always sufficient. Its surface is generally coated with barium sulfate or titanium dioxide accompanied by magnesium carbonate. The product can withstand high-temperature working
5. No defects can be found on this product, namely overall product failure or reduced usability of the product that prevents it from being placed on the market which can include open seams, holes or broken stitches. The product has the merit of full traceability

Model NO.	JRF Seriers	Customized	Customized
Condition	New	Warranty	1 Year
Trademark	JINZONG	Transport Package	Wooden Case
Origin	Guangdong	HS Code	8474900000

Macro lab pilot Vacuum ointment Homogenizer Cream Mixer Manufacturer
Jinzong Machinery best batch mixing manufacturers for distillation-1

Feature:
Working capacity from 1L to 2000L;
Suitable for cream and emulsions of 10,000~50,000cps viscosity;
Internal emulsifying and homogenizing by top mounted batch homogenizer or bottom homogenizer;

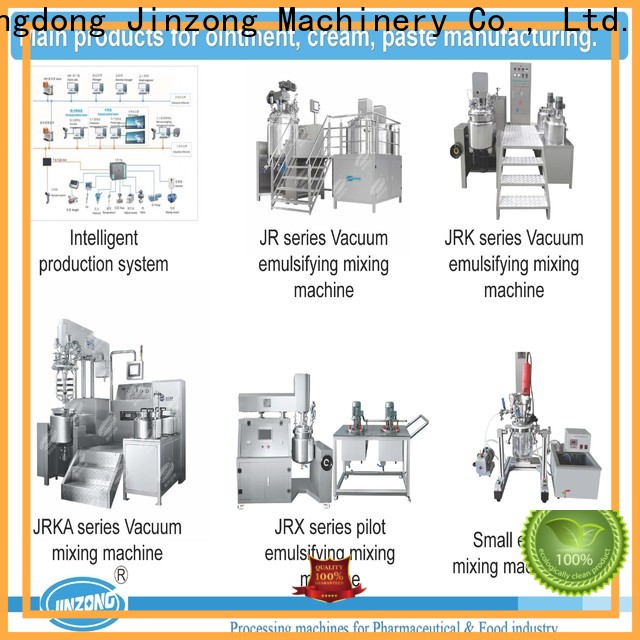

JR series Vacuum emulsifying mixing machine

Model	Volume of Main Tank (L)	Volume of Dissolving tank(L)	Dimension(mm)	total power(kw)	weitht(kg)
100	130	70/100	260025002300	5.5	1200
200	260	120/190	280030002650	7.7	1600
300	375	150/260	290030002750	10.5	1900
500	620	300/460	330035503050	15	2500
1000	1250	620/900	410039003500	20.5	4000
2000	2600	1200/1500	450052004000	26	6000
3000	3800	1500/2400	480057004200	33	9000
5000	6500	2500/3600	510064004800	37
10000	12500	5000/7000		52

JRK series Vacuum mixing machine

Model	Volume of Main Tank (L)	Volume of Dissolving tank(L)	Dimension(mm)	total power(kw)	weitht(kg)
50	75	45/65	270023001950-2650	9	1600
100	130	70/100	290027002050-2800	10	1800
200	260	120/190	320029002350-3300	13	2200
300	375	150/260	335030002550-3650	17	2500
500	620	300/460	380034002800-4050	25	3300
1000	1250	620/900	415041503700-5200	32	5000

JRKA series Vacuum mixing machine

Model	Volume of Main Tank (L)	Volume of Dissolving tank(L)	Dimension(mm)	total power(kw)	weitht(kg)
50	75	45/65	270025002000-2700	9	1600
100	130	70/100	290025002000-2800	10	1800
200	260	120/190	320030002400-3350	13	2200
300	375	150/260	335031002550-3650	17	2500
500	620	300/460	380034002850-4100	25	3300
1000	1250	620/900	415041503700-5200	32	5000

JRX series pilot emulsifying mixing machine

Model	Volume of Main Tank (L)	Volume of Dissolving tank(L)	Main Tank Dimension(mm)	Dissolving Tank Dimension(mm)	Total Power (kw)
5L	1.2	3/3	11004001250-1600	1000x600x800	6
10L	13	6/10	16506001800-2350	1200x600x800	8
20L	26	12/16	16506001800-2400	1200x600x800	10
30L	37	18/25	16506001800-2400	1200x600x800	15
50L	60	30/40	17006501900-2500	1200x600x900	19

Vacuum homogeneous emulsifier combination - there are two types of combination to choose, single emulsifier and oil-water pot emulsifier. Both can be chosen different power and mixing form combination to obtain the required performance.
High shear vacuum homogenizer mixing form - the main pot is frame mixing with homogenizing head, oil-water pot has anchor mixing, dispersing plate and pulp-blade mixing, etc.
PLC system - PLC control system can not only control the equipment, but also connect with remote PC with automatic processing program to optimize production time and save power.
High shear vacuum homogenizing emulsifier temperature measurement - can be measured from the wall of the container, can also be located in the mixing barrel of materials, with the rotation movement.
It is a emulsifying equipment for producing high-quality cream products in the pharmaceutical and food industries.
High shear vacuum homogenizing emulsifier lifting mode - double column hydraulic lifting, single column hydraulic lifting, electric screw lifting.
Compared with other types of emulsifier, it has many outstanding characteristics.
Homogenizing structure with Germany technology, combined type high-efficiency homogeneous emulsifier has six shear teeth with special structure. The shear times are many. The instantaneous local pressure can reach more than 100 Mpa, and the homogeneous emulsification effect can be achieved dozens of times by one pass of materials.
Upper and lower homogeneous emulsifier: Emulsifier can rise up and down freely at the bottom of the pot through hydraulic system. It can work in different states. It can be widely applied for many materials.
Precision kinematic phase structure and cooling system: high efficiency, low power loss, homogenizer can work continuously for a long time, suitable for some special process requirements.
Various feeding modes: top and bottom feeding separately, or both top and bottom feeding at the same time, especially suitable for the process that the late additives must be completely homogeneous emulsification requirements.
Unique bottom one-button powder absorption function: As long as a switch is turned on, the system can automatically inhale powder and other materials from the bottom and complete homogeneous emulsification.
The omni-directional multi-effect turbulent mixing system without dead angle, can effectively improve mixing speed and mixing effect.
No dead angle in production and less residue in discharging material: Like the upper homogenizing emulsifier, it is better than other types of emulsifier.
Automatic discharging function: remote pipeline transportation function can be realized without adding other equipment, effectively avoiding secondary pollution of rabbit manufactured products;
Circulating cleaning function: more convenient than any other type of emulsifier cleaning.
Emulsifying pot cover can be lifted to ensure easy maintenance and cleaning.
Hydraulic mechanism is used in all lifting systems to ensure smooth, accurate and safe operation.
Processing parameter recording function: The system can automatically record the main process parameters. Technical managers can check the historical work records at any time, meet the requirements of GMP and ISO system for process quality recording, and ensure product quality.
Jinzong Machinery best batch mixing manufacturers for distillation-2

Jinzong Machinery best batch mixing manufacturers for distillation-2

Jinzong Machinery best batch mixing manufacturers for distillation-3

Jinzong Machinery best batch mixing manufacturers for distillation-4

Application
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste;
Pharmaceuticals: ointment, dental composite, syrup, injection;
Food: mayonnaise, dressing, jam, butter, margarine, wasabi;
Chemicals: polyester, synthetic fiber, shoe cream;

Jinzong vacuum emulsifying mixer is the most popular vacuum emulsifier homogenizer design in Asia and is suitable for making small to medium batches of ointment, cream and emulsions.
Jinzong Machinery best batch mixing manufacturers for distillation-5

Jinzong Machinery best batch mixing manufacturers for distillation-5

Jinzong Machinery best batch mixing manufacturers for distillation-6

Guangdong Jinzong Machinery Co., Ltd. has passed the ISO9001 quality management system and ISO14001 environmental management system certification. The product works very stably, which helps meet users' production schedules. Each mechanical equipment has passed comprehensive performance tests before leaving the factory to ensure product quality. The product works very stably, which helps meet users' production schedules.
