Jinzong Machinery ampoule filling machine for business for stationery industry
| Customized | Non-Customized | Condition | New |
| Warranty | 1 Year | After-sales Service | One Year Warranty, Lifelong Maintenance |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 8419899090 |

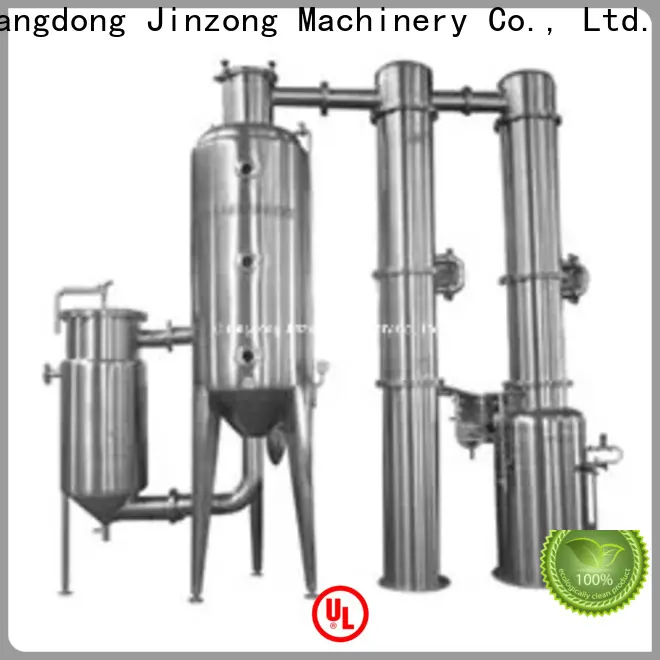

Vacuum Distillation Concentrator Production Line for API Chemical Medicine and Biological Medicine
It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
The equipment consists the following equipments and accessories:
The firstly effective heating chamber,
Two evaporation chambers,
A secondary heating chamber,
A cooler,
A water receiver
connecting pipes.
All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
Production parameter:
1. Type number: SJN2-500
2. Evaporation capacity: 500kg/h
3. Steam pressure: <0.1MPa
4. Evaporation temperature: the first effect 80ºC, the second effect 60ºC.
5. vacuum degree: the first effect 0.05MPa, the second effect 0.08MPa.
6. concentration specific gravity: 1.2-1.25
7. heating area: 6.5+6.5m2
8. cooling area: 12m2
9. steam consumption: 305kg/h
10. recycle water consumption: 12T/h
11. size: 4500*1000*3000mm
It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
The equipment consists the following equipments and accessories:
The firstly effective heating chamber,
Two evaporation chambers,
A secondary heating chamber,
A cooler,
A water receiver
connecting pipes.
All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
Production parameter:
1. Type number: SJN2-500
2. Evaporation capacity: 500kg/h
3. Steam pressure: <0.1MPa
4. Evaporation temperature: the first effect 80ºC, the second effect 60ºC.
5. vacuum degree: the first effect 0.05MPa, the second effect 0.08MPa.
6. concentration specific gravity: 1.2-1.25
7. heating area: 6.5+6.5m2
8. cooling area: 12m2
9. steam consumption: 305kg/h
10. recycle water consumption: 12T/h
11. size: 4500*1000*3000mm
Samples of mechanical equipment can be provided for our customers' checking and confirmation before mass production. The product has high sensitivity to quickly respond to users' operation.
Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of mechanical equipment which is specialized in producing and designing chemical reactor. The product has high sensitivity to quickly respond to users' operation.
