high-quality form fill seal packaging machines for business for reaction
| Trademark | JINZONG | Transport Package | Wooden Case |
| Specification | glass | Origin | Guangdong |
| HS Code | 8401100000 |

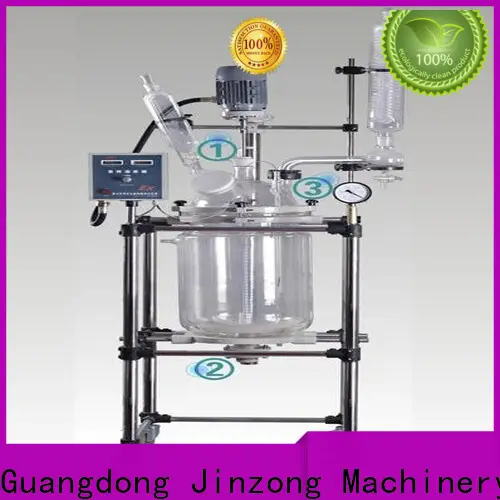

Glass Jacketed Reactors for Lab
Features:
User friendly operations
Durability
Unmatchable quality
500mL to 200L working volume is optional.
Glass jacket Reactor with heating and cooling source circulating in jacket.
Stirrer Drive: Non-Flameproof or Flameproof Motor, 50-680 RPM with speed regulator.
Stirrer material of construction: Glass or PTFE Lined.
Stirrer shape: Glass Impeller Stirrer with PTFE Blades, Vortex Stirrer, propeller stirrer & anchor stirrer.
Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal.
Supporting Structure: Carbon Steel, Epoxy coated Carbon Steel, Stainless Steel 304 & Stainless Steel 316. All structure are available in Trolley mounted form.
Closing Valve: Drain Valve or Flush Bottom Outlet Valve.
It's applied for heating and cooling synthesis reaction in vacuum condition.
Product Description:
We are dedicatedly engaged in offering a qualitative range of Glass Jacketed Reactors. Our offered product is manufactured using premium quality raw material in order to maintain its adherence its globally set standards.
We are dedicatedly engaged in offering a qualitative range of Glass Jacketed Reactors. Our offered product is manufactured using premium quality raw material in order to maintain its adherence its globally set standards.
Features:
User friendly operations
Durability
Unmatchable quality
Glass jacket Reactor with heating and cooling source circulating in jacket.
Stirrer Drive: Non-Flameproof or Flameproof Motor, 50-680 RPM with speed regulator.
Stirrer material of construction: Glass or PTFE Lined.
Stirrer shape: Glass Impeller Stirrer with PTFE Blades, Vortex Stirrer, propeller stirrer & anchor stirrer.
Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal.
Supporting Structure: Carbon Steel, Epoxy coated Carbon Steel, Stainless Steel 304 & Stainless Steel 316. All structure are available in Trolley mounted form.
Closing Valve: Drain Valve or Flush Bottom Outlet Valve.
It's applied for heating and cooling synthesis reaction in vacuum condition.
Reflux, distillation under vacuum, separation, rectification, crystallization are also available with related
configuration.
It is an ideal equipment for chemistry, fine-chemical,bio-pharmaceuticals, and the synthesis, test, and
production of new materials.
The reactor can connect circulating water vacuum pump, diaphragm vacuum pump, chiller / low
temperature circulator, heating and heating and cooling circulating device.
configuration.
It is an ideal equipment for chemistry, fine-chemical,bio-pharmaceuticals, and the synthesis, test, and
production of new materials.
The reactor can connect circulating water vacuum pump, diaphragm vacuum pump, chiller / low
temperature circulator, heating and heating and cooling circulating device.
| Reaction volume | 10L |
| Jacket volume | 3L |
| Power supply | 220V/50/60Hz |
| Stirring speed | 50-680r/min |
| Max.torque | 200N. cm |
| LED Digital display | Temp. and speed digital display |
| Sealing spares | As a gift |
| Reflux system | Standard |
| Receiving Flask | 5-50l is optional |
| Heating type | jacketed heating |
| Product Keywords | glass reactor,glass kettle,double jacketed mixing tank |
This product brings an increase in accuracy and repeatability. As it is programmed to perform a task over and over again, the accuracy and repeatability compared to an employee is far greater. The product has a strong bearing capacity for heavy materials processing.
The efficiency of the worker will increase because he can work accurately and faster with the assistance of this product. The product has a strong bearing capacity for heavy materials processing.
