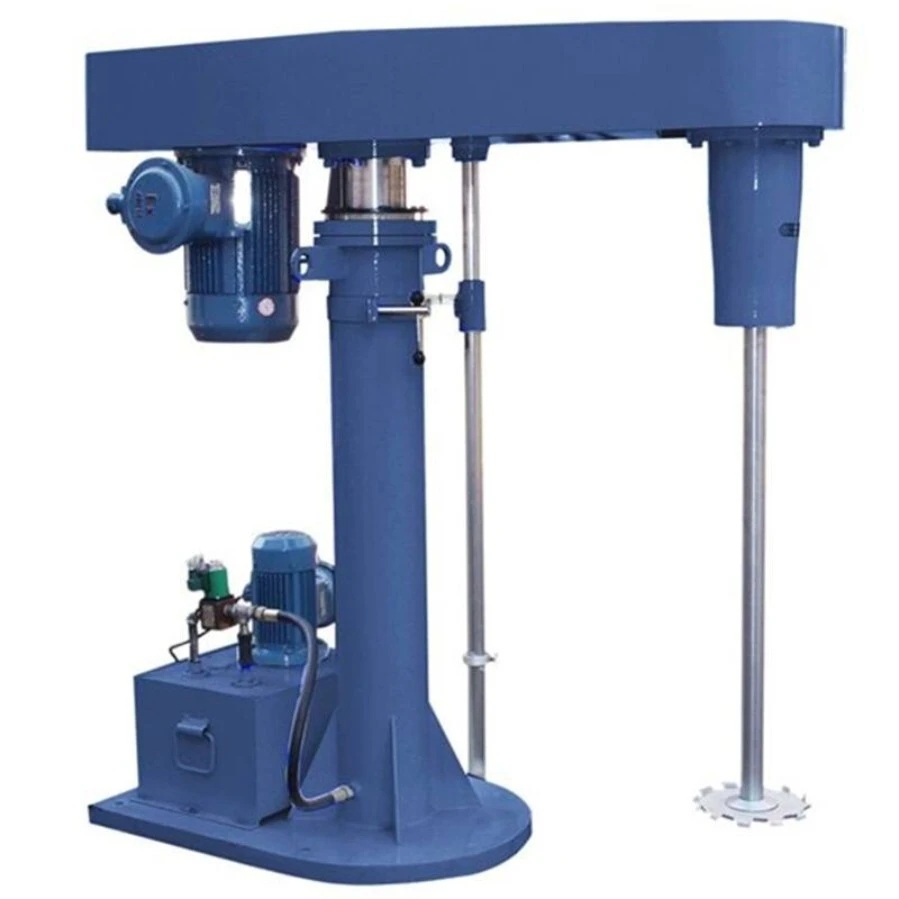

FS Series Hydraulic Lifting High Speed Disperser

*Description:

1. Introduction

    - For paint, coating, pigment, inks.

    - Combine milling and dispersing function.

    - Energy saving

    - High efficiency, easy operation, maintenance, cleanng and changing color.

    - Applicable for independent tank operation and high/ low viscosity paste.

2. Main Features

    - Configure with qualified Inverter, various speed control
    - Hydraulic lifting, can be moved around
    - Integrate dispersing and grinding in one process

3. Function selection
    - Imported or domestic top brand inverter for option

    - Custom-made design is available, such as Ex-proof, vacuum, sealed operation;

    - Belt or not clamping for optional.

*Product Application
The double shaft disperser is applied to the dissolution, mixing and dispersion of material in many industries such as painting, dyestuff, pigment, medical, paper, and other industries. Especially widely used in latex paint industry.

1, The construction industry: interior and exterior wall coating, cold porcelain paint, colorful paint, anti-corrosion, waterproof coating, flame retardant coating
2, stationery industry: ink, ink, pencil core, advertising color, oil painting
3, chemical industry: pigment, lubricating oil, spices, dyes, emulsified asphalt, emulsified rubber, catalyst, paint coating
4, the pharmaceutical industry: biological products, vaccines, creams, a variety of oral liquid
5, daily chemical industry:  toothpaste, shoe polish, jacket oil, cosmetics.

The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.
*Speed requriement
A) Speed type: Single, double, stepless, step(multi)
B) Single speed: Magnetic, frequency cobversion, reducer, shift belt.
C) Speed range: Low speed below 400rpm, high speed below 400-1200rpm, opecial speed over 1200rpm.
Dispersing disc type: Falt disc sawtooth, trident, butterfly, other type
Installation type: Floor stand, platform(platform frame)
Tank dismeter and dispersing wheel: 3-4: 1.
Motor and electric: Expiosion proof, common, special requipment.
