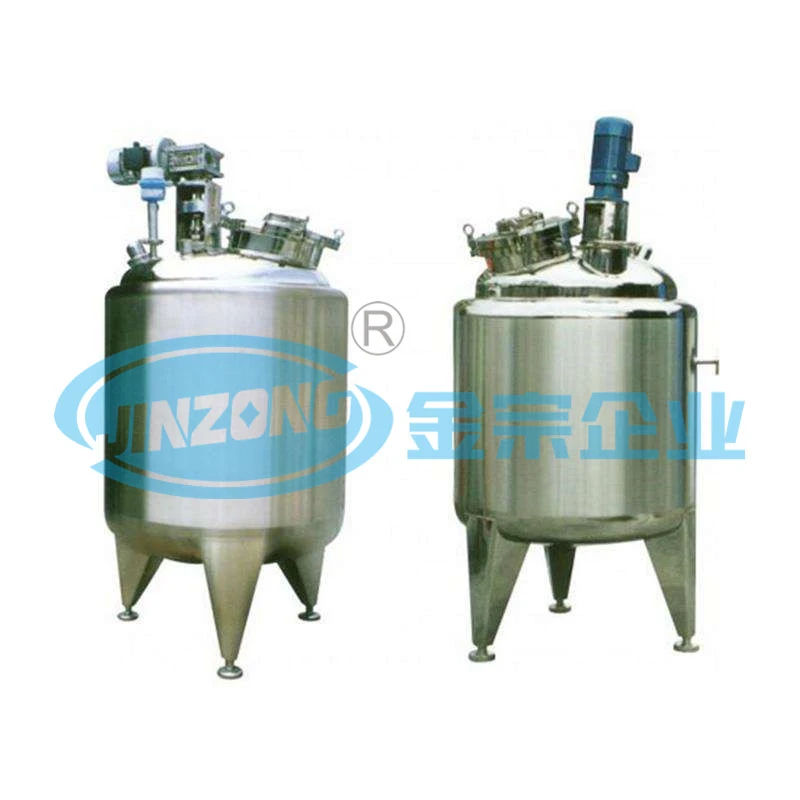

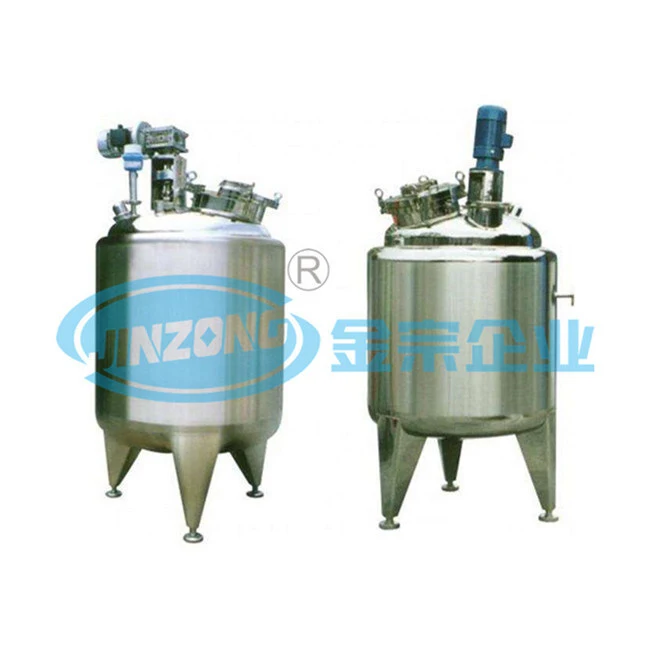

bacterium killing Pasteurization tank Heating and insulation mixing tank PasteurizerPasteurization tank is composed of inner layer, jacket, insulation layer, outer cover, reducer, mixing slurry and thermometer. It has the advantages of convenient operation, corrosion resistance, strong production capacity and convenient cleaning.Inner layer: made of 304 or 316L stainless steel with polished surface.
Middle layer jacket: made of SUS304, with spiral device of reinforcing ring, cold water from bottom to top (no pressure), to achieve the purpose of heating and cooling.
Insulation layer: it is made of stainless steel. Polyurethane or rock wool is used to keep the temperature with the outside to achieve the effect of heat preservation.
Reducer: cycloid pin gear reducer is fixed on the bracket in the beam. The output shaft of reducer wheel is connected with agitating paddle. Looper connection is adopted to facilitate disassembly and cleaning.
Thermometer: the specification is 0 ºC ~ 100 ºC. It is installed on the crossbeam and extends directly to the low medium position, so that the liquid material can also indicate the temperature when it is used at the low position, so as to achieve the purpose of sterilization and aging.
There are two pasteurization process commonly used:
1.to heat the milk to 62 ºC - 65 ºC and keep for 30min. This method can kill all kinds of growth type pathogenic bacteria in milk, and the sterilization efficiency can reach 97.3% - 99.9%. After disinfection, only a part of thermophilic bacteria, heat-resistant bacteria and spores are left, but most of these bacteria are lactic acid bacteria, which are not only harmless to people, but also beneficial to health;
2. to heat the milk to 75 ºC - 90 ºC and keep for 15s-16s, which can shorten the sterilization time More efficient.
The basic principle of sterilization is that just kill the pathogen will be alright , if the temperature is too high, there will be more nutrition loss.
Application:
Pasteurization tank is widely used in the heating, mixing, cooling and heat preservation of materials in beverage, wine, milk, food, dairy, seasoning, grease, pigment and other industries
Pasteurization tank can be used as detoxification tank, mixing tank, temporary storage tank, batching tank, etc. Pasteurization tank is widely used in dairy industry, food, pharmaceutical, chemical industry, beverage and other industrial sectors. As a necessary equipment for heating, cooling, heat preservation, sterilization treatment or slurry storage, pasteurization tank is especially suitable for pasteurization and heat preservation of milk.
