anti-corossion reactor heat for chemical industry Jinzong Machinery
1. Our design team have been endowing automatic control system with their own innovations which keeps up with the trend. Made of stainless steel, it is highly durable
2. Guangdong Jinzong Machinery Co., Ltd. will make full preparation for outer package of automatic control system . The product is highly automatic and controllable
3. The service life of this product is longer than the market average. The product works under an effective ERP system
The heat exchanger is used for heat transfer between the material . With this device so that the material can reach the specified temperature to meet the technical requirements. Using a combination of various heat exchanger, can use a variety of levels of energy fully and rationally, so that reduce unit product energy consumption, thereby reducing the cost of the product to get good value .
Heat exchanger can be divided into two categories according to the device structure namely,plate-and-frame type heat exchanger and shell and tube heat exchanger. Chip plate heat exchanger is combination of plate-fin and shell-type spiral.Shell and tube heat exchanger is a compostion of shell and tube plate devices.

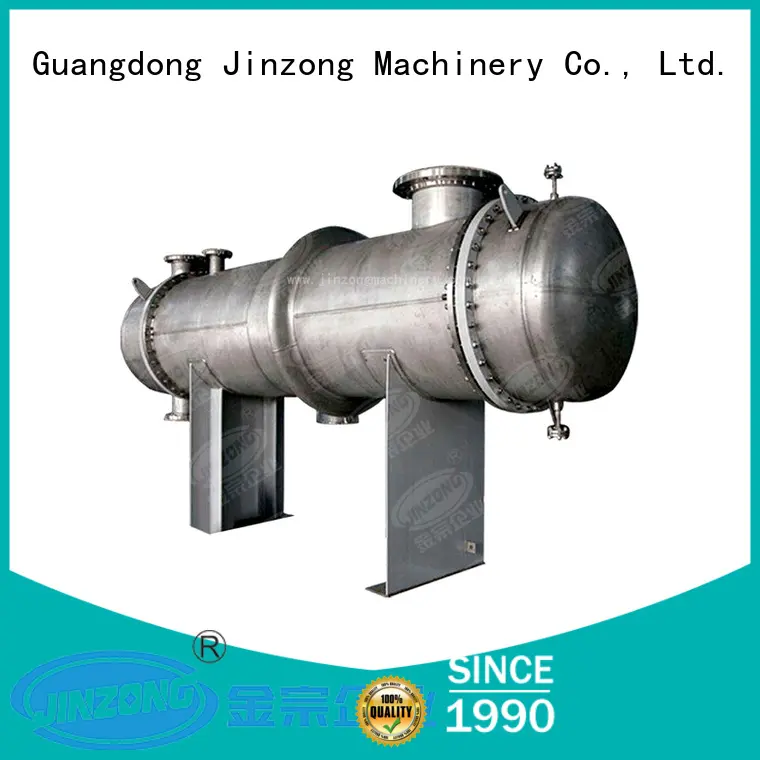

The tubular condenser produced by our factory is divided into three types according to the material: carbon steel tubular condenser, stainless steel tubular condenser and carbon steel and stainless steel mixed tubular condenser. According to the form, it is divided into fixed tubesheet type, floating head type and U-tube heat exchanger. According to the structure, it is divided into single tube, double tube and multi-tube. Heat transfer area is 0.5-500 m2, which can be customized according to user's needs.
| Diameter (mm) | Number of tubes | Tube quantity | Heat exchanger Nominal value/calculated value | Flow speed :0.5m/sec Flow: m/hr | Pressure | |||||
| Tube length (m) | φ25×2.5 | |||||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | φ25×2 | |||||
| 159 | 1 | 14 | 1.51.62 | 22.17 | 33.27 | 0.0044/ 0.0049 | 7.92/8.82 | 0.25 | ||
| 219 | 1 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.1 | 0.0082/0.0090 | 14.76/16.20 | 0.6 | |
| 2 | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.81 | 0.0041/0.0045 | 7.38/8.01 | 1.0 | ||
| 273 | 1 | 44 | 5/5.08 | 7/5.18 | 10/10.26 | 14/13.72 | 21/20.63 | 0.0138/0.0152 | 24.84/27.36 | 1.6 |
| 2 | 40 | 5/4.62 | 6/6.19 | 9/9.33 | 12/12.47 | 19/18.76 | 0.0063/0.0069 | 11.24/12.42 | 2.5 | |
| 325 | 1 | 60 | 7/6.93 | 9/9.28 | 14/14.00 | 19/18.71 | 28/28.13 | 0.0188/0.0208 | 33.84/37.44 | 0.6 |
| 2 | 56 | 6/6.47 | 9/8.66 | 13/13.05 | 17/17.46 | 36/26.26 | 0.0088/0.0097 | 15.84/17.46 | 1.0 | |
| 400 | 1 | 119 | 14/13.47 | 18/18.41 | 28/27.76 | 37/37.10 | 55/55.8 | 0.0374/0.0412 | 67.32/74.16 | 1.6 |
| 2 | 110 | 13/12.70 | 17/17.02 | 26/25.66 | 34/34.20 | 50/51.58 | 0.0173/0.0190 | 31.14/34.20 | 2.5 | |
| 500 | 1 | 185 | 45/4.15 | 55/57.68 | 85/86.74 | 0.0581/0.0641 | 104.58/115.38 | |||
| 2 | 180 | 40/41.99 | 55/57.68 | 85/86.74 | 0.0283/0.0312 | 50.94/56.16 | ||||
| 600 | 1 | 269 | 60/62.7 | 85/83.88 | 125/126.13 | 0.0845/0.0932 | 152.10/167.76 | |||
| 2 | 266 | 60/32.05 | 80/82.94 | 125/14.72 | 0.0418/0.0461 | 75.24/83.98 | ||||
| 700 | 1 | 379 | 90/88.41 | 120/118.17 | 175/177.71 | 0.0091/0.1313 | 214.38/236.34 | |||
| 2 | 358 | 85/83.51 | 110/111.62 | 165/167.85 | 0.0562/0.0620 | 101.16/111.60 | ||||
| 800 | 1 | 511 | 120/119.20 | 160/159.16 | 240/239.60 | 0.1605/0.1770 | 288.90/318.60 | |||
| 2 | 488 | 115/113.83 | 150/152.16 | 230/228.81 | 0.0767/0.0845 | 138.06/152.10 | ||||
| 900 | 1 | 649 | 150/151.39 | 200/202.36 | 305/304.3 | 0.2039/0.2248 | 367.02/404.46 | |||
| 2 | 630 | 145/146.96 | 195/196.44 | 295/295.40 | 0.0990/0.1091 | 178.20/196.38 | ||||
| 1000 | 1 | 805 | 185/187.78 | 250/251.00 | 375/377.45 | 0.2529/0.2788 | 455.22/501.74 | |||
| 2 | 792 | 185/184.75 | 245/246.95 | 370/371.36 | 0.1244/0.1374 | 223.92/246.96 | ||||
Company Features
1. By adhering to high quality, Guangdong Jinzong Machinery Co., Ltd. has become a reliable producer of automatic control system .
2. Guangdong Jinzong Machinery Co., Ltd. has a strong R&D team and top class management force.
3. Guangdong Jinzong Machinery Co., Ltd. thinks that anti-corossion reactor is the best way to guarantee its development. Please contact.
