Layout Type | Verticle | Mixing Drum Shape | Conical |
Additional Capabilities | Milling | Operating type | Continuous Operating |
Condition | New | Trademark | Jinzong |
Transport Package | Wooden Case | Specification | Customer design |
Origin | Guangzhou | HS Code | 8479820090 |
Powder feeding system | Automatic type or semi-auto type |
Liquid feeding system | Automatic type or semi-auto type |
Low speed agitating system: | with tank &reactor or lifting system |

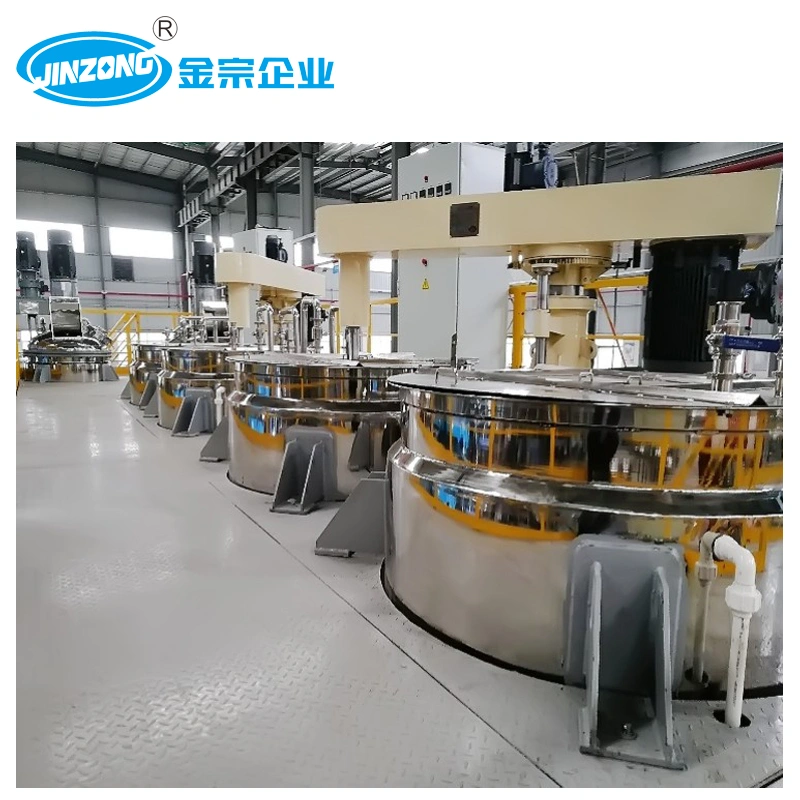

Dispersing system: | Adopt one disperser with several tanks to enhance the efficiency and to save time. Electrical steering design is easy and convenient to operate. Or customized |
Grinding system: | Adopts series Horizontal Bead Mill. Required fineness can be obtained after one time circulation. For grinding color paste, Basket beads Mill or Horizontal Bead Mill (Pin type) are optional |
Filtration system: | Two kinds of filters: Bag type and Vibration type. They are optional according to different products. |
Filling system: | Two kinds of filling machines: Automatic one and Semi-automatic one. Various packing specification from 0.5L to 1000L are optional. |

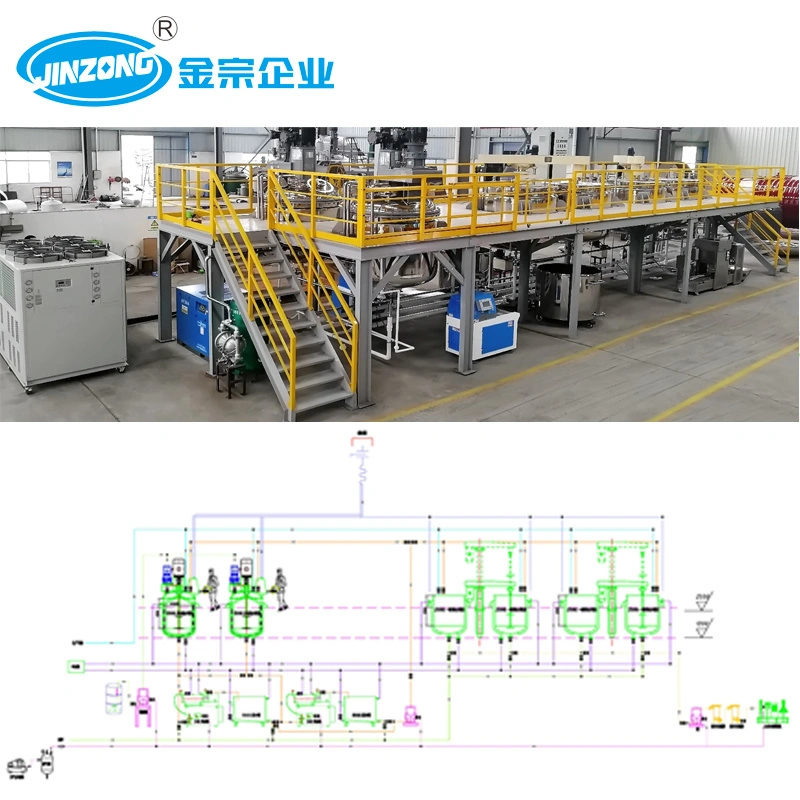

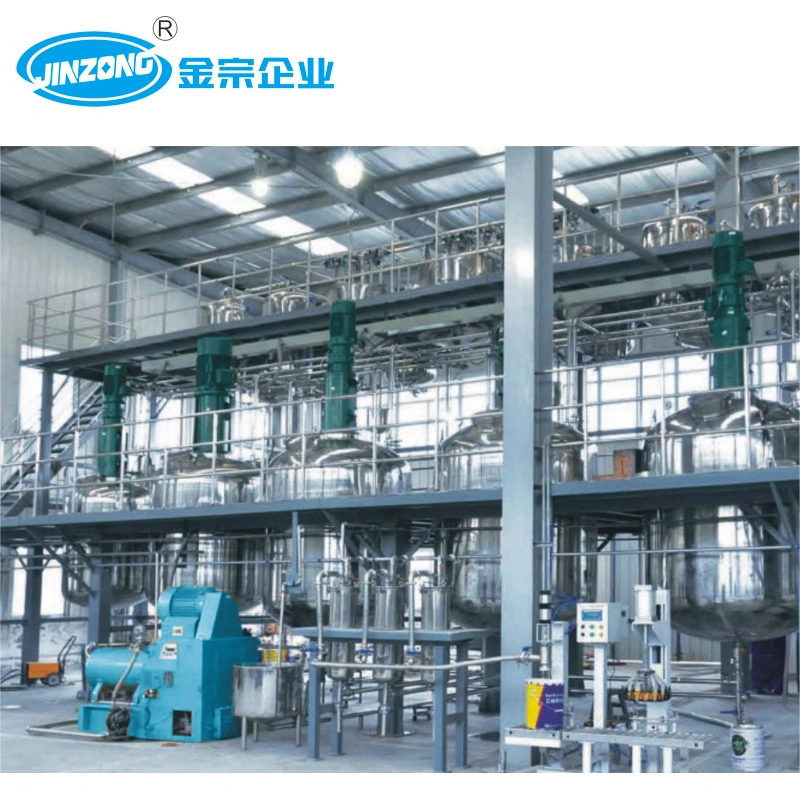

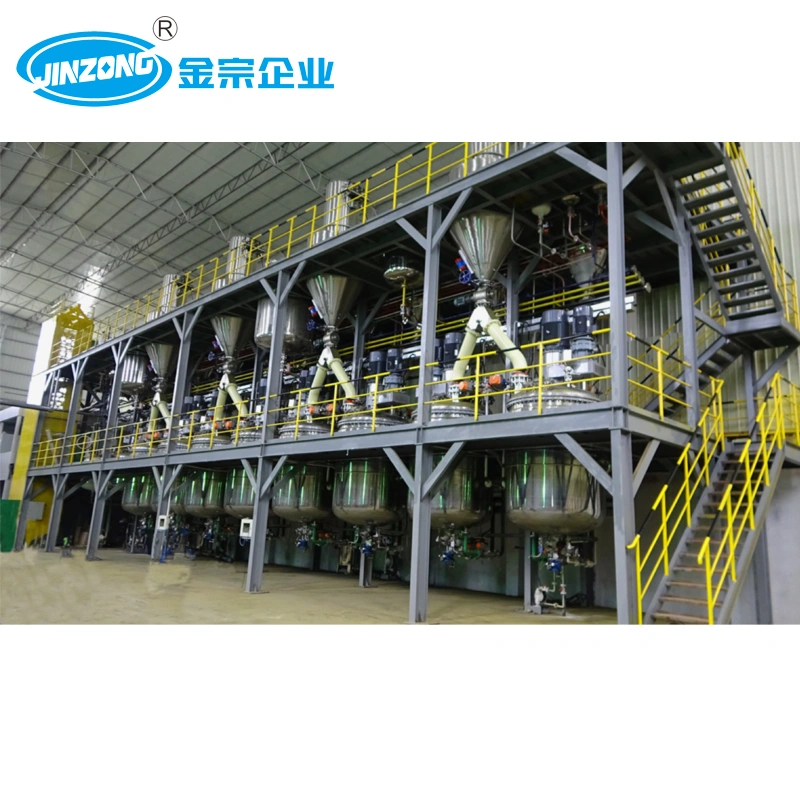

Working platform: | It can be one floor, two floors, or three floors. The disperser can be placed on the top floor, grinding machine on the second floor and tinting machine on the first floor, top-to-down flow to reduce the residue inside the pipeline effectively. |
Control System: | Touch Screen, host computer, PLC control. |
Type | 500L | 1000L | 2000L | 3000L | 4000L | 5000L | 6000L |
Motor power(kw) | 5.5 | 11 | 22 | 30 | 45 | 55 | 110 |
Capacity(L) | 500L | 1000L | 2000L | 3000L | 4000L | 5000L | 6000L |
Rotation speed(rpm) | 0~1400 | 0~1400 | 0~1400 | 0~960 | 0~960 | 0~960 | 0~960 |
Impeller dia.(mm) | 200 | 250 | 350 | 350 | 450 | 450 | 600 |
Quantity of impeller | 1 | 1 | 1 | 2 | 2 | 2 | 3 |
Function selection
-Imported or domestic top brand inverter for option
-Custom-made design is available, such as Ex-proof, vacuum, sealed operation.
-Belt or not clamping for optional
Product Usages
Vacuum High Speed Disperser is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.

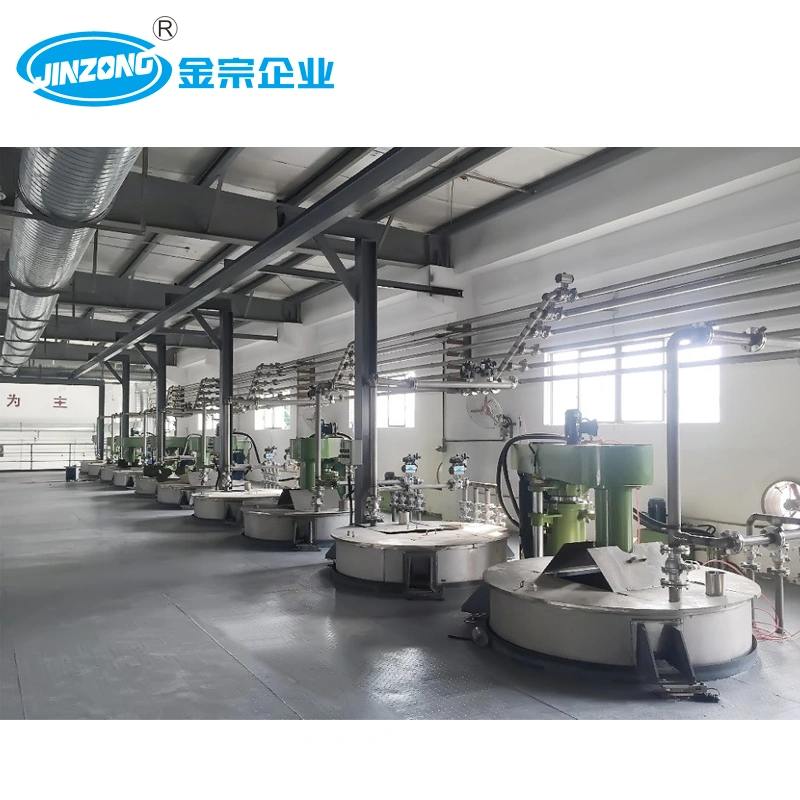

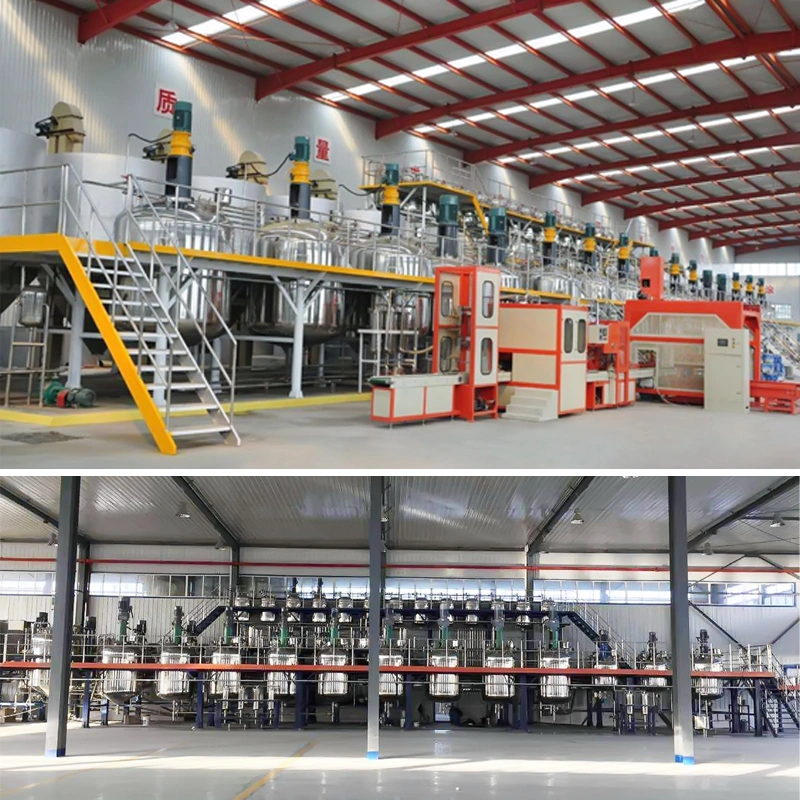

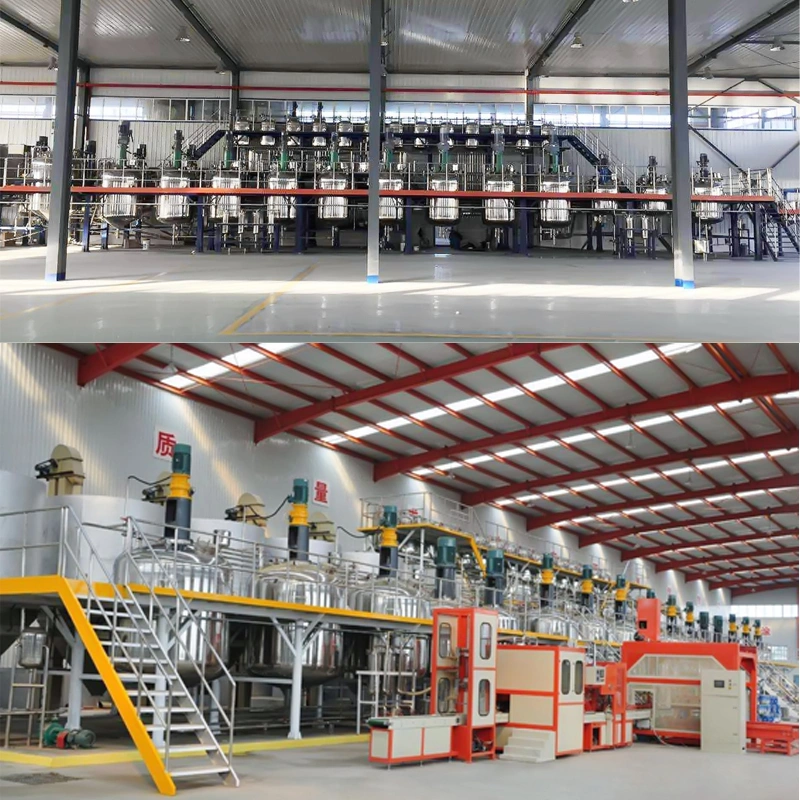

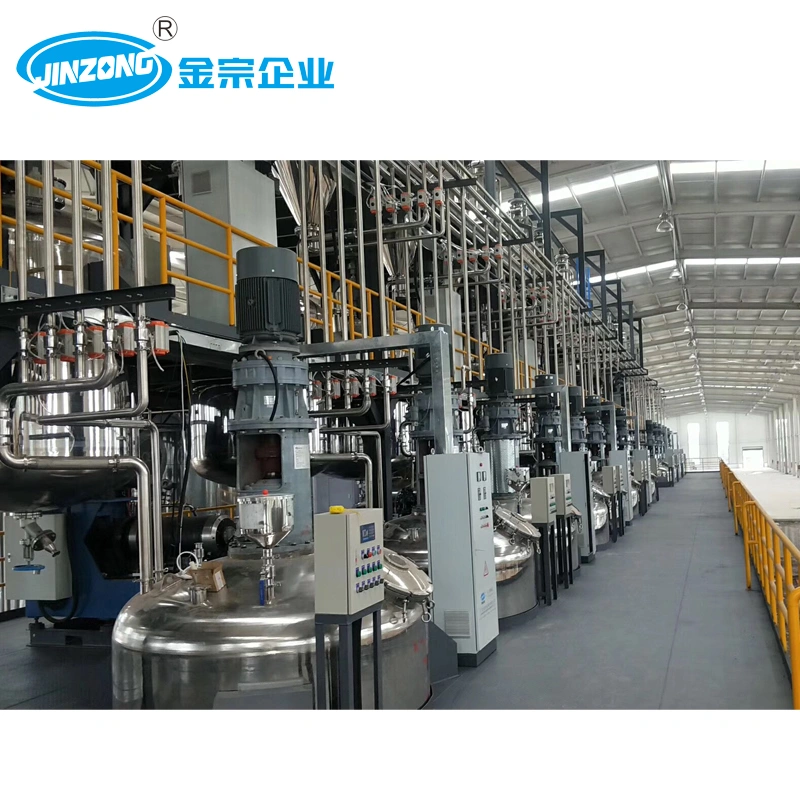

Water Based Paint Dispersing Tank Project

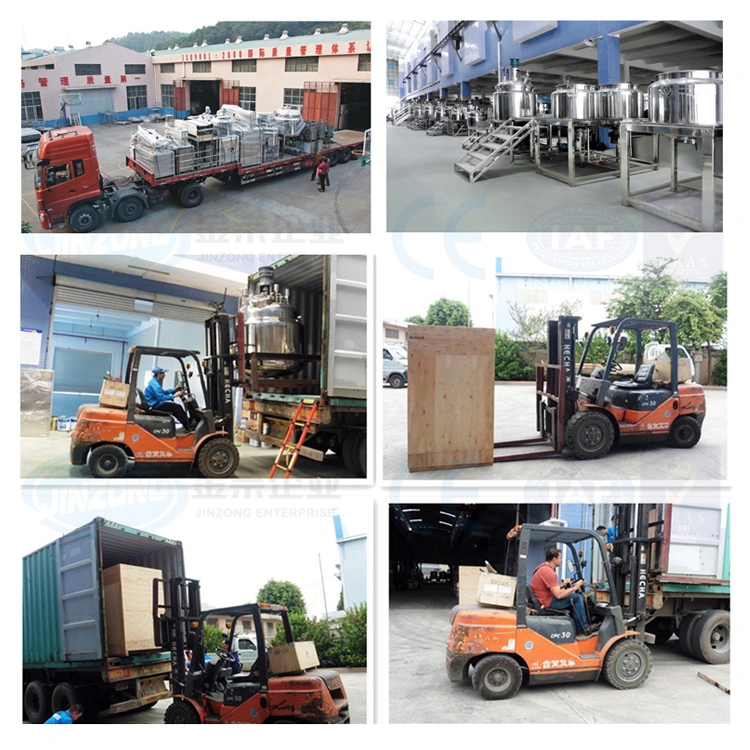

Packaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
-Engineers avaiable to service machinery overseas
- Technological support
- Guarantee: 1 year
- Custom-make is ok for us
6.1. Pre-sale service
Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.
a. Select equipment model
b. Design and manufacturer products according to client's special requirements.
c. Train technical persnonal for clients
6.2. Service during the sale
a. Pre-check and accept products adhead of delivers
b. Send photos of machines every week and send testing video
c. Help clients to draft solving plans
6.3. After-sales services
Provide considerate services to minimize client's worries
a. Assist client to prepare for the first project.
b. Install and debug the equipment
c. Train initiative to eliminate the trouble rapidly
d. Provide technical replacement
e. After-sales team will solve problems via operating and provide technical instruction
6.4. Warranty
The warranty is 12 months
Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge
We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.
*About us:
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
*Our strength
1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.
5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
