100000 Tons Annnal Output Automotive Paint Production Line
| Layout Type | Verticle | Mixing Drum Shape | Conical |
| Additional Capabilities | Milling | Operating type | Continuous Operating |
| Condition | New | Name | 1000L Vacuum High Speed Disperser Tank |
| Function | Vacuum,Dispersing,Cooling | Type | Hydraulic Lifting |
| Trademark | Jinzong | Transport Package | Wooden Case |
| Specification | Customer design | Origin | Guangzhou |
| HS Code | 8479820090 |
Composed of complete paint production line:
| Powder feeding system | Automatic type or semi-auto type |
| Liquid feeding system | Automatic type or semi-auto type |
| Low speed agitating system: | with tank &reactor or lifting system |
| Dispersing system: | Adopt one disperser with several tanks to enhance the efficiency and to save time. Electrical steering design is easy and convenient to operate. Or customized |
| Grinding system: | Adopts series Horizontal Bead Mill. Required fineness can be obtained after one time circulation. For grinding color paste, Basket beads Mill or Horizontal Bead Mill (Pin type) are optional |
| Filtration system: | Two kinds of filters: Bag type and Vibration type. They are optional according to different products. |
| Filling system: | Two kinds of filling machines: Automatic one and Semi-automatic one. Various packing specification from 0.5L to 1000L are optional. |

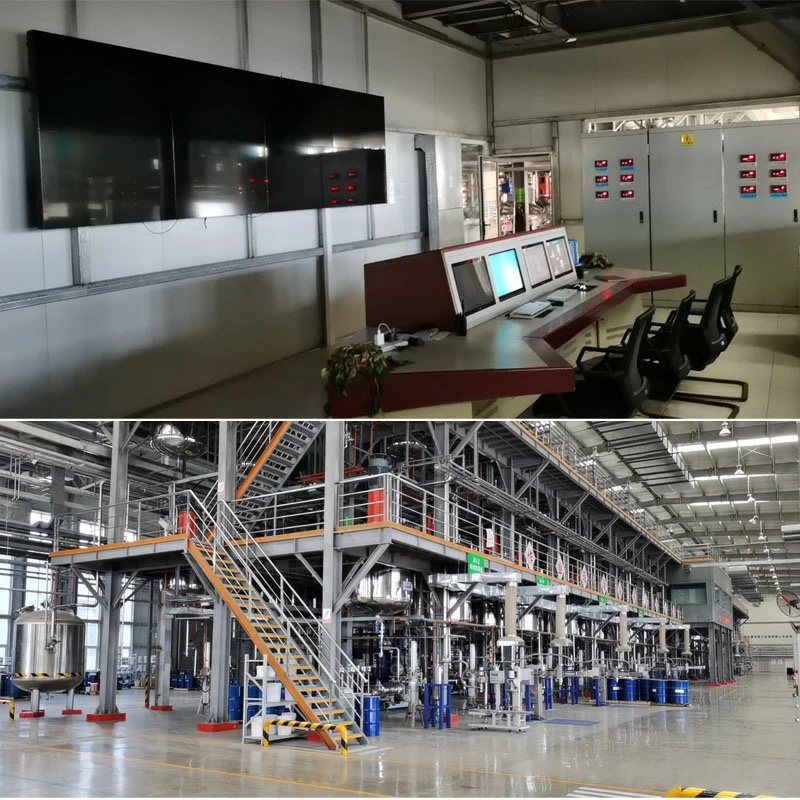

| Working platform: | It can be one floor, two floors, or three floors. The disperser can be placed on the top floor, grinding machine on the second floor and tinting machine on the first floor, top-to-down flow to reduce the residue inside the pipeline effectively. |
| Control System: | Touch Screen, host computer, PLC control. |
The whole set of production line includes feeding system, outlet system, filtering system, paint mixing system, cooling system, pipeline system, electrical control system, operating platform and filling system.
1. Introduction
-Equipment for pre-mixing the solid-liquid or liquid-liquid raw materials, used for as stirrer, blender, disperser and others.
-For paint, coating, pigments, inks, detergent, lithium anode paste, textile auliliary, etc.
-Conbine milling and dispersing funciton.
-High efficiency, easy operation, maintence, cleaning and changing color.
-Applicable for independent tank operation an high/low viscosity paste.
2. Main Features
- Configure with qualified inverter, various speed control
- Hydraulic lifting, can be moved around
-Integrate dispersing and grinding in on process
-Vacuum,jacket cooling
3. Function selection
-Imported or domestic top brand inverter for option
-Custom-made design is available, such as Ex-proof, vacuum, sealed operation.
-Belt or not clamping for optional
4. Product Usages
Vacuum High Speed Disperser is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.
5. Packaging & ShippingPackaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
-Engineers avaiable to service machinery overseas
- Technological support
- Guarantee: 1 year
- Custom-make is ok for us
6.1. Pre-sale service
Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.
a. Select equipment model
b. Design and manufacturer products according to client's special requirements.
c. Train technical persnonal for clients
6.2. Service during the sale
a. Pre-check and accept products adhead of delivers
b. Send photos of machines every week and send testing video
c. Help clients to draft solving plans
6.3. After-sales services
Provide considerate services to minimize client's worries
a. Assist client to prepare for the first project.
b. Install and debug the equipment
c. Train initiative to eliminate the trouble rapidly
d. Provide technical replacement
e. After-sales team will solve problems via operating and provide technical instruction
6.4. Warranty
The warranty is 12 months
Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge
We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.
