Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line

Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.JZLayout TypeVerticle
Mixing Drum ShapeConicalAdditional CapabilitiesMilling
Operating typeContinuous OperatingConditionNew
NameVacuum MixerFunctionVacuum,Dispersing,Cooling
TrademarkJinzongTransport PackageWooden Case
SpecificationCustomer designOriginGuangzhou
HS Code8479820090
Full automatic Real stone paint making machine,texture paint machine,multi-color paint production line
Jinzong mixing machine for Turn-key project of all kinds of paint,coatings,ink

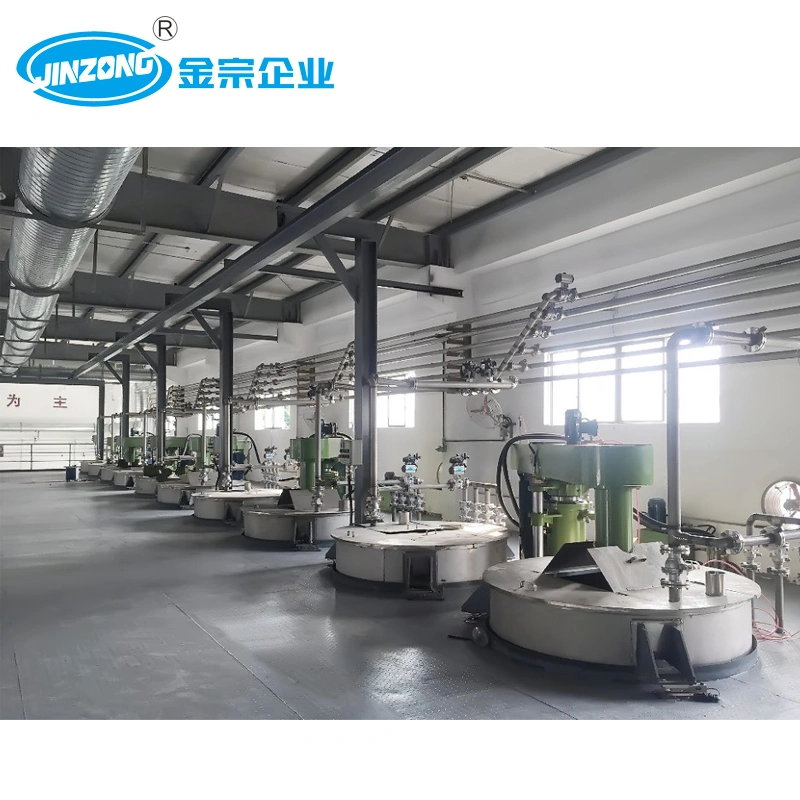

The paint production plant is mainly composed of powder raw material feeding system(
 Raw Material/Charging/Batching- Silo/Powder Storage Tanks,powder transfering system),liquid raw material feeding system(Liquid Raw Material Storage/Charging/Batching,liquid transfering system),traffic paint mixing & dispersing tank,traffic paint storage tank,traffic paint filtering system,traffic paint filling machine,and automatic control system,pipeline system,etc.

Composed of complete paint production line:
Powder feeding systemAutomatic type or semi-auto type
Liquid feeding systemAutomatic type or semi-auto type
Low speed agitating system:with tank &reactor or lifting system
Dispersing system:Adopt one disperser with several tanks to enhance the efficiency and to save time. Electrical steering design is easy and convenient to operate. Or customized
Grinding system:Adopts series Horizontal Bead Mill. Required fineness can be obtained after one time circulation. For grinding color paste, Basket beads Mill or Horizontal Bead Mill (Pin type) are optional
Filtration system: Two kinds of filters: Bag type and Vibration type. They are optional according to different products.
Filling system:Two kinds of filling machines: Automatic one and Semi-automatic one. Various packing specification from 0.5L to 1000L are optional.

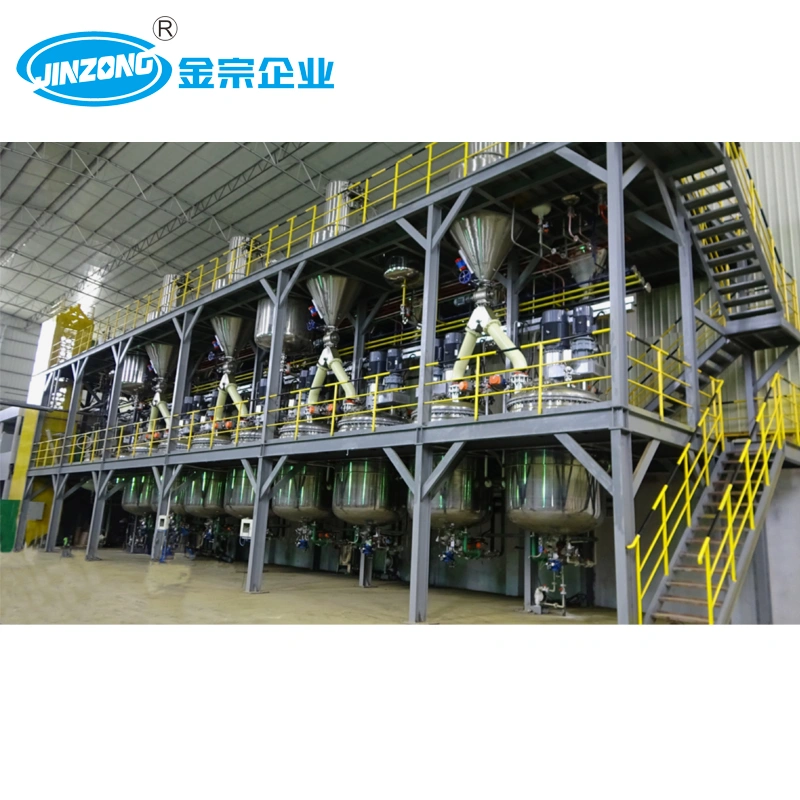

Working platform:It can be one floor, two floors, or three floors. The disperser can be placed on the top floor, grinding machine on the second floor and tinting machine on the first floor, top-to-down flow to reduce the residue inside the pipeline effectively.
Control System:Touch Screen, host computer, PLC control.



Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line

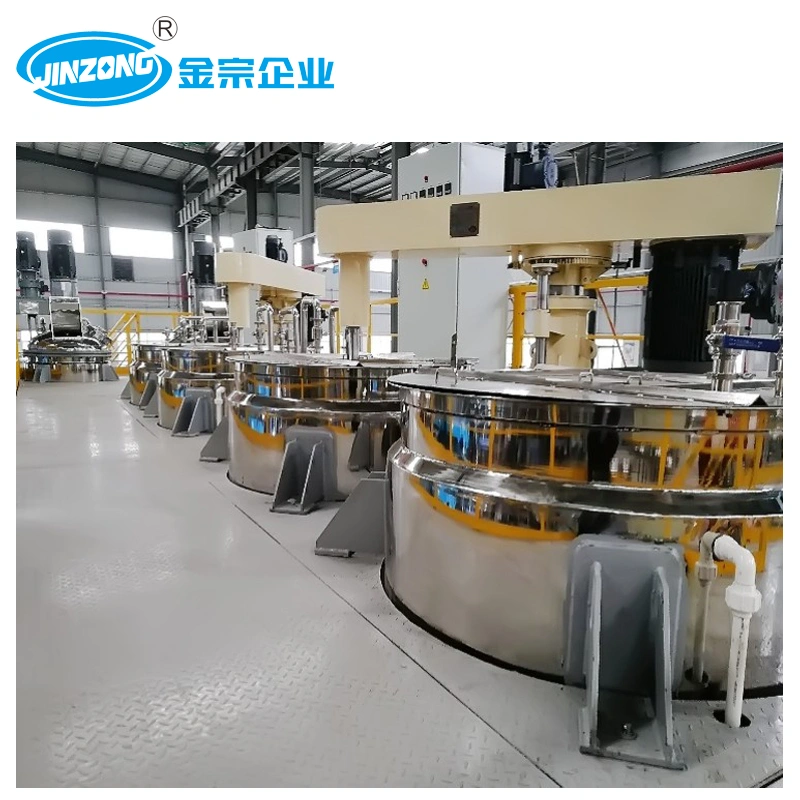

Paint Dispersing Tank


It's suitable for the matching and mixing of the color paints&coatings industry,as well as the mixing of liquid-liquid, liquid-solid materials in other industries.

With a reasonable structure and strong stirring function, this machine can match and mix paints evenly and mix materials very well.Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line


Paint Dispersing Tank Parameters
Type500L1000L2000L3000L4000L5000L6000L
Motor power(kw)5.51122304555110
Capacity(L)500L1000L2000L3000L4000L5000L6000L
Rotation speed(rpm)0~14000~14000~14000~9600~9600~9600~960
Impeller dia.(mm)200250350350450450600
Quantity of impeller1112223


 Paint Dispersing Tank Introduction
 -Equipment for pre-mixing the solid-liquid or liquid-liquid raw materials, used for as stirrer, blender, disperser and others.
-For paint, coating, pigments, inks, detergent, lithium anode paste, textile auliliary, etc.
-Conbine milling and dispersing funciton.
-High efficiency, easy operation, maintence, cleaning and changing color.
-Applicable for independent tank operation an high/low viscosity paste.

Function selection

-Imported or domestic top brand inverter for option

-Custom-made design is available, such as Ex-proof, vacuum, sealed operation.

-Belt or not clamping for optional

Product Usages

Vacuum High Speed Disperser is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.

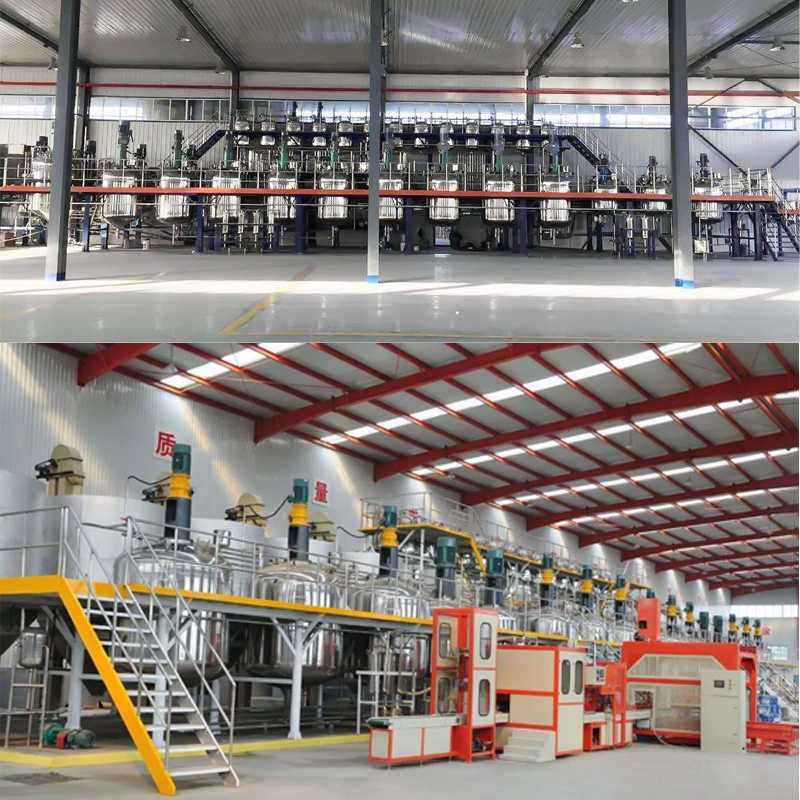

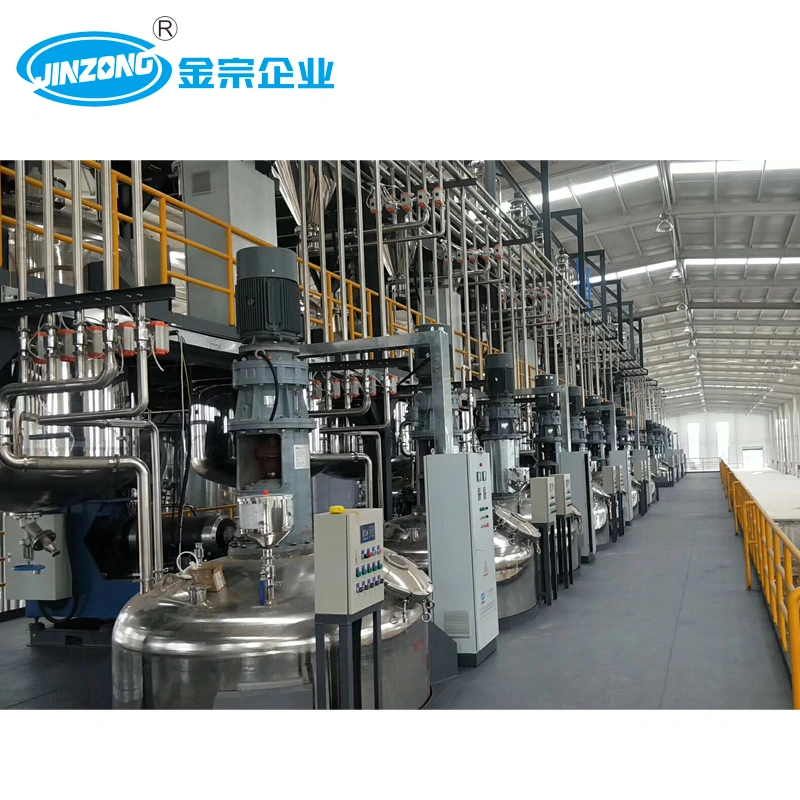

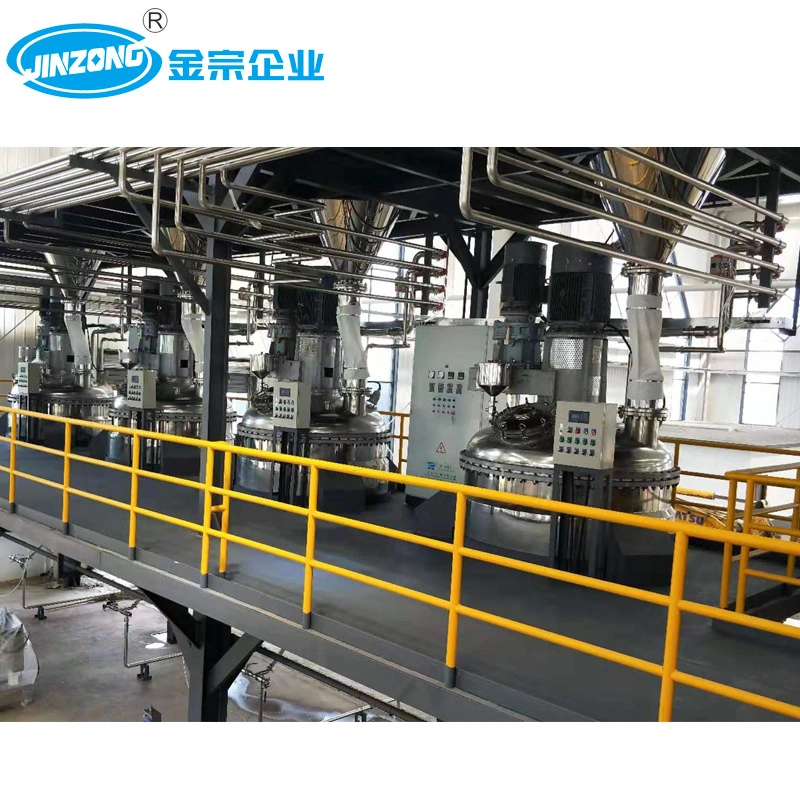

Water Based Paint Dispersing Tank Project
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line

5. Packaging & Shipping

Packaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall

6.Our Services

 -Engineers avaiable to service machinery  overseas

- Technological support

- Guarantee: 1 year

- Custom-make is ok for us

6.1. Pre-sale service

Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.

a. Select equipment model

b. Design and manufacturer products according to client's special requirements.

c. Train technical persnonal for clients

6.2. Service during the sale

a. Pre-check and accept products adhead of delivers

b. Send photos of machines every week and send testing video

c. Help clients to draft solving plans

6.3. After-sales services

Provide considerate services to minimize client's worries

a. Assist client to prepare for the first project.

b. Install and debug the equipment

c. Train initiative to eliminate the trouble rapidly

d. Provide technical replacement

e. After-sales team will solve problems via operating and provide technical instruction

6.4. Warranty

The warranty is 12 months

Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge

We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.


*About us:
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of  cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill,  filling machine etc.
2> Chemical Machinery:  reactor, mixing equipment, separation equipment, storage tank, disperser, mill  etc.
3> Biological and Pharmaceutical  Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line

*Our strength
1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate.  We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.

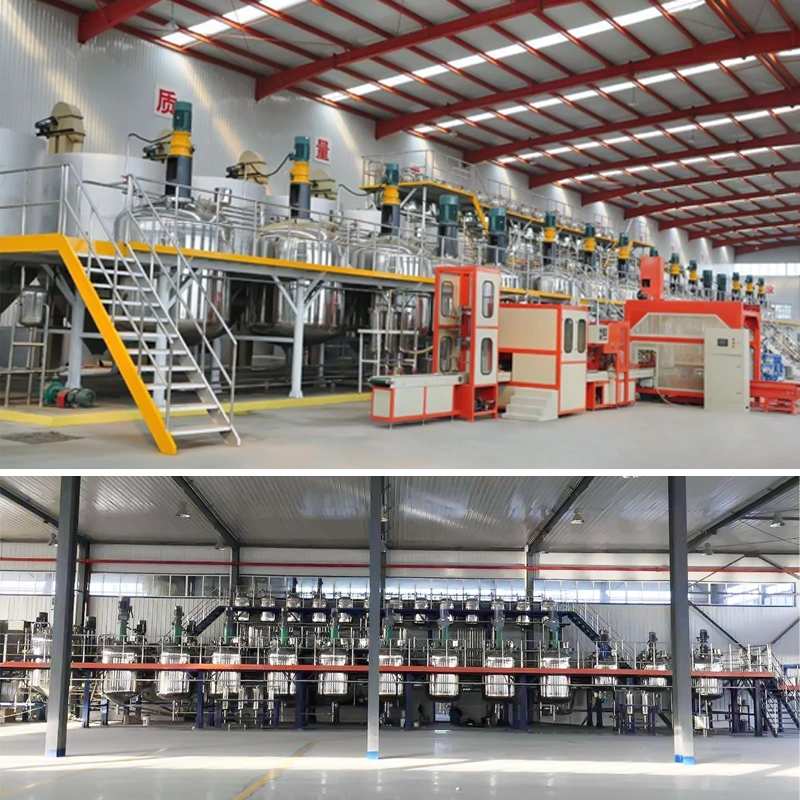

5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line

*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to  abroad  installation and debugging.

*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services

*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
Real Stone Paint Making Machine, Texture Paint Machine, Multi-Color Paint Production Line



The product is a safe choice for most workers. It can reduce human intervention mistakes or even dangerous phenomenons caused by malfunction. The product is characterized by a high running speed. Thanks to its fully advanced operation system, the product effectively cuts down the labor costs as there are fewer workers involved. The product is characterized by a high running speed.
