Toothpaste Tubr Filling and Sealing Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model NO. | JGS series | Packaging Material Mechanical Properties | Full Automatic Filling and Sealing Machine |
| Material Type | Liquid | Filling and Sealing Machine | for Aluminium Tube or Plastic Tube |
| Model | Automatic or Semi-Automatic | Material | Full Stainless Steel |
| Trademark | Jinzong Machine | Specification | CE |
| Origin | Guangdong, China |
1.Technical parameter of toothpaste tube filing and sealing machine:
Characteristic:
The control parts of the machine are composed of intelligent Man-computer interface, large touch screen display control panel, including temperature setting, motor speed, filling speed, direct screen display, screen display and screen control.The components of the machine which touched the filling material are made of stainless steel SUS304 or SUS316L. Transparent cover feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, atuto-stop, process of hose-feeding and setting, filling and sealing, the ejecting are all auto manically controlled. Digital count device is the filling head is put inside the material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are avaiable to meet different need of clients.

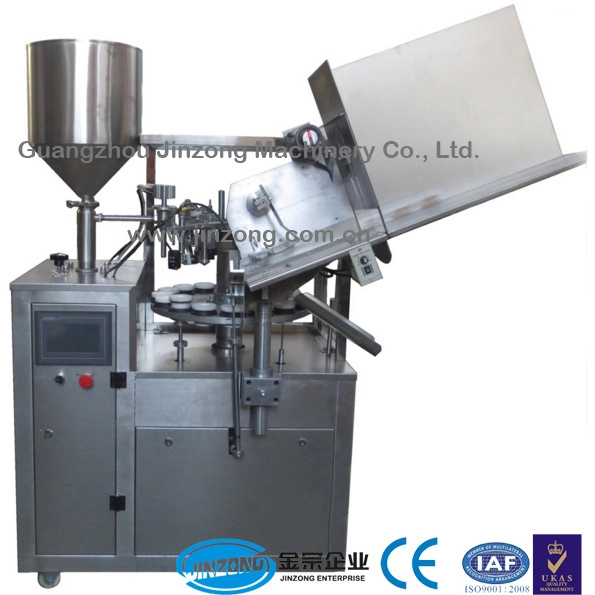

Toothpaste tube filing and sealing machine Product Description:
Tube filling and sealing machine plastic tube filling and sealing machine Description
this machine is use for tube filling and sealing machine, it applies chocolate jam, ketch up, cheese, cream,
cosmetic, Mayonnaise, tooth paste, jelly etc high viscosity product, will be use in tube package.
2.Tube filling and sealing machine Main Specification:

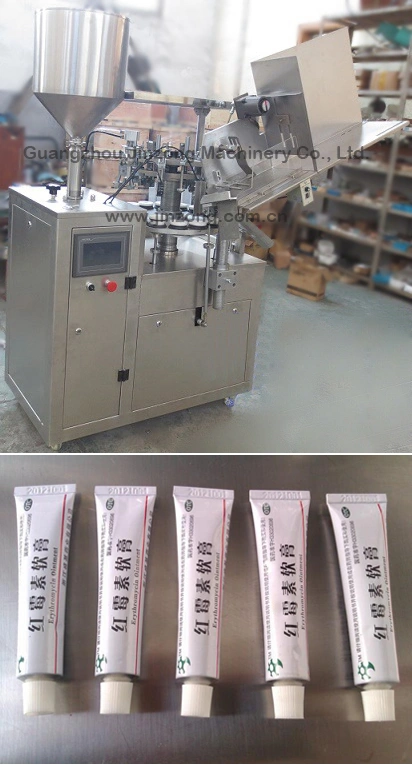

3.Semi-Automatic aluminium tube filling and sealing machine
Automatic tube filling and folding tail machine is designed and manufactured according to the latest developed foreign advanced technology and the actual situation of China. All parts contacted with material are made of stainless steel, this machine is special for aluminium tube filling and sealing, automatic filling tubes can be done automatically, folding tail and output, the maximum operating speed of 40 pic/ min, frequency control. Filling accuracy is 1%.
Characteristics:
The machine sealing part: aluminum side after three or five fold, coding, automatic code print. In order to avoid leakage, we adopts Japanese import sealing ring for this machine. The whole machine has advanced structure, advanced configuration, convenient operation, convenient maintenance, easy to clean, and so on. In addition, the cam is located in the table to facilitate the replacement of aluminum species.
Specification:
Touch screen controlle
Optional:
Characteristic:
The control parts of the machine are composed of intelligent Man-computer interface, large touch screen display control panel, including temperature setting, motor speed, filling speed, direct screen display, screen display and screen control.The components of the machine which touched the filling material are made of stainless steel SUS304 or SUS316L. Transparent cover feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, atuto-stop, process of hose-feeding and setting, filling and sealing, the ejecting are all auto manically controlled. Digital count device is the filling head is put inside the material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are avaiable to meet different need of clients.
Toothpaste tube filing and sealing machine Product Description:
Tube filling and sealing machine plastic tube filling and sealing machine Description
this machine is use for tube filling and sealing machine, it applies chocolate jam, ketch up, cheese, cream,
cosmetic, Mayonnaise, tooth paste, jelly etc high viscosity product, will be use in tube package.
2.Tube filling and sealing machine Main Specification:
| Working position suit for material | Filling capacity | Filling volume |
| 8 plastic and laminated plastic tube | 20-40pcs/min | 5-75ml or 50-300ml or customer design |
| Hopper volume & fuction | Tube diameter | Voltage Voltaje |
| 316 SUS 30L | 80MM max | 220V/50Hz single phase |
| Motor power | Machine size | Machine weight |
| 3kw | 1250*950*1600mm | 380KG |
| Date printed | Additonal fuction | Hopper and filling connect part size |
| 1-2rows, numbers and letters | Air blow after filling | 1.25 inch SUS304 |
3.Semi-Automatic aluminium tube filling and sealing machine
Automatic tube filling and folding tail machine is designed and manufactured according to the latest developed foreign advanced technology and the actual situation of China. All parts contacted with material are made of stainless steel, this machine is special for aluminium tube filling and sealing, automatic filling tubes can be done automatically, folding tail and output, the maximum operating speed of 40 pic/ min, frequency control. Filling accuracy is 1%.
Characteristics:
The machine sealing part: aluminum side after three or five fold, coding, automatic code print. In order to avoid leakage, we adopts Japanese import sealing ring for this machine. The whole machine has advanced structure, advanced configuration, convenient operation, convenient maintenance, easy to clean, and so on. In addition, the cam is located in the table to facilitate the replacement of aluminum species.
| Power supply:Single phase 220V±10% 50HZ( customizable) Filling range:10-75ml20-150ml Accuracy:≤+/-1% Motor power:2.2kw Tube diameter: Φ10-50mm Capacity:30-40 pic/min( adjustable ) Compressed air:pressure 0.6-0.7mpa Dimensi ons: 1100*600*1300mm Weight: 230kg |
Optional:
Tube feeding system:slanting hanging type automatic tube feeding tank (automatic type)
Saddle-shaped tube sealing device (automatic type)
Jacket type insulation hopper
Mixing system for hopper
Automatic material feeding system(pump) (automatic type)
Final product transport device (automatic type)
Saddle-shaped tube sealing device (automatic type)
Jacket type insulation hopper
Mixing system for hopper
Automatic material feeding system(pump) (automatic type)
Final product transport device (automatic type)
The product has been widely well-known and has gained buyer's recognition in overseas market. The product is extremely resistant to corrosion.
This product has the characteristics of excellent performance. The product is extremely resistant to corrosion.
