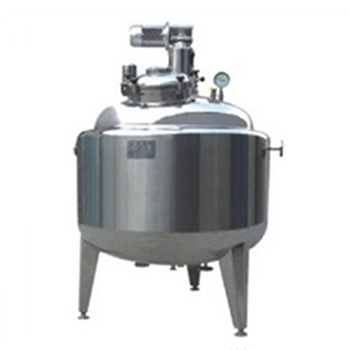

Stainless steel Synthesis reactor

Stainless steel Synthesis reaction tank SS reactor

MOQ:

1pcs

Place of Origin:

Guangdong,China

Payment Terms:

50% deposit T/T in advance, 50% balance T/T Before Shipment

Delivery Time:

30 working days upon receipt of the deposit. (If urgent, please let us know the exact time you need)

Accept Custom Service:

Yes

Certification:

CE / ISO9001:2015 / SGS

Inquiry

Write a Review

*DEFINITION OF Stainless steel Synthesis reactor:
The Stainless steel reactor is widely used for reaction, evaporation, concentration and synthesis in industrial production and scientific research such as chemical industry, medicine, dyes, pesticides, organic synthesis, petroleum, food manufacturing and defense industry. , extraction, polymerization, saponification, mineralization, chlorination, nitrification, etc..
Reactor kettles, also known as reaction tanks, distillation tanks, water bath kettles, neutralization kettles, dissolution kettles, condensation kettles, and many other names are named based on the chemical reactions of their own products.

Technical Specifications

Composition	Instructions
Specification (L)	50-50000
Design Pressure (Mpa)	Atmospheric Pressure or under pressure
Material	Carbon steel, stainless steel, enamel, graphite
Heating Forms	Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.
Cooling Forms	Refrigeration medium in the internal pipe jacket
Blending Power	Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.
Stirring blade Forms	Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
Seal	Mechanical seal or stuff packing seal
Inner Surface Treatment	Polished or no polished
Discharge Valve	Flanged ball valve, open downward discharge valve and others
Technological Pipe Hole	Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2,

Feature

*Stainless steel reactor performances and features:

Stainless steel reaction vessel(reactor) is heated by the external coil or jacket to supply heat transfer conduction oil / steam / water, it is an ideal equipment of low power and high heating temperature and large volume.

◪ Reduce the thickness of tank and increase its loading capacity..
◪ Increase heat transfer efficiency.
◪ Reduce power consumption and cost.
◪ Reduce the total diameter of tank and be good for the layout of workshop.

Application

*Stainless steel reactor:

Stainless steel reactor is widely used in reaction, evaporation, concertration, composition, extraction, saponification, mineralization, chlorination, nitration etc. Of chemical, pharmaceutical, dye, pesticide, organic synthesis, petroleum, food additives, defense industry and scientific research.
