Full topical pharmaceutical making machines cream ointment manufacturing plant

   Full topical pharmaceutical making machines cream ointment manufacturing plant

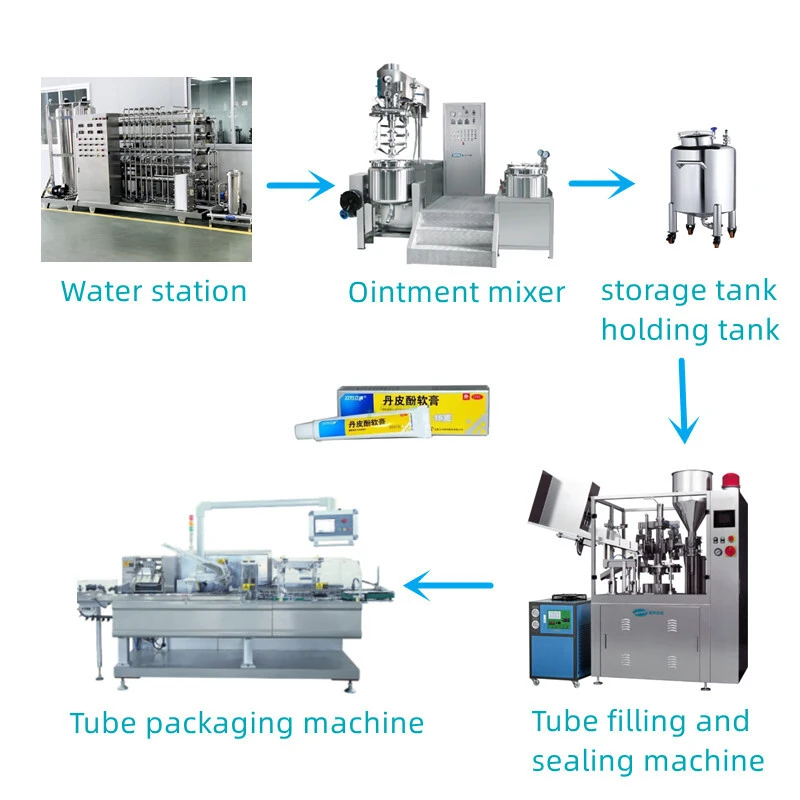

    include water station - ointment mixer - storage tank - tube filling and sealing machine - tube packaging machine

   Water station

   Include water pre-treatment filters, RO system, EDI device, Pasteurization device, UV sterilization device, water storage tanks, WFI distiller, CIP system

  Ointment cream mixer

   -vacuum emulsifying mixing machine

   1. Tiltable manufacturing main tank

   2. Water phase tank

   3. Oil phase tank

   4. Optional control system: push button control panel, touch screen control panel with manual operation, PLC+HML automatic control panel

Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit

  Movable storage tank

1. contact parts material -SUS 316L,

2. non-contact parts material - SUS304

3. The inner surface is mirror polished, Ra≤0.4 μm

4. The outer surface is mirror or matt polished,

5. Equip with Vent filter,

6. Equip with 360º spray CIP ball.

7. Dished head, Conical bottom easy for discharge.

8. nozzles: Inlet, CIP port, vent filter port, manhole, discharge port, thermometer port.

9. Equip with wheels for easy movement.




  Tube filling and sealing machine

   This tube filling and sealing machine is suitable for tubes automatic filling, sealing, data printing, cutting.
