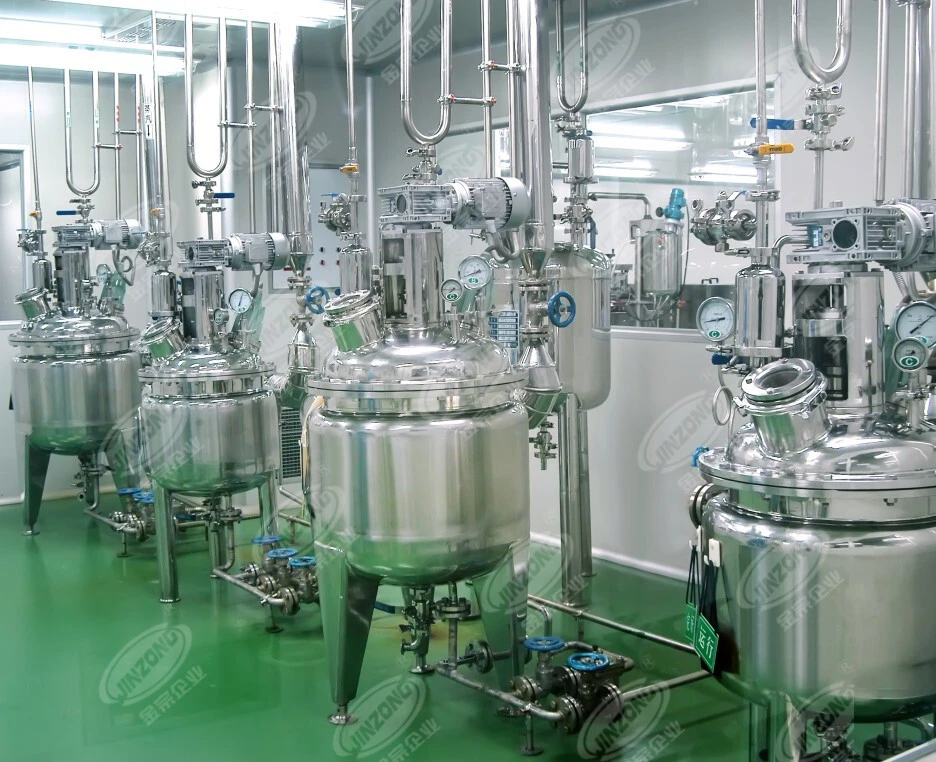

oral liquid and syrup manufacturing line

It is composite of pre-mix tank manufacturing vessel holding tank complete system for solution preparation with piping. all system SS316L for contact parts

pre-mix tank: premixing and dispenser solid raw material for oral liquid and syrup manufacturing.

Technical Specifications

Inner layer: made of 316L stainless steel with polished surface.
Middle layer jacket: made of SUS304, with spiral device of reinforcing ring, cold water from bottom to top (no pressure), to achieve the purpose of heating and cooling.
Insulation layer: it is made of stainless steel. Polyurethane or rock wool is used to keep the temperature with the outside to achieve the effect of heat preservation.
Reducer: cycloid pin gear reducer is fixed on the bracket in the beam. The output shaft of reducer wheel is connected with agitating paddle. Looper connection is adopted to facilitate disassembly and cleaning.
If you have any technical requirement,feel free let us know . We can design the tanks according to your requirement .

Working volume	50L	100L	200L	300L	500L	1000L	2000L	3000L	Customized
Diameter (mm)	550	700	800	850	1100	1400	1600	1800	Customized
Power(kw)	1.1	1.5	2.2	2.2	3	4	7.5	7.5	Customized
Inlet DN	40	40	40	40	40	50	50	50	50
Mixing speed rpm	36	36	36	36	36	36	36	36	36
working pressure	<0.09Mpa	<0.09Mpa	<0.09Mpa	<0.09Mpa	<0.09Mpa	<0.09Mpa	<0.09Mpa	<0.09Mpa	<0.09Mpa
working temperature	<200°C	<200°C	<200°C	<200°C	<200°C	<200°C	<200°C	<200°C	<200°C
accessory	Safety valve, pressure gauge, thermometer

Feature

*MAIN COMPOSITION of pre-mix tank:
pre-mix tank is mainly composed of tank body, mixing system and accessories. The tank body includes inner cylinder, outer cylinder, jacket and supporting foot, etc. Rock wool filling is used as insulation layer between inner cylinder and outer cylinder if needed, jacket form is integrate jacket.
The accessories mainly include sanitary manhole, mirror, light, material and liquid inlet and outlet pipe, thermometer, pressure gauge or customized.

*performances and features:

◪ Design compliance with GMP.
◪ Agitator can be top or bottom driven or magnetically driven;
◪ Atmospheric, Vacuum or Pressure Operation;

Application

*pre-mix tank:

pre-mix tank is also widely used in the heating, mixing, cooling and heat preservation of materials in beverage, wine, milk, food, dairy, seasoning, grease, pigment and other industries.

pre-mix tank can be used as detoxification tank, mixing tank, temporary storage tank, batching tank, etc. pre-mix tank is widely used in dairy industry, food, pharmaceutical, chemical industry, beverage and other industrial sectors as a necessary equipment for heating, cooling, heat preservation, sterilization treatment or slurry storage.
