Semi-Automatic Round and Flat Bottles/Flat Bottles Labeling Machine

Semi-Automatic Round and Flat Bottles/Flat Bottles Labeling Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
PackagingBottlesPower3kw
Voltage220V,50/60Hz or Customer DesignLabeling Speed0-12000PCS/H
TrademarkJNZONG MACHINETransport PackagePlywood Case Wooden
SpecificationCE, SGSOriginChina

Automatic labeling machine,Double Side and Round Bottle Labeling Machine,flat bottles labeling machine

1.Working  Principle:
Put the bottles on the conveyor     Bottles separating      arrange/leading bottles
    Labeling     press labels      finshed
2.automatic labeling machine Structure:
Main Motor: 750W Panasonic servo motor, Panasonic  servo amplifier ,Danfoss frequency inverter , Siemens PLC ,Siemens touch screen ,German LEUZE labels sensor ,Japan KEYENCE  FS-V11 optoelectronic switch
Conveyor:Motor 750W,speed adjustable by frequency inverter.
Bottles leading structure: Double coordinate adjustment stainless steel rail.
Bottles separating:Panasonic motor,speed adjustable.
Plastic parts of the structure:Panasonic motor,speed adjustable,with the mechanical synchronous speed of the conveyor.
Press belt structure:Spiral Bevel Gear Drive,with the mechanical synchronous speed of the conveyor.
Scraper:Sponge spring steel plate combination.
Labels press structure :Combination unpowered sponge roller,Quick disassembling structure for different size of labels..
3.Parameter:



Item

Specification

1

Labeling head number

  2pcs

2

Labels type

Adhesive sticker

3

Weight(height) of labels transporter

Max:200mm

4

Length of labels transporter

Max:400mm

5

Scraper

20-200mm

6

Dimension of labeling object

thickness≤90mm    height≤450mm
or customer design

7

Labeling speed

30-50m/min

8

Conveyor speed

0-30m/Min

9

Capacity

0-12000pcs/h

10

Tap location precision

±0.2mm

11

Labeling precision

±1mm

12

Label plate outside diameter

350mm

13

Label plate inside diameter

76.2mm

14

Qty of label plate

2pcs

15

Size of Labels collector

180mm

16

Method of labels collector

Rewind the labels

17

Conveyor belt

950±50mm

18

Net weight

500kg

19

Bottles conveying direction

From left to right

20

Labels conveying direction

From left to right

21

Dimension

 L3048*W1400*H1650(mm)

22

Power supply

 220V/50Hz 3000W


Application labels

Raw material of labels:

All the paper type labels,thin film type labels

Thickness of labels:

>2.5mm

The material of bottom labels:

Enough pull,the glassine or PET bottom labels will be better.

Label spacing requirement

Minimum spacing is 2.54mm,standard spacing is 3mm

Label size allowed error

±0.3 mm

Max weight of labels: 200mm


< 200mm



automatic labeling machine Labels direction


4.Main Components:

Name

Item

Brand

Country

Units

Qty

PLC

S7-224

Siemens

German

set

1

Touch Screen



Siemens

Taiwan

set

1

Servo driver

MCDDT3520003

Panasonic

Japan

set

2

Servo driver

MHMDD082P1U

Panasonic

Japan

set

2

Frequency inverter

FC-051PK

Danfoss

Danmark

set

2

a.c. contactor

LC1-D2510M7N

TELEMECANIQUE

German

set

1

Urgent stop switch box

54*54

TELEMECANIQUE

German

pcs

1

Urgent stop switch

XB2 ES542

TELEMECANIQUE

German

pcs

1

Object sensor

FS-V11

KEYENCE

Japan

set

1

Label sensor

GS63/6D.3-S8

LEUZE

German

pcs

2

Power switch

24V 6A

Meanwell

Taiwan

set

1

Conveyor motor

GV28-750-25S

Wanxin

Taiwan

set

1

Motor

M9MC60G4Y

Panasonic

Japan

set

1

Transmission

MGC30B

Panasonic

Japan

set

1

Speed controller

(includes insurance switch)

Panasonic

Japan

set

1

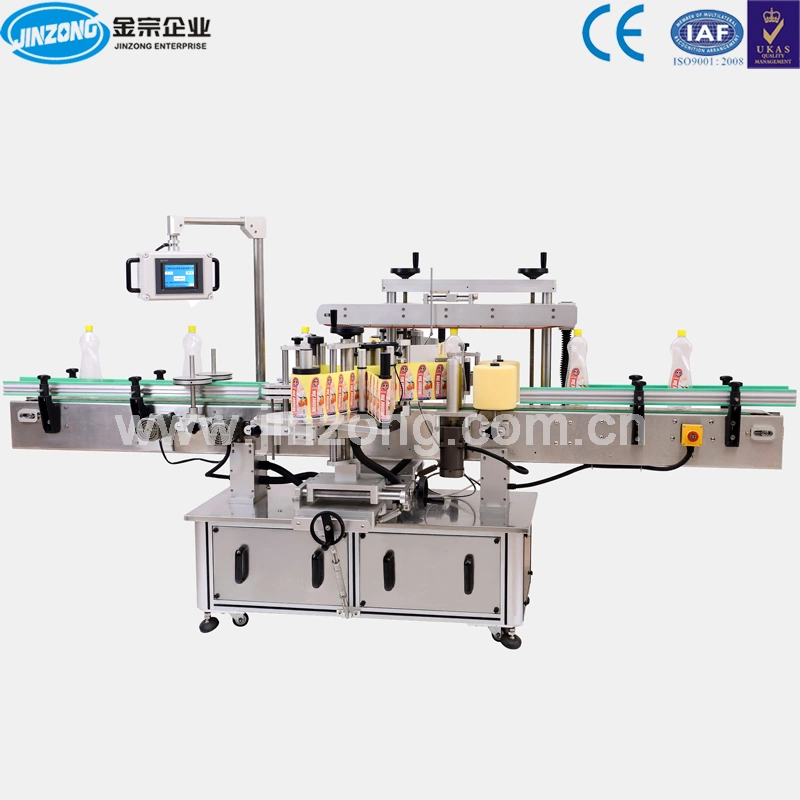

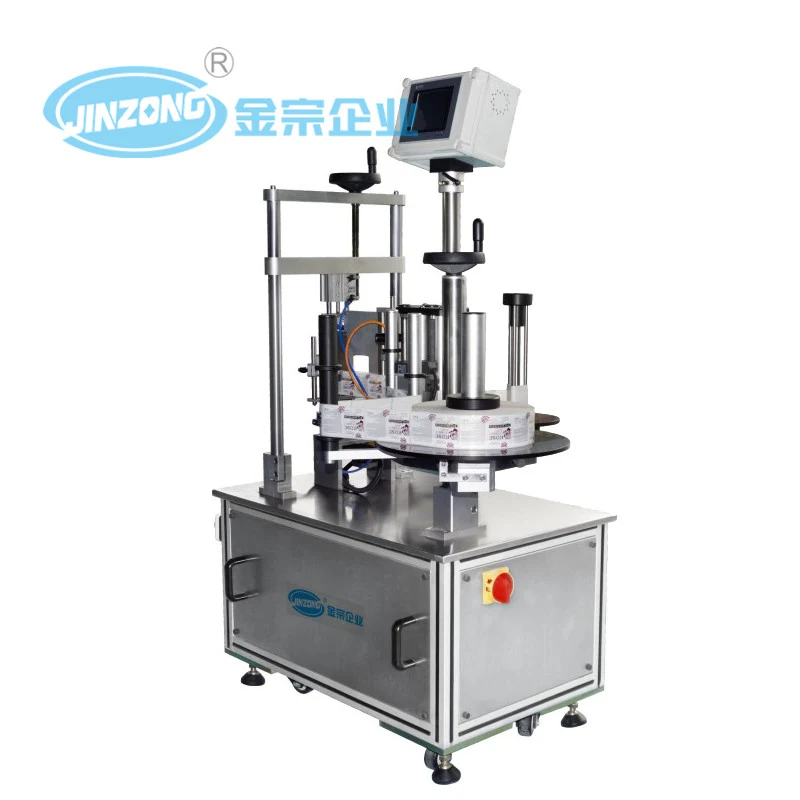

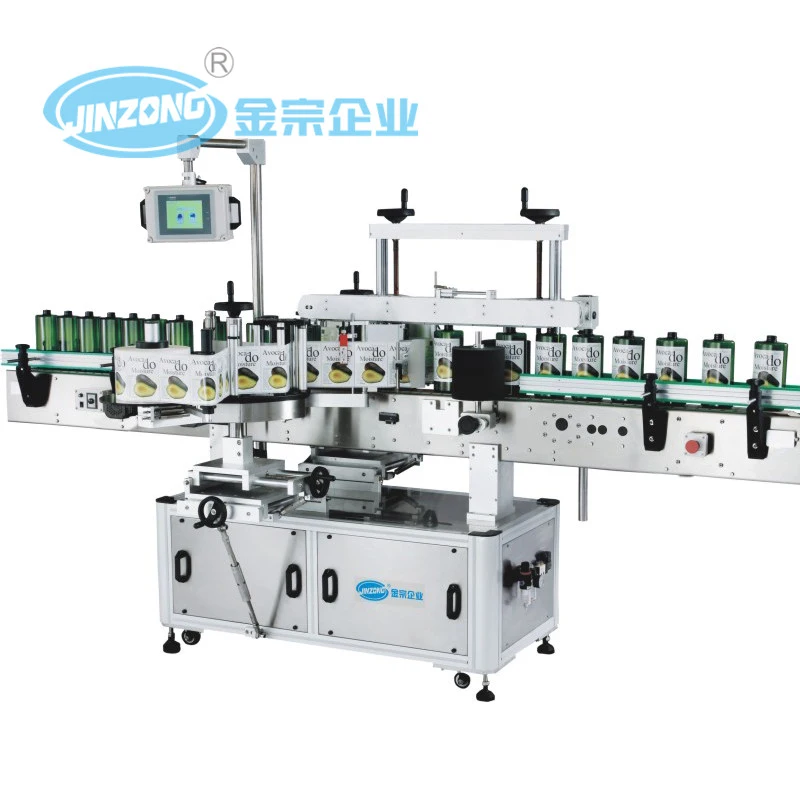

Photos of the labeling machine:
Semi-Automatic Round and Flat Bottles/Flat Bottles Labeling Machine

Semi-Automatic Round and Flat Bottles/Flat Bottles Labeling Machine
Semi-Automatic Round and Flat Bottles/Flat Bottles Labeling Machine
