    Model NO.JZ-R80PackagingBottles
    Power1200WDimension1950X720X1570mm
    Labeling Speed3000-6500PCS/HTrademarkJINZONG MACHINE
    Transport PackageWooden CaseSpecificationCE, SGS
    OriginChina
    Jinzong Machinery shampoo lotion cream bottles automatic labeling machine

    Technical Specification
    1.      Specification of Automatic Labeling Machine:

    No.

    Item

    Details

    1

    Labeling Heads Qty

    1

    2

    Application of label type

    adhesive sticker,etc

    3

    Width of label(height)

    Max:200mm

    4

    Length of Label

    Max:400mm

    5

    Size of scraper/hair brusher

    20-200mm

    6

    Dimension of the bottle

    Thickness≤90mm    Height≤450mm

    7

    Labeling Speed

    45m/min

    8

    Speed of conveyor

    0-30m/Min

    9

    Capacity

    3000-6500pcs/h

    10

    Labeling locating precision

    ±0.2mm

    11

    Labeling speed

    ±1mm

    12

    Label roller outside diameter

    350mm

    13

    Label roller inside diameter

    76.2mm

    14

    Label roller loosen device

    1set

    15

    Recycling roller diameter

    Max:180mm

    16

     Label recycling way

    Paper plate rewinding the label

    17

    Height of conveyor

    950±50mm

    18

    Correction tape adjusting

    Screw adjusting

    19

    Net weight(kg)

    250kg

    20

    Bottle transport direction

    From left to right

    21

    Labeling direction

    From left to right

    22

    Size

    1950mm*W720mm*H1570mm

    23

    Power Supply

    220V/50Hz 1200W


    Applicable Packaging Materials

    Label Material

    All the paper/film labels

    Thickness of label

    >25μm

    Material of Labels foundation

    Have enough tension,in general,most of factory use Glasin/PET labels foundation

    Labels spacing

    Mininum:2.54mm

    Label size allowed error

    ±0.3 mm

    Label maximum width

    < 200mm




    Electric Configuration of the labeling macine&colon;

    1

    Siemens CPU224 CN

    6ES7 214-1AD23-OXB8

    SIEMENS

    1

    set

    2

    PLC

    PWS5610T-S

    HITECH

    1

    set

    3

    Servo Drivers

    MCDDT3520003

    220V&sol;750W

    Panasonic

    1

    set

    4

    Servo Motor

    MHMDD082P1U

    750W&sol;3AC-120V

    Panasonic

    1

    set

    5

    Single-phase Induction Motor

    M9MZ60G4YGA

    220V&sol;60W

    Panasonic

    1

    set

    6

    Capacitor Run Induction Motor

    M91Z60GV4GGA

    220V&sol;60W

    Panasonic

    1

    set

    7

    Motor Speed Controller

    MGSDB2

    220V

    Panasonic

    1

    pcs

    8

    Starting Capacitance

    5uF&sol;450V

    Panasonic

    1

    pcs

    9

    Reducer

    MY9G50B

    Panasonic

    1

    set

    10

    Single-phase Vertical Motor

    750W

    WANXIN

    1

    set

    11

    Frequency Converter

    VLT-FC51

    0&period;75KW

    Danfoss

    1

    set

    12

    Frequency Converter

    VLT-FC51

    0&period;37KW

    Danfoss

    1

    set

    13

    Sensor

    GS61&sol;6D&period;3-S8

    LEUSE

    2

    pcs

    14

    FOS

    FS-V11P

    PNP

    KEYENCE

    1

    set

    15

    Switch

    220V&sol;10A

    Made in China

    1

    pcs

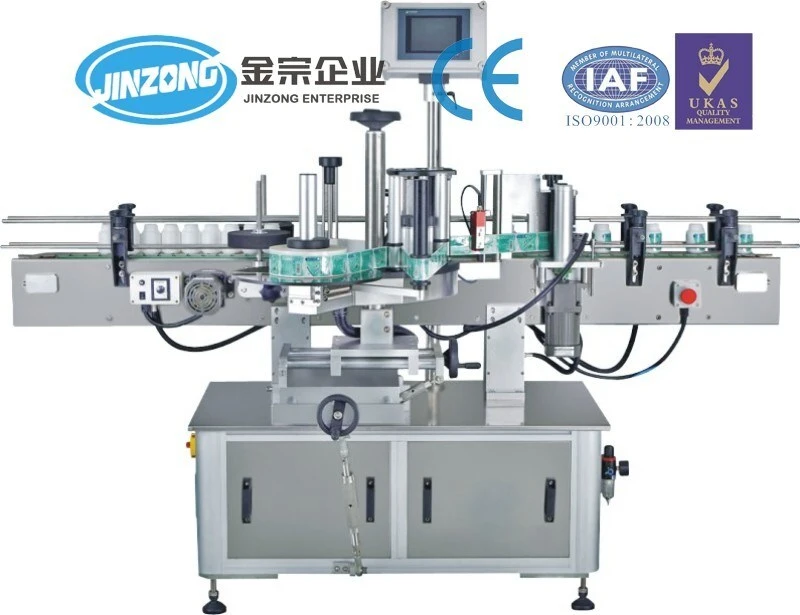

    Photo of the labeling machine
    All the features make this product highly demanded on the market. It has a compact design, occupying less space. The product is among the best in the industry and has a promising market potential. It has a compact design, occupying less space.
