Jinzong Machinery Automatic Labeling Machine for Round Bottle/Flat Bottle/Square Bottle
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model NO. | JZ-AL-9180 | Packaging | Bottles |
| Power | 3kw | Voltage | 220V,50/60Hz or Customer Design |
| Labeling Speed | 0-12000PCS/H | Trademark | JNZONG MACHINE |
| Transport Package | Plywood Case Wooden | Specification | CE, SGS |
| Origin | China |
Automatic labeling machine,Double Side and Round Bottle Labeling Machine,flat bottles labeling machine
1.Working Principle:
Put the bottles on the conveyor Bottles separating arrange/leading bottles
Labeling press labels finshed
2.automatic labeling machine Structure:
Main Motor: 750W Panasonic servo motor, Panasonic servo amplifier ,Danfoss frequency inverter , Siemens PLC ,Siemens touch screen ,German LEUZE labels sensor ,Japan KEYENCE FS-V11 optoelectronic switch
Conveyor:Motor 750W,speed adjustable by frequency inverter.
Bottles leading structure: Double coordinate adjustment stainless steel rail.
Bottles separating:Panasonic motor,speed adjustable.
Plastic parts of the structure:Panasonic motor,speed adjustable,with the mechanical synchronous speed of the conveyor.
Press belt structure:Spiral Bevel Gear Drive,with the mechanical synchronous speed of the conveyor.
Scraper:Sponge spring steel plate combination.
Labels press structure :Combination unpowered sponge roller,Quick disassembling structure for different size of labels..
3.Parameter:
Item | Specification | |
1 | Labeling head number | 2pcs |
2 | Labels type | Adhesive sticker |
3 | Weight(height) of labels transporter | Max:200mm |
4 | Length of labels transporter | Max:400mm |
5 | Scraper | 20-200mm |
6 | Dimension of labeling object | thickness≤90mm height≤450mm or customer design |
7 | Labeling speed | 30-50m/min |
8 | Conveyor speed | 0-30m/Min |
9 | Capacity | 0-12000pcs/h |
10 | Tap location precision | ±0.2mm |
11 | Labeling precision | ±1mm |
12 | Label plate outside diameter | 350mm |
13 | Label plate inside diameter | 76.2mm |
14 | Qty of label plate | 2pcs |
15 | Size of Labels collector | 180mm |
16 | Method of labels collector | Rewind the labels |
17 | Conveyor belt | 950±50mm |
18 | Net weight | 500kg |
19 | Bottles conveying direction | From left to right |
20 | Labels conveying direction | From left to right |
21 | Dimension | L3048*W1400*H1650(mm) |
22 | Power supply | 220V/50Hz 3000W |
Application labels | |
Raw material of labels: | All the paper type labels,thin film type labels |
Thickness of labels: | >2.5mm |
The material of bottom labels: | Enough pull,the glassine or PET bottom labels will be better. |
Label spacing requirement | Minimum spacing is 2.54mm,standard spacing is 3mm |
Label size allowed error | ±0.3 mm |
Max weight of labels: 200mm | < 200mm |
automatic labeling machine Labels direction
4.Main Components: | |||||
Name | Item | Brand | Country | Units | Qty |
PLC | S7-224 | Siemens | German | set | 1 |
Touch Screen | Siemens | Taiwan | set | 1 | |
Servo driver | MCDDT3520003 | Panasonic | Japan | set | 2 |
Servo driver | MHMDD082P1U | Panasonic | Japan | set | 2 |
Frequency inverter | FC-051PK | Danfoss | Danmark | set | 2 |
a.c. contactor | LC1-D2510M7N | TELEMECANIQUE | German | set | 1 |
Urgent stop switch box | 54*54 | TELEMECANIQUE | German | pcs | 1 |
Urgent stop switch | XB2 ES542 | TELEMECANIQUE | German | pcs | 1 |
Object sensor | FS-V11 | KEYENCE | Japan | set | 1 |
Label sensor | GS63/6D.3-S8 | LEUZE | German | pcs | 2 |
Power switch | 24V 6A | Meanwell | Taiwan | set | 1 |
Conveyor motor | GV28-750-25S | Wanxin | Taiwan | set | 1 |
Motor | M9MC60G4Y | Panasonic | Japan | set | 1 |
Transmission | MGC30B | Panasonic | Japan | set | 1 |
Speed controller | (includes insurance switch) | Panasonic | Japan | set | 1 |

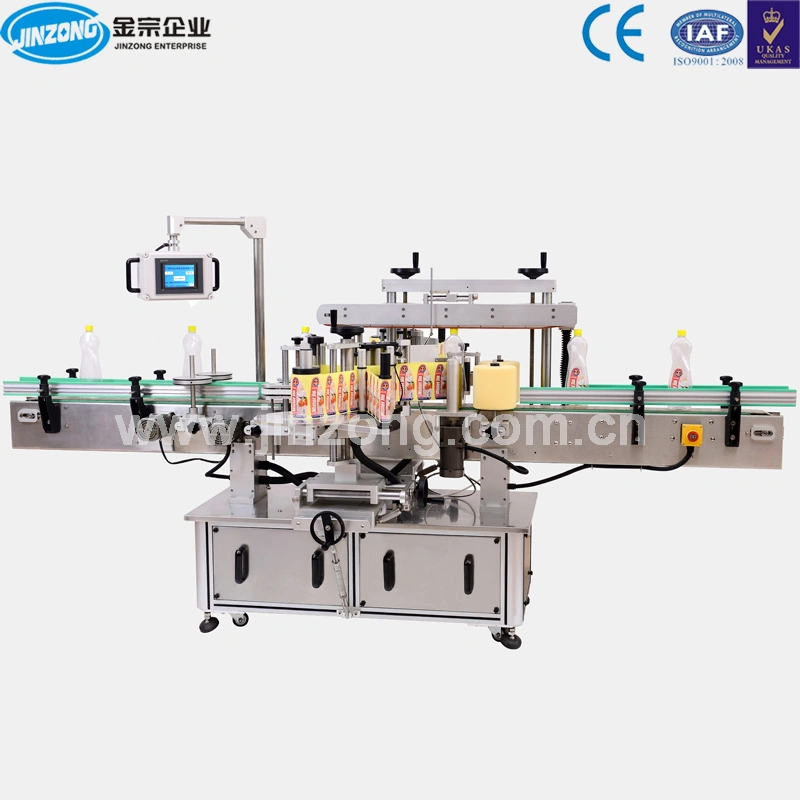

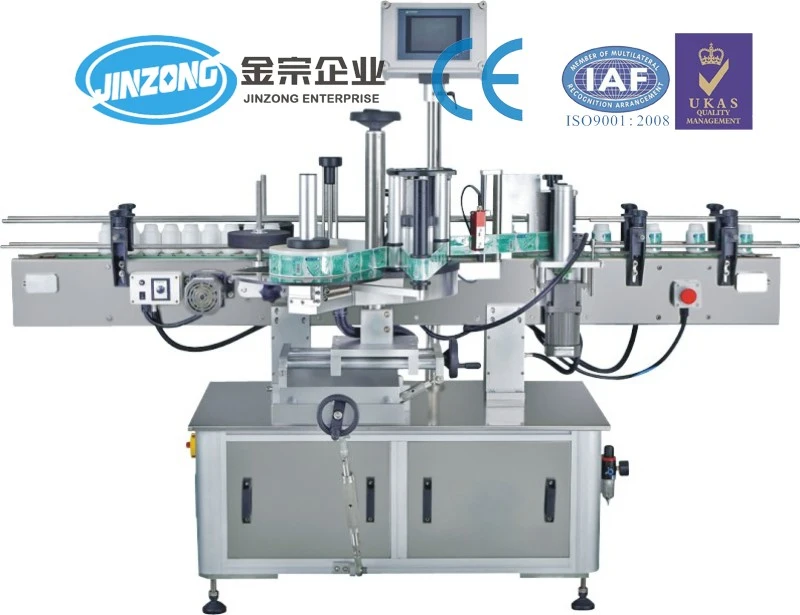

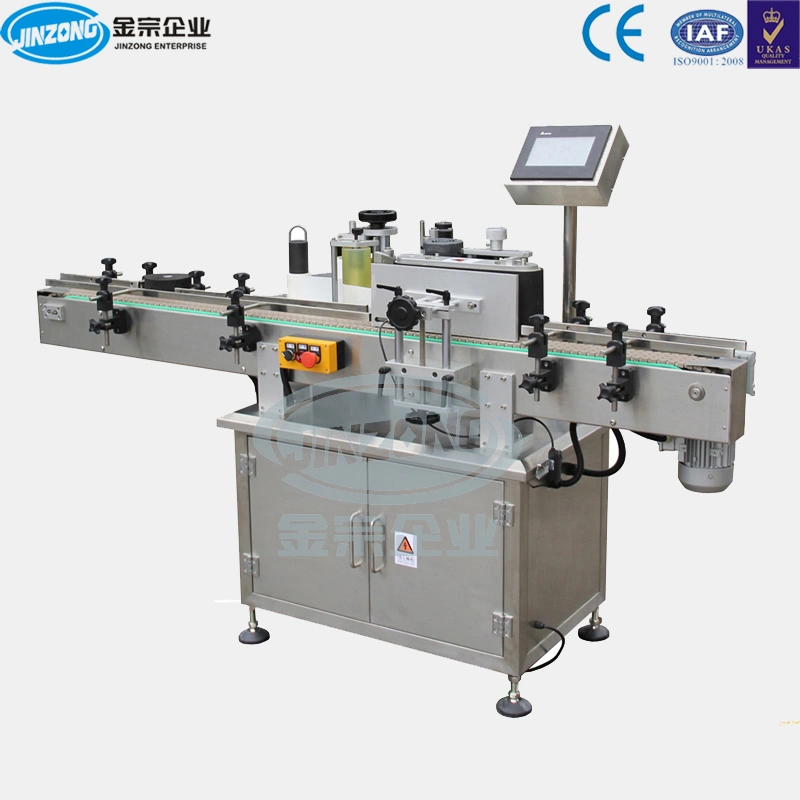

Photos of the labeling machine:
The international recognition, popularity and reputation of this product are continuing to increase. The product can realize mobile feeding and output.
The product has a wide popularization value and will be more widely used in the future. The product can realize mobile feeding and output.
