Semi-Automatic and Automatic Filling Machine

Semi-Automatic and Automatic Filling Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.JGZFilling PrinciplePressure
Packaging Container Lifting StructurePneumatic LiftingStructureLinear
PackagingBottlePackaging MaterialPlastic
Filling MachineAutomaticTrademarkJINZONG MACHINE
Transport PackagePlywood Case or NudeSpecificationSUS316L and SUS304
OriginChinaHS Code8479820090

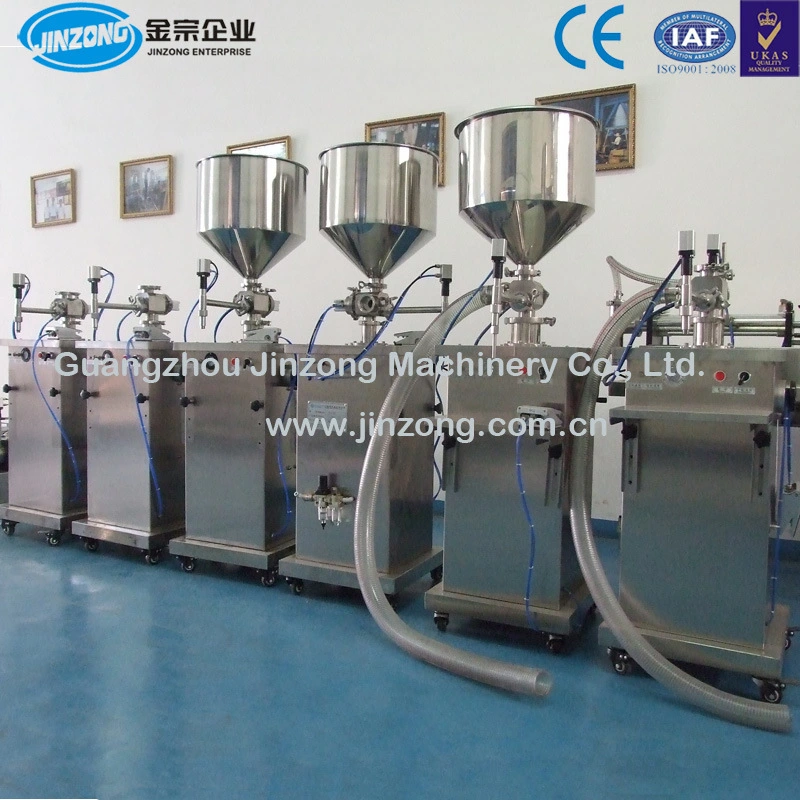

JGASemi-auto Single-head Self-priming Filling Machin
This machine is suitable to fill the low viscid, thick ointment materials and all kinds of liquids, featuring high filling accuracy and easy operation. Its aerodynamic elements are Taiwan brand products with sound performance. Currently, this product remains to be one of advanced filling equipment in the world.
JGA/S,,
JGA/S dual-usage filling machine can actualize two usages of cream and liquid filling with one machine by quickly and easily changing the hopper and self-absorption head, and is the first choice to replace traditional vertical type or horizontal type filling machines.
 JGB Heat-Preservation Filling MachineThis machine is suitable to measurably fill the ointment materials with high viscosity and poor flowability. It does the filling pneumatically, its hopper and the cylinder both are thermally preserved with electrically heated circulating water. The hopper is equipped with a frame mixing system. The machine is easy to clean and operate, conforming to GMP standards.

JGC Semi-auto Single -head Self-suction Filling Machine

This machine is suitable to fill the ointment and liquid material with low viscosity.Suitable for a wide range, High precision filling, easy to clean and simple to operate.
Filling Speed0-50bot/min
Filling Accuracy±5‰
Type&Filling ScopeJGC65-60ml
JGC2525-250ml
JGC100100-1000ml
JGC250250-2500ml
JGC500500-5000ml
JGZ automatic linear filling machine
(ml)
Filling Scope
 200~1000(1000~2000)
 (bot/min)
Capacity
40~50(1000ml)                                50~70(500ml)
70~90(200ml)
(ml)
 Filling accuracy
10(1000ml)
 8(500ml)
 5(200ml)
   Air consumption (m3/min )1.2
  Power  (kW)1.5
Filling Dimension (mm)
(L×W×H)
  1110×1265×2350
Transport Dimension (mm)
(L×W×H)
  8000×300×800

It is used for automated batch filling for washing products, oil products, beverage and drugs. It adopts linear intermittent bottle delivery filling and is widely applicable for packing bottles of different materials and shapes such as round and irregular shaped bottles. It can be configured with bottle loading machine, cap-sorting/feeding machine, cap tightening machine, coding conveyor and automatic weight detector etc for use as per users' specific demand.
Features:
1. Meet the sanitary standards: contact material: 316L, stainless steel as appearance material and removable cylinder which can be disassembled and assembled rapidly for washing etc;
  1. Advanced filling mechanism:: rapid and automatic adjustment of filling volume, anti-drip valve mouth and adjustable drag chain conveyor etc;
  1. Advanced control system: automatic filling, volume setting and cleaning programs as well as double automatic filling program.
JGX automatic rotary filler

   It is manufactured precisely with the advanced technology introduced from Italy, applicable for automatic batch filling of washing products, oil products, beverage and drugs etc. It can be configured with bottle loading machine, cap-sorting/feeding machine, cap tightening machine, coding conveyor and automatic weight detector etc for use as per users' specific demand.

Features:
1. Meet the sanitary standards: contact material: 316L, stainless steel as appearance material and removable cylinder which can be disassembled and assembled rapidly for washing etc;
2. Advanced filling mechanism: flexible liquid cylinder, valve mouth and automatic constant distance facility for the level, precise filling quantity adjustment apparatus and filling valve safety device;
3. Advanced control system: automatic control system for material liquid, automatic fill-monitoring system, variable frequency speed governing system, automatic overload protection device etc.

Technical data
Parameter NameParameter Value
: Filling volume:0.1-1.25L
:Filling Valve: 12 sets
:Max. Productivity:5000b/h
(×):¢(50-86)×(50-270)mm
: Filling precision:<1%
(,):8-90ºC, 7-370(50ºC)
:0.4-0.6mp  /   0.1M3/h
: Power Supply:380V  50HZ   5KW
:Overall dimension:1800×1900×2300
:Total weight:1,500kg
This offered product is highly preferred by our customers in the global market. The product can be used in harsh industrial environments. In contrast to with other products, this product is unsurpassed in its application prospects. The product can be used in harsh industrial environments.
