Platform Type High Speed Disperser Vessel for Paint & Coatings
| Model NO. | FD | Layout Type | Verticle |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling |
| Operating type | Continuous Operating | Condition | New |
| Name | Platform Type High Speed Disperser Vessel for Pain | Type | Hydraulic Lifting Type |
| Speed | 0-145rpm | Power | 45-132kw |
| Trademark | Jinzong | Transport Package | Standard Package |
| Specification | customer design | Origin | China |
1.Description:
The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.
2.Technical Parameter
| Model | Power(kw) | Speed(rpm) | Disperser dia(mm) | lifting height(mm) |
| FD-45 | 45 | 0-1450 | 400 | 1600 |
| FD-55 | 55 | 0-1450 | 450 | 1600 |
| FD-75 | 75 | 0-950 | 500 | 1800 |
| FD-90 | 90 | 0-950 | 550 | 1800 |
| FD-110 | 110 | 0-950 | 600 | 2100 |
| FD-132 | 132 | 0-950 | 700 | 2300 |
3.Product Use
It is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.

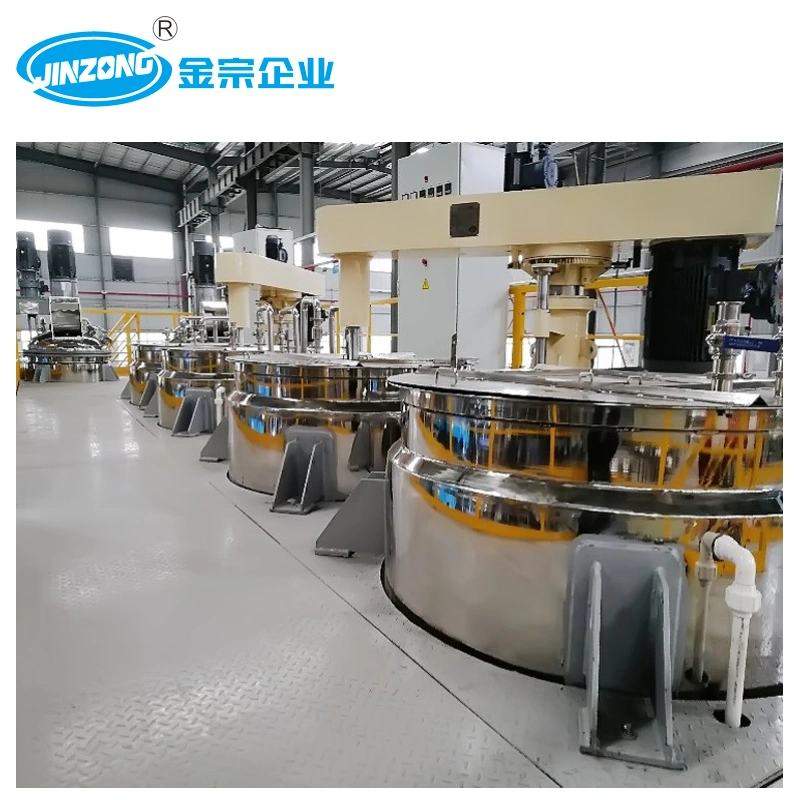

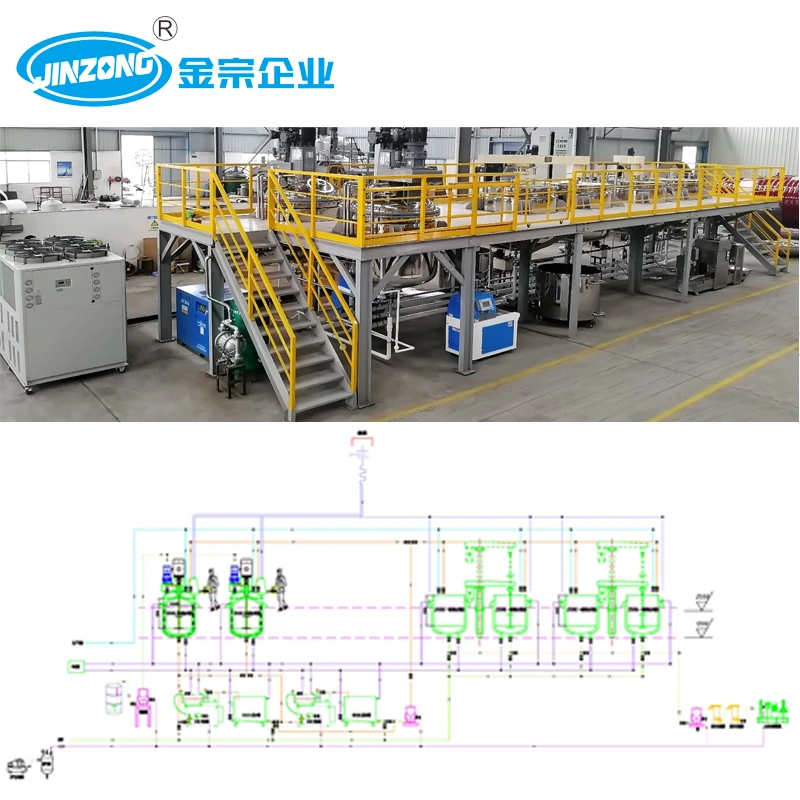

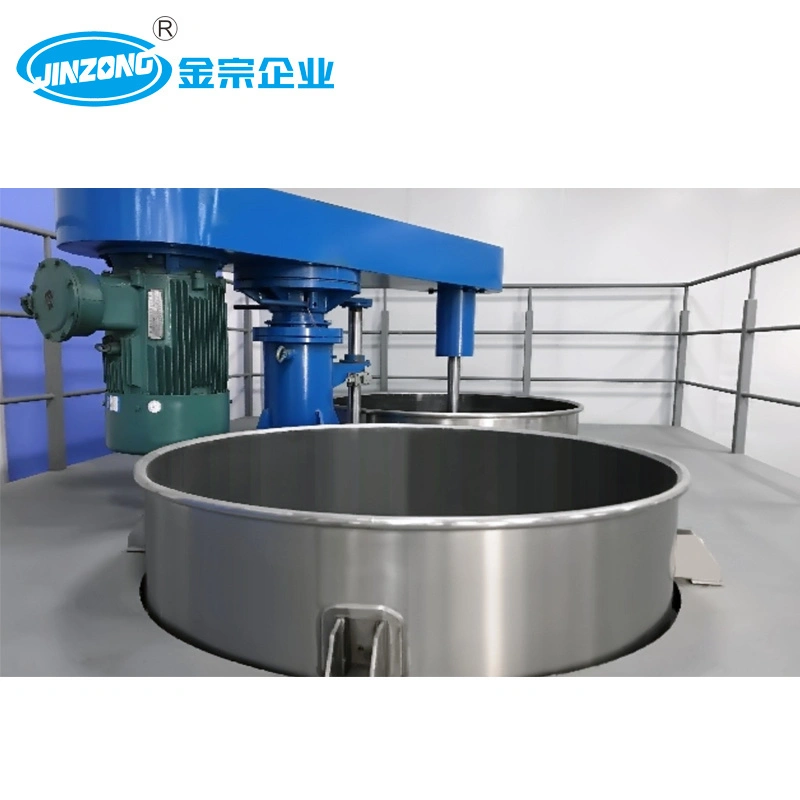

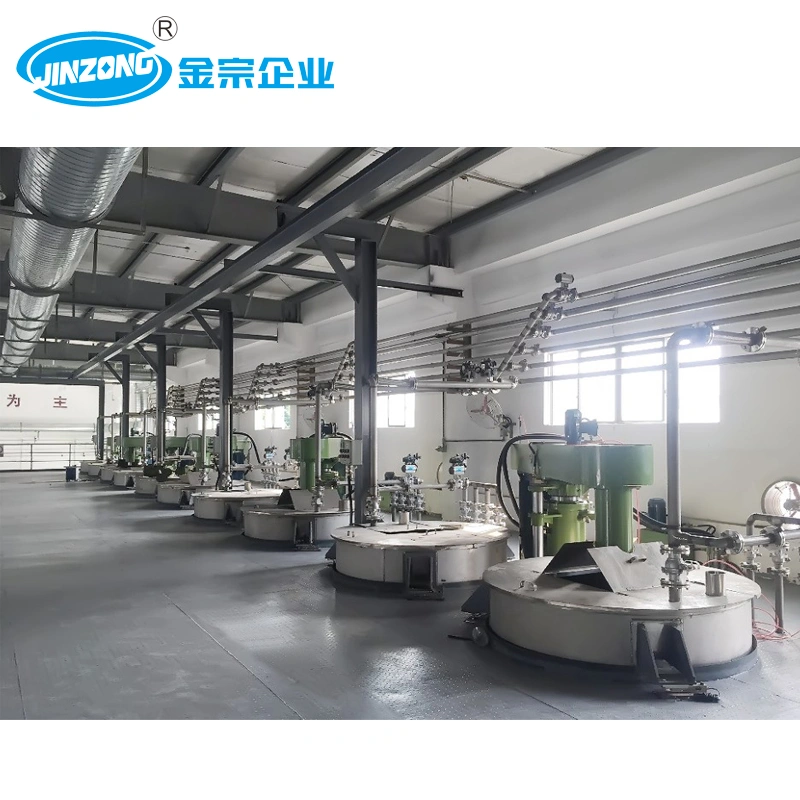

4.Project photos
Company Informatons
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:
1> Chemical Machinery: reactors, resins production line, high speed disperser, storage tank, sand mill, three rollers mill, filter, filling macihne, paint&coating production line,paint testing machines, etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Packaging&Shipping
Packaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
Shipping
FOB port: Guangzhou or Shenzhen
Our Services
-Engineers avaiable to service machinery overseas
- Technological support
- Guarantee: 1 year
- Custom-make is ok for us
1. Pre-sale service
Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.
a. Select equipment model
b. Design and manufacturer products according to client's special requirements.
c. Train technical persnonal for clients
2. Service during the sale
a. Pre-check and accept products adhead of delivers
b. Send photos of machines every week and send testing video
c. Help clients to draft solving plans
3. After-sales services
Provide considerate services to minimize client's worries
a. Assist client to prepare for the first project.
b. Install and debug the equipment
c. Train initiative to eliminate the trouble rapidly
d. Provide technical replacement
e. After-sales team will solve problems via operating and provide technical instruction
4. Warranty
The warranty is 12 months
Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge
We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.
