Pharmaceutical Reaction Plant Jacket Glass Lined Reactor
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Warranty | 1 Year | Trademark | JINZONG |
| Transport Package | Plywood Case | Specification | SUS304, 316L |
| Origin | Guangdong | HS Code | 8419899090 |

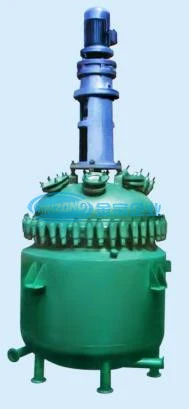

Pharmaceutical Reaction Plant Jacket Glass Lined Reactor
We provide a wide range of glass line vessel equipment, which is mainly used for the production of highly refined and pure products such as fine chemicals, pesticides, vitamins and pharmaceuticals. This system is highly corrosion resistant and their modular construction allows the changes to be made in the overhead structure depending on the process requirements.
Glass-lined reactor is widely used in reaction, evaporation, concertration, composition, extraction, saponification, mineralization, chlorination, nitration etc. Of pharmaceutical, chemical, dye, pesticide, organic synthesis, petroleum, food additives, defense industry and scientific research.

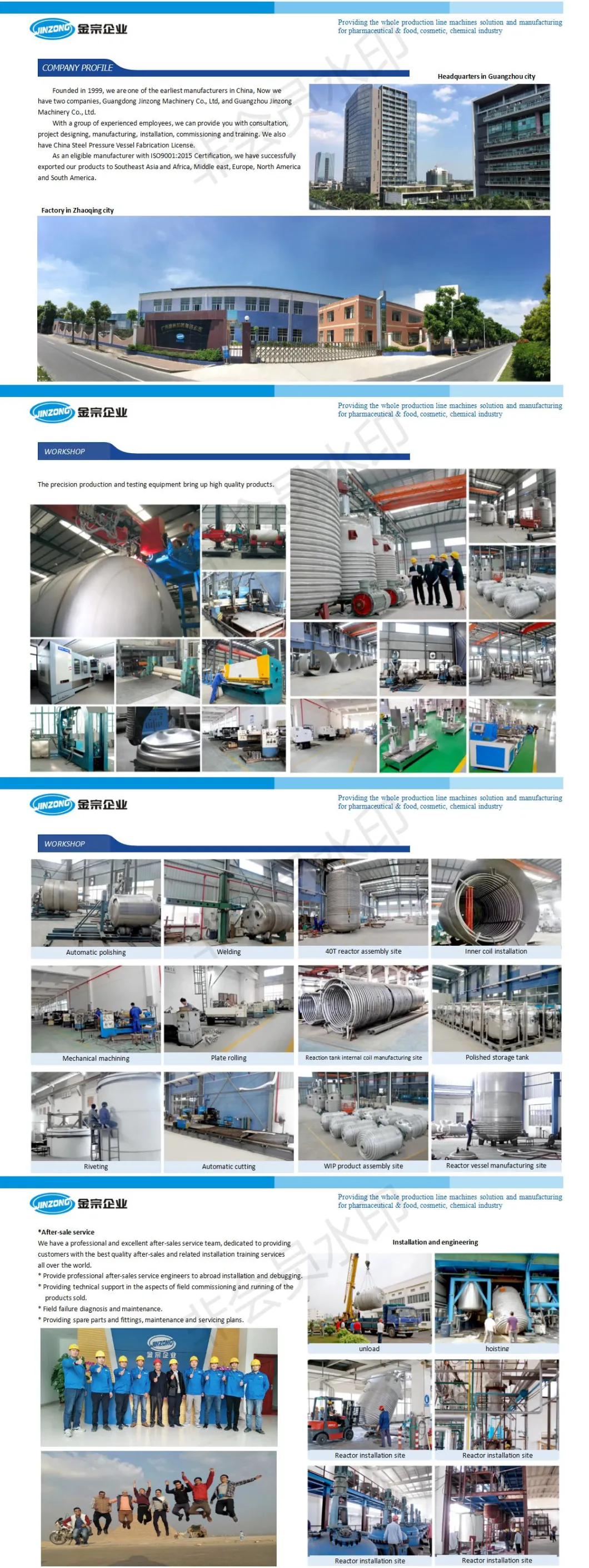

We specialized in manufacturing pressure vessels, reactors. Our company is a turnkey supplier that offers friendly service. We put accountability at a high priority and we will work with you every step of the way to ensure your success. We strive to promote the growth of your business by supplying you with the best products. We have a successful background of manufacturing amazing pressure vessels.
We provide a wide range of glass line vessel equipment, which is mainly used for the production of highly refined and pure products such as fine chemicals, pesticides, vitamins and pharmaceuticals. This system is highly corrosion resistant and their modular construction allows the changes to be made in the overhead structure depending on the process requirements.

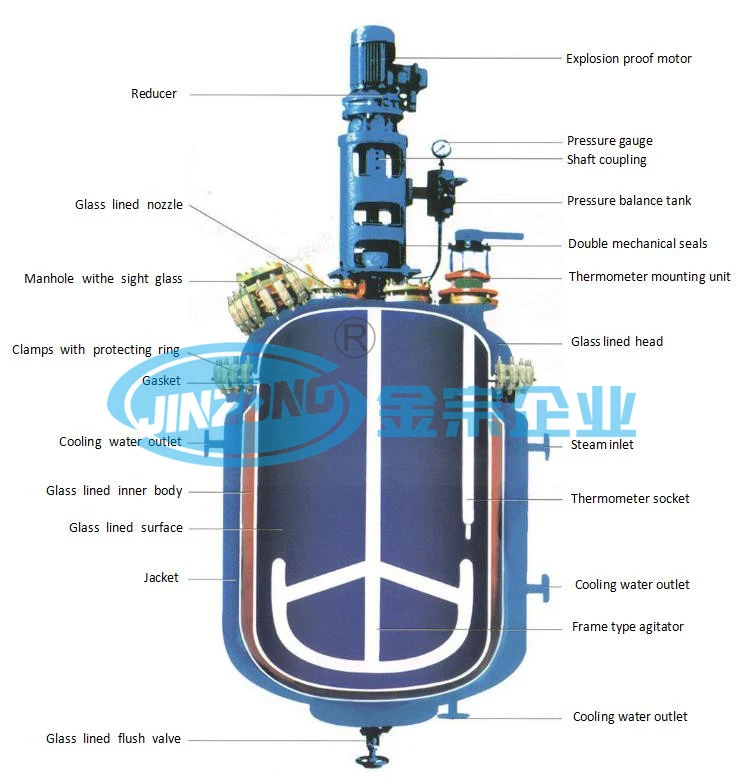

Jinzong glass lined reactor structure
The reactor is mainly composed of tank body, insulation material and accessories. The tank body includes inner cylinder, outer cylinder, jacket and supporting foot, etc. Rock wool filling is used as insulation layer between inner cylinder and outer cylinder, jacket form is integrate jacket.
The accessories mainly include sanitary manhole, mirror, light, material and liquid inlet and outlet pipe, thermometer, pressure gauge, etc.
Mechanical stirring: The stirring motor is installed on the top of the tank, and the stirring shaft is composed of the upper half shaft and the lower half shaft, the upper half shaft and the tank body are sealed by filler and have good performance; the lower half shaft is connected with the upper half shaft through flange, and the paddle is welded on the lower stirring shaft, frame type paddle.

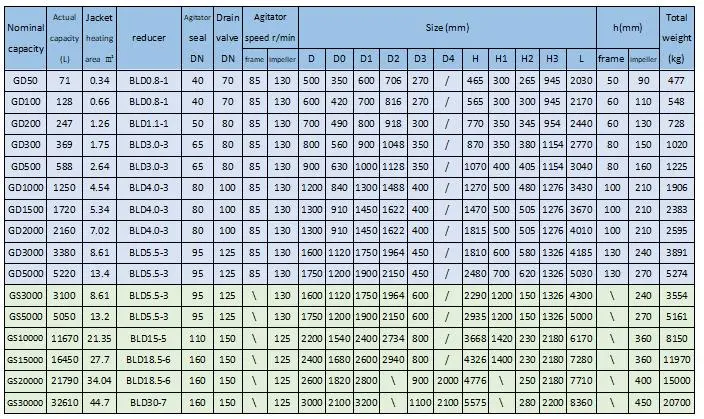

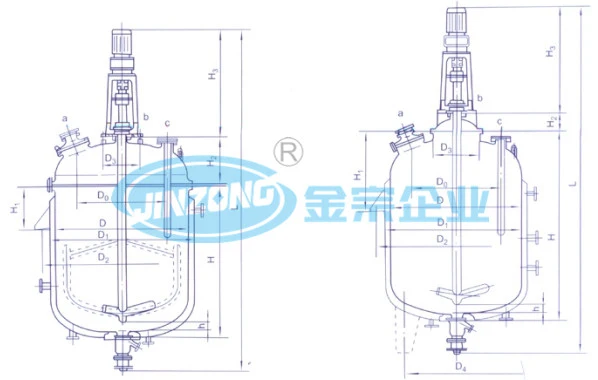

Jinzong glass lined reactor specification:
GD series GS series
The reactor is mainly composed of tank body, insulation material and accessories. The tank body includes inner cylinder, outer cylinder, jacket and supporting foot, etc. Rock wool filling is used as insulation layer between inner cylinder and outer cylinder, jacket form is integrate jacket.
The accessories mainly include sanitary manhole, mirror, light, material and liquid inlet and outlet pipe, thermometer, pressure gauge, etc.
Mechanical stirring: The stirring motor is installed on the top of the tank, and the stirring shaft is composed of the upper half shaft and the lower half shaft, the upper half shaft and the tank body are sealed by filler and have good performance; the lower half shaft is connected with the upper half shaft through flange, and the paddle is welded on the lower stirring shaft, frame type paddle.
Jinzong glass lined reactor specification:
GD series GS series
Glass-lined reactor is widely used in reaction, evaporation, concertration, composition, extraction, saponification, mineralization, chlorination, nitration etc. Of pharmaceutical, chemical, dye, pesticide, organic synthesis, petroleum, food additives, defense industry and scientific research.
We specialized in manufacturing pressure vessels, reactors. Our company is a turnkey supplier that offers friendly service. We put accountability at a high priority and we will work with you every step of the way to ensure your success. We strive to promote the growth of your business by supplying you with the best products. We have a successful background of manufacturing amazing pressure vessels.
The benefits of cost savings and profit maximization have motivated many manufacturers to use this product in their manufacturing. The product is simple and convenient to operate.
With this product, talent is more focused on its own business, and its work efficiency is higher, which ultimately helps to improve overall productivity. The product is simple and convenient to operate.
