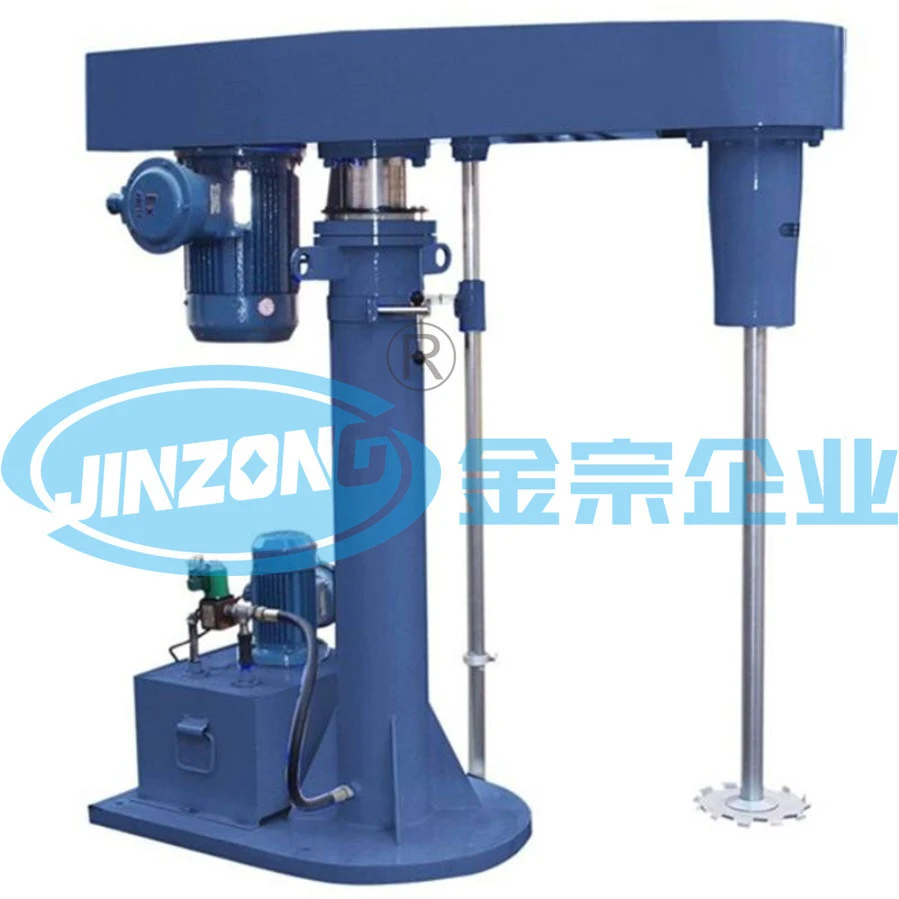

Hydraulic Lifting High Speed Disperser
| Layout Type | Horizontal | Mixing Drum Shape | Tank |
| Operating type | Continuous Operating | Condition | New |
| Trademark | Jinzong | Transport Package | Wooden Case |
| Specification | stainless steel | Origin | China |
| HS Code | 8419899090 |
The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.
Technical Parameter
Model
|
Plate Diameter of Dispersed (mm) |
Motor Power (kw) | Speed(rpm) |
Pump Power (kw) |
Lifting Height (mm) |
FS4 | 200 | 4 | 0-1450 | 0.55 | 900 |
FS5.5 | 200 | 5.5 | 0.75 | 1000 | |
FS7.5 | 250 | 7.5 | 0.75 | 1000 | |
FS11 | 250 | 11 | 0.75 | 1000 | |
FS15 | 250 | 15 | 1.1 | 1200 | |
FS18.5 | 300 | 18.5 | 1.1 | 1200 | |
FS22 | 300 | 22 | 1.1 | 1200 | |
FS30 | 350 | 30 | 0-1200 | 1.1 | 1200 |
FS37 | 350 | 37 | 1.5 | 1200 | |
FS45 | 400 | 45 | 1.5 | 1200 | |
FS55 | 450 | 55 | 1.5 | 1200 |
