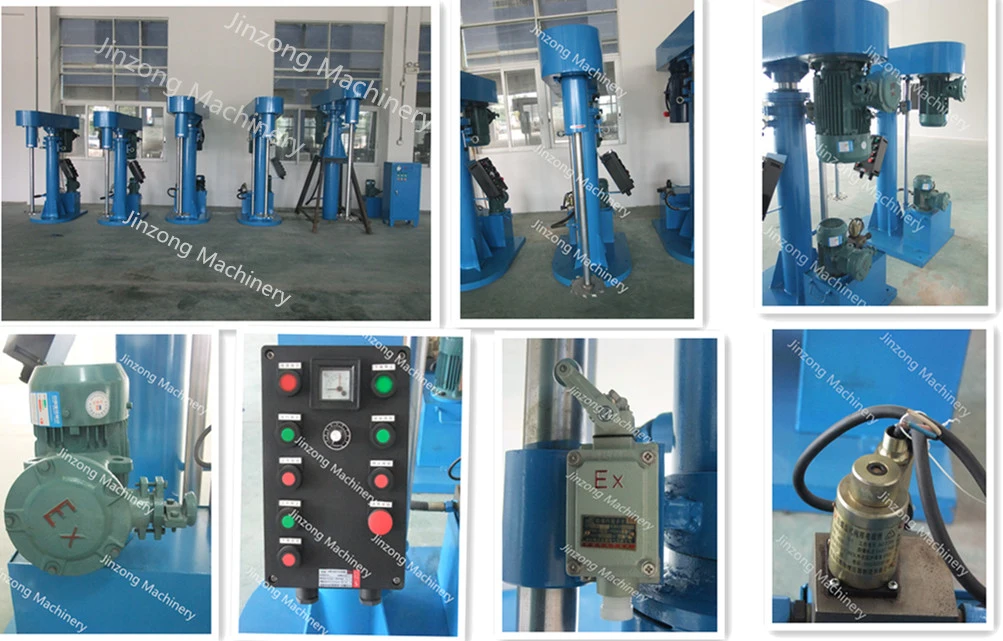

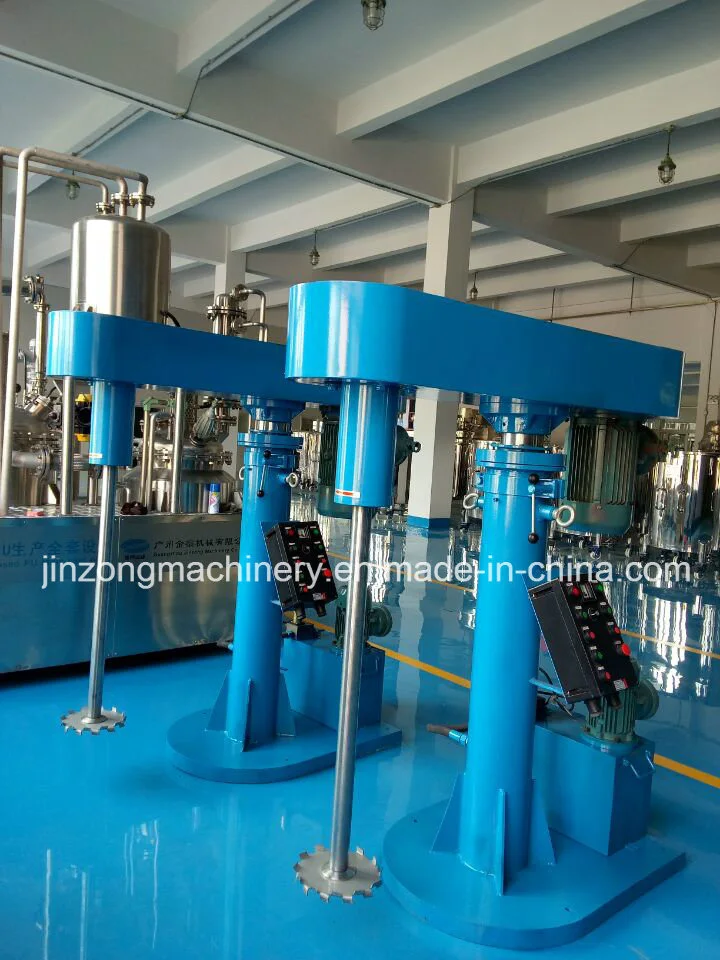

High Speed Disperser for Pigment Paint Hydraulic Lifting
| Model NO. | FL | Layout Type | Verticle |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling, Coating |
| Operating type | Continuous Operating | Condition | New |
| Machine Type | Mill | Warranty | 1 Year |
| Voltage | 380V,50Hz,3phase | Trademark | Jinzong Machinery |
| Transport Package | High Quality Plywood Cases of Export Standards | Specification | FL2.2/3.4, FL5.5/7.5, FL15/18.5/22, FL30/37, FL45 |
| Origin | Guangdong, China(Mainland), | HS Code | 8419899090 |
| Type | FL2.2/3/4 | FL5.5/7.5/11 | FL15/18.5/22 | FL30/37/FX37 | FL45/FX45 | FL90/FX90 |
| Motor power(kw) | 2.2/3/4 | 5.5/7.5/11 | 15/18.5/22 | 30/37/37 | 45 | 45 |
| Split shaft speed bulk(r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1000 |
| Wheel dia. Of disperser(mm) | 200 | 250 | 300 | 350-400 | 450 | 600 |
| Rack lift travel(mm) | 700 | 900 | 1200 | 1200 | 1600 | 1600 |
| Pump power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 |
| Cylinder volume of material(L) | 100-200 | 400-600 | 600-1000 | 1000-2000 | 1000-2500 | 5000 |
| Weight(kg) | 400 | 800 | 1500 | 1700 | 2100 | 2600 |
| Dimensions(mm) | A | 1700 | 1750 | 2200 | 2600 | 2700 |
| B | 1300 | 1800 | 2100 | 2700 | 3000 | |
| C | 600 | 900 | 1100 | 1400 | 1600 | |
| W(with) | 540 | 350 | 900 | 1000 | 1500 |
1. Introduction
- For paint, coating, pigment, inks.
- Combine milling and dispersing function.
- Energy saving
- High efficiency, easy operation, maintenance, cleanng and changing color.
- Applicable for independent tank operation and high/ low viscosity paste.
2. Main Features
- Configure with qualified Inverter, various speed control
- Hydraulic lifting, can be moved around
- Integrate dispersing and grinding in one process
3. Function selection
- Imported or domestic top brand inverter for option
- Custom-made design is available, such as Ex-proof, vacuum, sealed operation;
- Belt or not clamping for optional.
4. Our service
- Engineers available to service machinery overseas.
- Technological support.
- Guarantee: 1 year.
- Custom-made is OK for us.

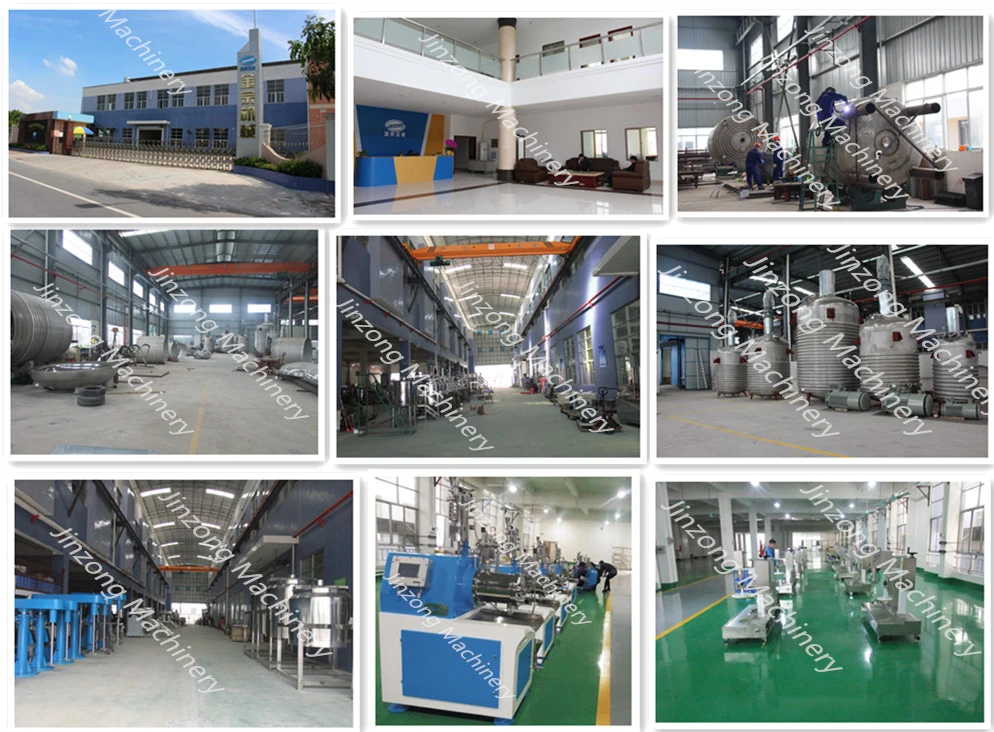

Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, sand mill, filling&packing machine, etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
6.Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
7.Certificates
