Model NO. | 30kw-90kw | Layout Type | Verticle |
Mixing Drum Shape | Disc | Additional Capabilities | Milling, Coating |
Operating type | Continuous Operating | Condition | New |
Power(W) | 2.2kw-90kw | Voltage | 380V 220V/50Hz |
Warranty | 1 Year | Trademark | Jinzong Machinery |
Transport Package | High Quality Plywood Cases of Export Standards | Specification | Prevail |
Origin | Guangdong, China (Mainland) | HS Code | 8474390000 |

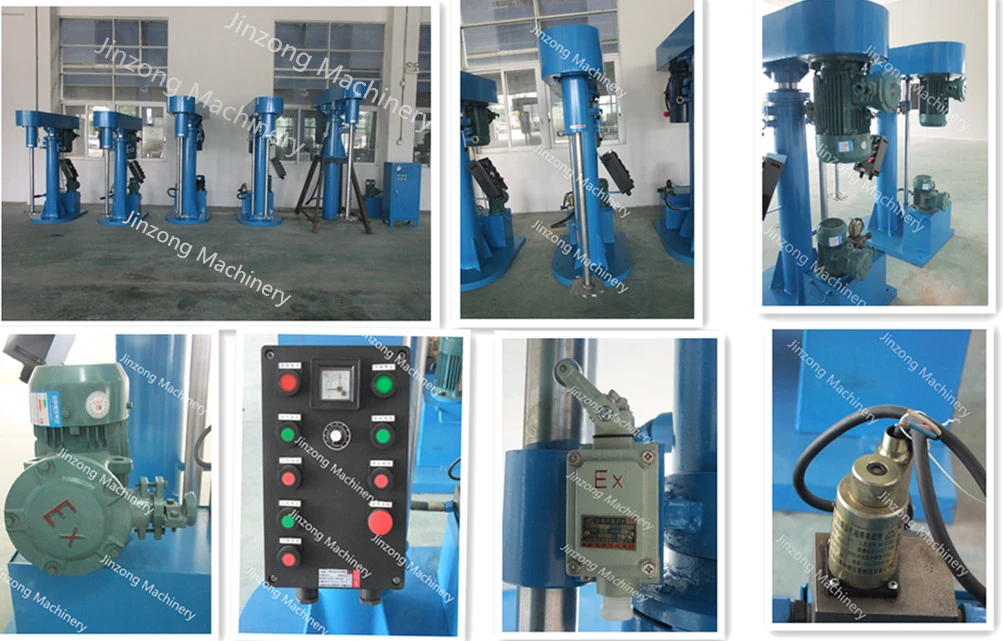

Features:
Stepless variable speed
Explosion- proof Electric box, Explosion- proof motor, Explosion- proof travel switch
Superior performance
Type | FL2.2/3/4 | FL5.5/7.5/11 | FL15/18.5/22 | FL30/37/FX37 | FL45/FX45 | FL90/FX90 |
Motor power(kw) | 2.2/3/4 | 5.5/7.5/11 | 15/18.5/22 | 30/37/37 | 45 | 45 |
Split shaft speed bulk(r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1000 |
Wheel dia. Of disperser(mm) | 200 | 250 | 300 | 350-400 | 450 | 600 |
Rack lift travel(mm) | 700 | 900 | 1200 | 1200 | 1600 | 1600 |
Pump power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 |
Cylinder volume of material(L) | 100-200 | 400-600 | 600-1000 | 1000-2000 | 1000-2500 | 5000 |
Weight(kg) | 400 | 800 | 1500 | 1700 | 2100 | 2600 |

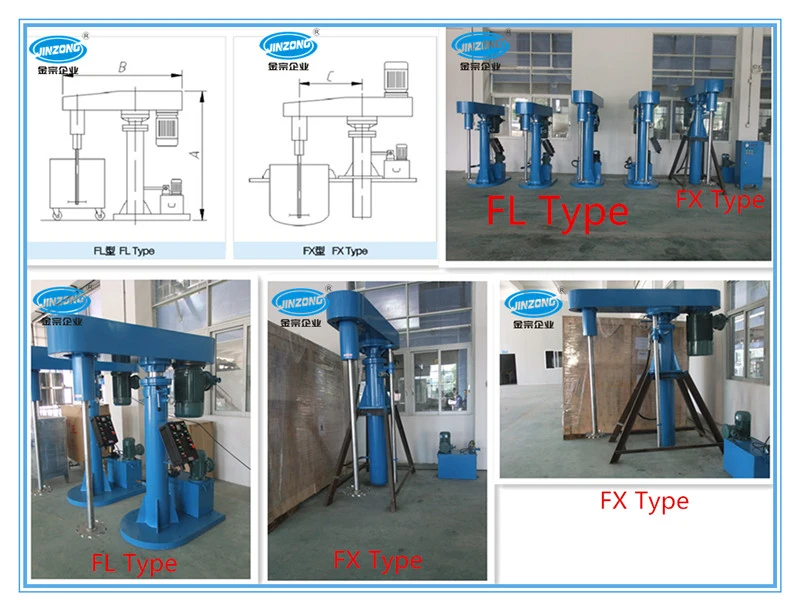

Dimensions(mm) | A | 1700 | 1750 | 2200 | 2600 | 2700 |
B | 1300 | 1800 | 2100 | 2700 | 3000 | |
C | 600 | 900 | 1100 | 1400 | 1600 | |
W(with) | 540 | 350 | 900 | 1000 | 1500 |
Guangzhou Jinzong Machinery(as Jinzong Machinery) is a technology innovation enterprise integrating design, manufacturing and system integration of chemical machinery & equipment which was established in 1999, covers an area of 18,000 square meters in Zhaoqing city. Jinzong Machinery specializes in research, development and auxiliary service of chemical production equipment for resin, paint, ink, adhesive and etc.
Now it has developed cost effective solutions and innovative processes for the production of high quality synthetic resins and polymer emulsions for Europe, Asia and South America, Australia, Africa.
Combining these years of chemical process knowledge and engineered system design experience, Jinzong Machinery provides a proven European technology according to international codes and standards.
By consistently keeping to professional operation concept, Jinzong Machinery will continue to provide you with service quality of a higher level. We are elaborately carving and presenting the best in the aspects of product design, manufacturing and product quality
Product lines range from:
1> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
2> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
3> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
