High Speed Disperser for Paint Coating Pigment Ink Chemicals

High Speed Disperser for Paint Coating Pigment Ink Chemicals

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.FL FXLayout TypeVerticle
Mixing Drum ShapeDiscAdditional CapabilitiesMilling
Operating typeContinuous OperatingConditionNew
Power(W)2.2kw-90kwVoltage380V/50Hz
Warranty1 YearTrademarkJinzong Machinery
Transport PackageHigh Quality Plywood Cases of Export StandardsSpecificationPrevail
OriginGuangdong, China (Mainland)HS Code8474390000
Product Description
High Speed Disperser for Paint Coating Pigment Ink Chemicals

1. Introduction
 -Equipment for pre-mixing the solid-liquid or liquid-liquid raw materials, used for as stirrer, blender, disperser and others.
-For paint, coating, pigments, inks, detergent, lithium anode paste, textile auliliary, etc.
-Conbine milling and dispersing funciton.
-High efficiency, easy operation, maintence, cleaning and changing color.
-Applicable for independent tank operation an high/low viscosity paste.

2. Main Features

- Configure with qualified inverter, various speed control

- Hydraulic lifting, can be moved around

-Integrate dispersing and grinding in on process

3. Function selection

-Imported or domestic top brand inverter for option

-Custom-made design is available, such as Ex-proof, vacuum, sealed operation.

-Belt or not clamping for optional

4. Technical data

TypeFL2.2/3/4FL5.5/7.5/11FL15/18.5/22FL30/37/FX37FL45/FX45FL90/FX90
Motor power(kw)2.2/3/45.5/7.5/1115/18.5/2230/37/374545
Split shaft speed bulk(r/min)0-14500-14500-14500-12000-12000-1000
Wheel dia. Of disperser(mm)200250300350-400450600
Rack lift travel(mm)7009001200120016001600
Pump power(kw)0.550.550.750.751.12.2
Cylinder volume of material(L)100-200400-600600-10001000-20001000-25005000
Weight(kg)4008001500170021002600
Dimensions(mm)A17001750220026002700
B13001800210027003000
C600900110014001600
W(with)54035090010001500

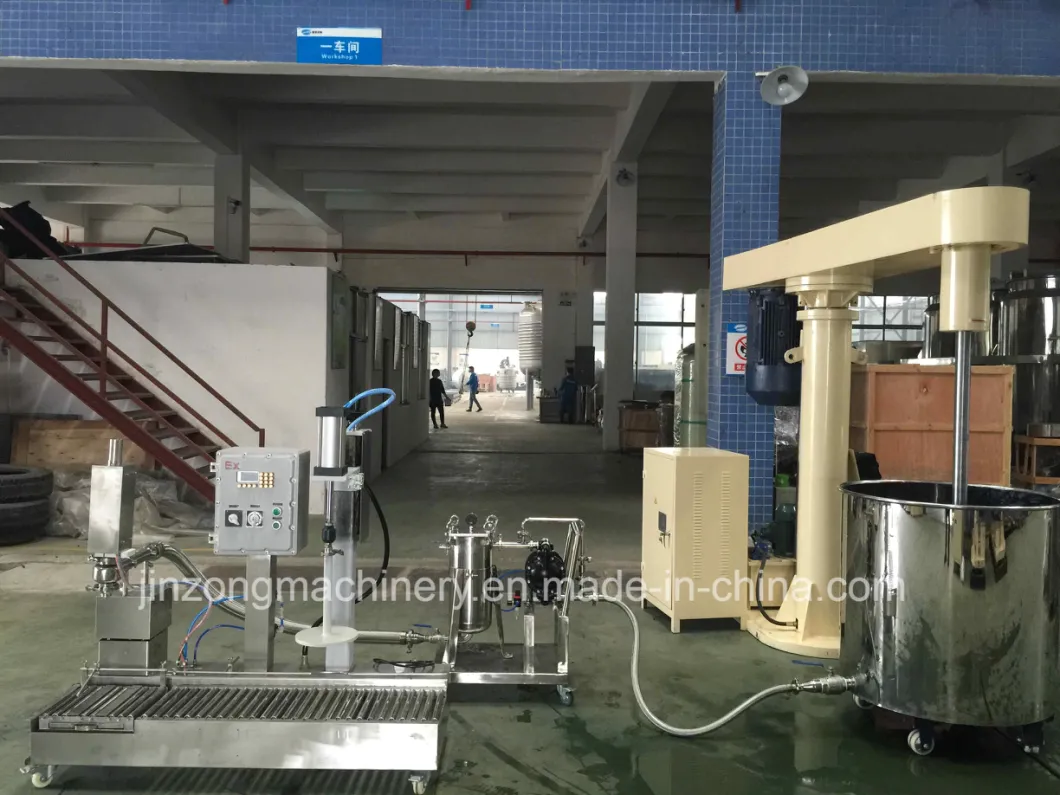

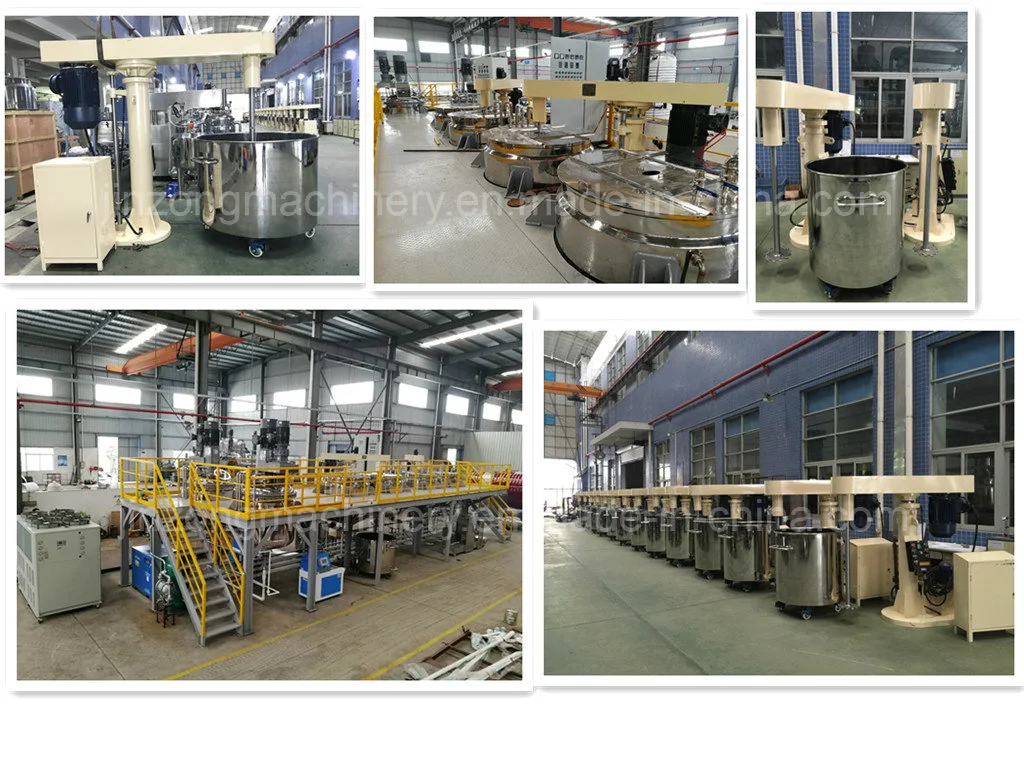

Finished Products

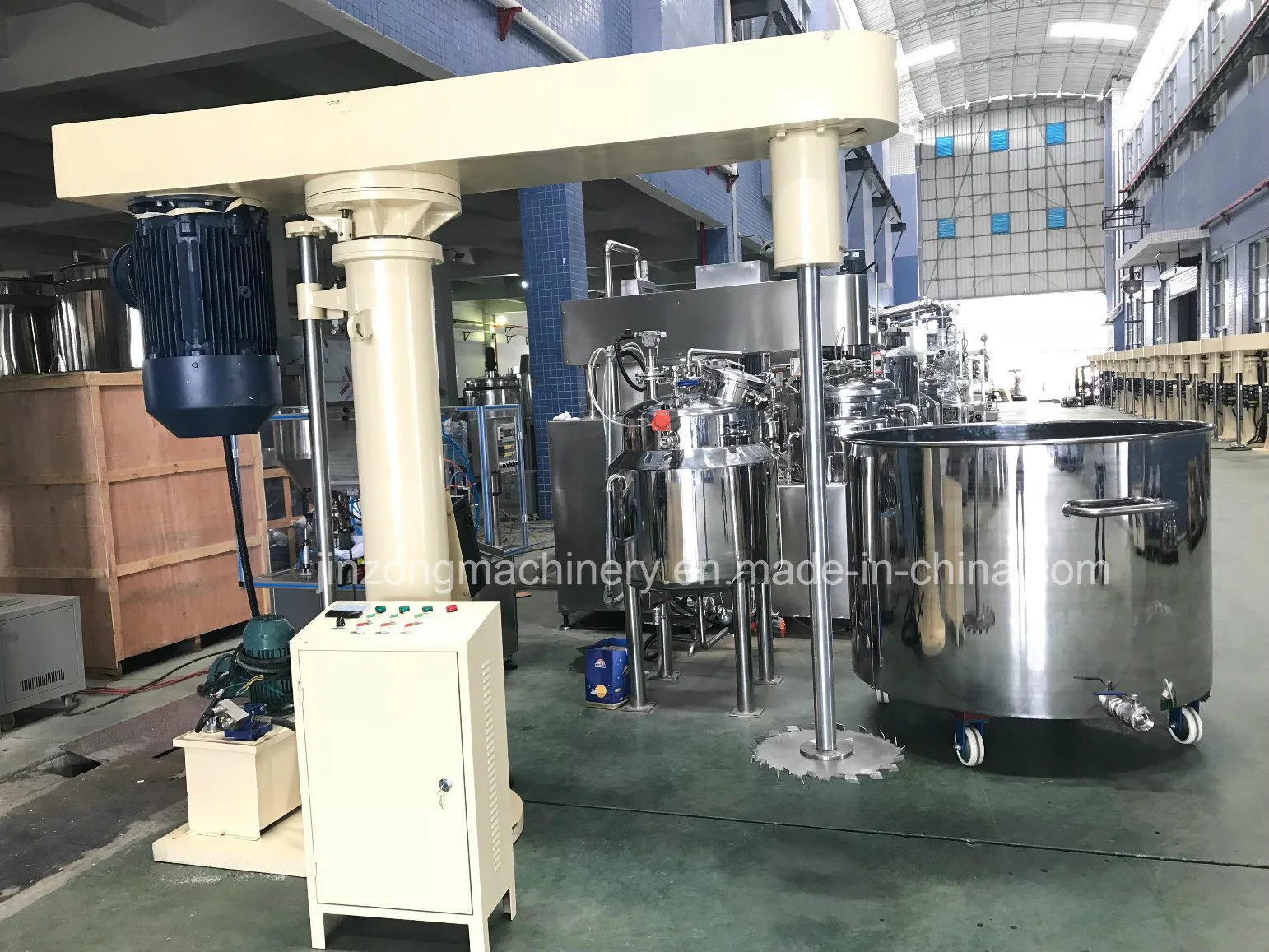

High Speed Disperser for Paint Coating Pigment Ink Chemicals


Product Use

It is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.


Packaging&Shipping


Packaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall

Shipping

FOB port: Guangzhou or Shenzhen

Our Services


-Engineers avaiable to service machinery  overseas

- Technological support

- Guarantee: 1 year

- Custom-make is ok for us

1. Pre-sale service

Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.

a. Select equipment model

b. Design and manufacturer products according to client's special requirements.

c. Train technical persnonal for clients

2. Service during the sale

a. Pre-check and accept products adhead of delivers

b. Send photos of machines every week and send testing video

c. Help clients to draft solving plans

3. After-sales services

Provide considerate services to minimize client's worries

a. Assist client to prepare for the first project.

b. Install and debug the equipment

c. Train initiative to eliminate the trouble rapidly

d. Provide technical replacement

e. After-sales team will solve problems via operating and provide technical instruction

4. Warranty

The warranty is 12 months

Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge

We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.

Customers


-Engineers avaiable to service machinery  overseas

- Technological support

- Guarantee: 1 year

- Custom-make is ok for us

1. Pre-sale service

Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.

a. Select equipment model

b. Design and manufacturer products according to client's special requirements.

c. Train technical persnonal for clients

2. Service during the sale

a. Pre-check and accept products adhead of delivers

b. Send photos of machines every week and send testing video

c. Help clients to draft solving plans

3. After-sales services

Provide considerate services to minimize client's worries

a. Assist client to prepare for the first project.

b. Install and debug the equipment

c. Train initiative to eliminate the trouble rapidly

d. Provide technical replacement

e. After-sales team will solve problems via operating and provide technical instruction

4. Warranty

The warranty is 12 months

Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge

We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.

Customers
High Speed Disperser for Paint Coating Pigment Ink Chemicals


Certifications
High Speed Disperser for Paint Coating Pigment Ink Chemicals

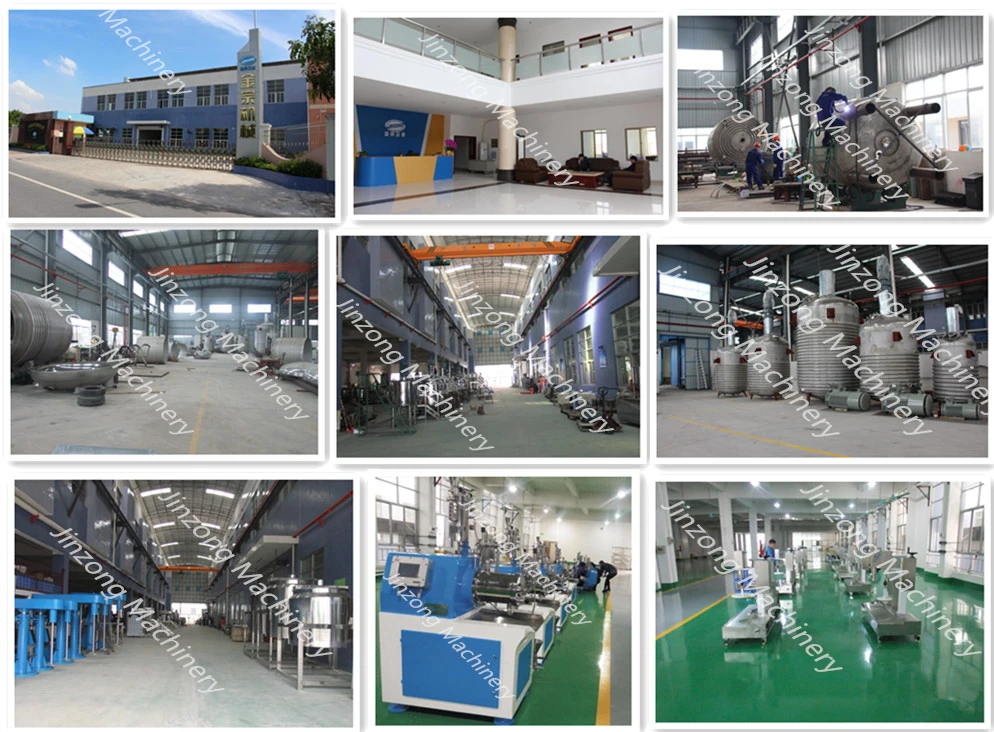

Company Informatons



We are a professional manufacturer of  cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:

1> Chemical Machinery:  reactors, resins production line, high speed disperser, storage tank, sand mill, three rollers mill, filter, filling macihne, paint&coating production line,paint testing machines, etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
High Speed Disperser for Paint Coating Pigment Ink Chemicals


Why us?

1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider

3. Strict quality controls
4. Good reputation in industry.

5. Customized packaging

6. Simple ordering process

7. Easy payment modes

8. Prompt delivery
9. Have a Professional after-sales service engineering team

The product will be a good helper for thousands of manufacturers. Because it allows production process flow to be more efficient and finally helps save production costs. The product has a strong bearing capacity for heavy materials processing. This product acts as a critical role in improving production efficiency. It can greatly business owners to promote business growth. The product has a strong bearing capacity for heavy materials processing.
