Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer

Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Layout TypeVerticleMixing Drum ShapeConical
Additional CapabilitiesMillingOperating typeContinuous Operating
ConditionNewTypeHigh Speed Disperser
TrademarkJINZONGTransport PackageWooden Case
SpecificationCE, SGSOriginGuangdong, China

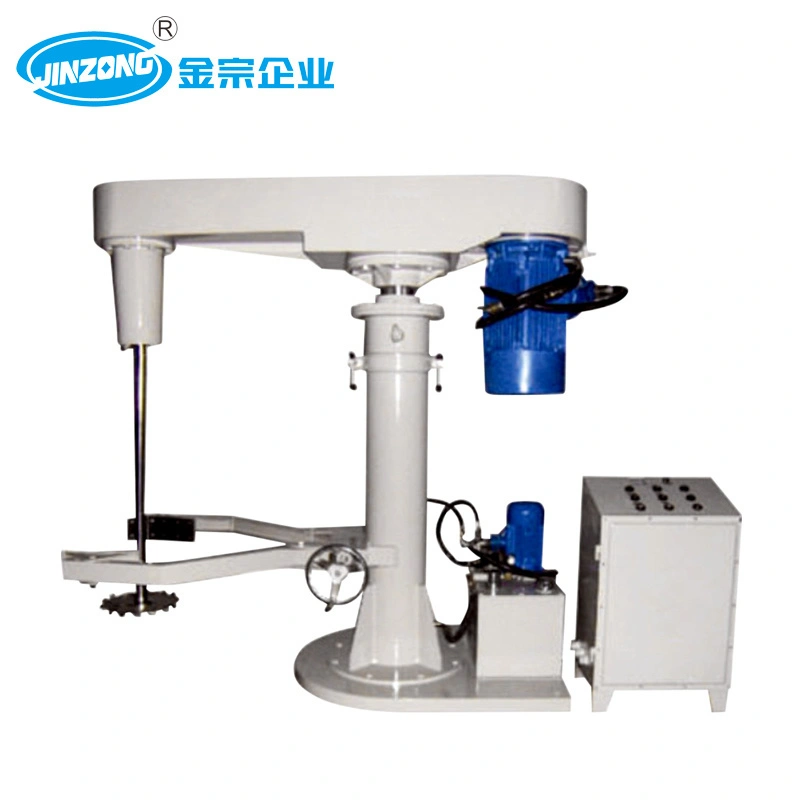

FS series hydraulic lifting high speed disperser

The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.

Technical Parameter


Model



Plate Diameter of Dispersed
(mm)


Motor Power
(kw)

Speed(rpm)


Pump Power
(kw)


Lifting Height
(mm)

FS4

200


0-1450

0.55

900

FS5.5

200

5.5

0.75

1000

FS7.5

250

7.5

0.75

1000

FS11

250

11

0.75

1000

FS15

250

15

1.1

1200

FS18.5

300

18.5

1.1

1200

FS22

300

22

1.1

1200

FS30

350

30

0-1200

1.1

1200

FS37

350

37

1.5

1200

FS45

400

45

1.5

 1200

FS55

450

 55

 1.5

 1200


Product Use

It is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer
Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer
Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer


1. Pre-sale service

Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.

a. Select equipment model

b. Design and manufacturer products according to client's special requirements.

c. Train technical persnonal for clients

2. Service during the sale

a. Pre-check and accept products adhead of delivers

b. Send photos of machines every week and send testing video

c. Help clients to draft solving plans

3. After-sales services

Provide considerate services to minimize client's worries

a. Assist client to prepare for the first project.

b. Install and debug the equipment

c. Train initiative to eliminate the trouble rapidly

d. Provide technical replacement

e. After-sales team will solve problems via operating and provide technical instruction

4. Warranty

The warranty is 12 months

Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge

We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.

Customers
Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer



Certifications
Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer

Company Informatons



We are a professional manufacturer of  cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:

1> Chemical Machinery:  reactors, resins production line, high speed disperser, storage tank, sand mill, three rollers mill, filter, filling macihne, paint&coating production line,paint testing machines, etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer



Why us?

1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider

3. Strict quality controls
4. Good reputation in industry.

5. Customized packaging

6. Simple ordering process

7. Easy payment modes

8. Prompt delivery
9. Have a Professional after-sales service engineering team

Fs Hydraulic Lift High Speed Disperser/Dissolver/Mixer


Every customer is important for Guangdong Jinzong Machinery Co., Ltd.. The product has the merit of full traceability. Guangdong Jinzong Machinery Co., Ltd. has been recognized by the industry for its integrity, strength and product quality. The product has the merit of full traceability.
