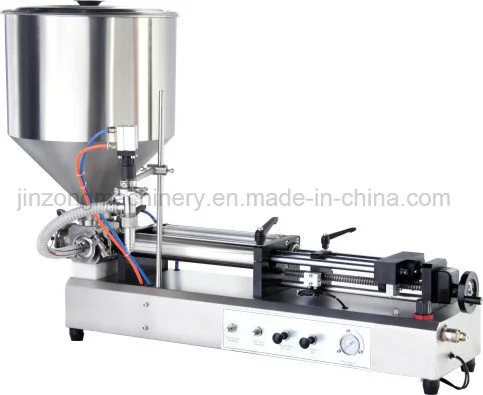

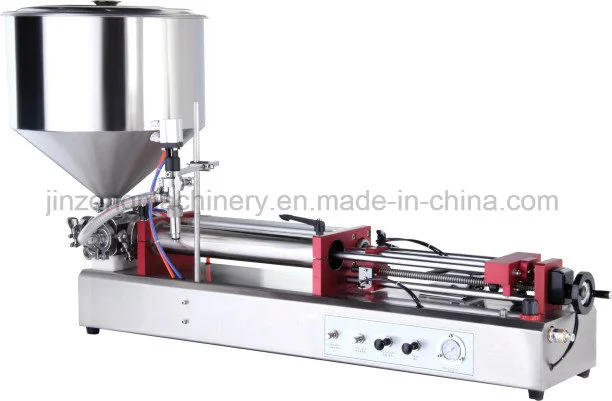

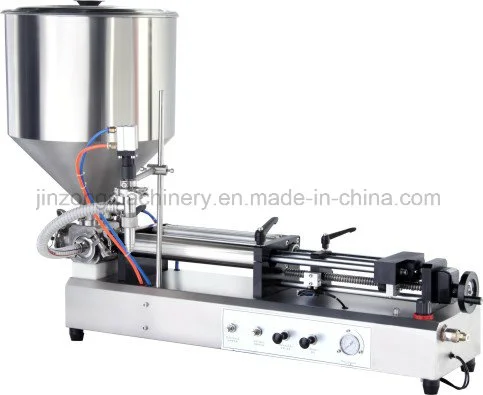

Factory Directly Sale Paste or Cream Filling Machine for Cups, Bottles, or Others
| Model NO. | JGC | Filling Principle | Pressure |
| Packaging Container Lifting Structure | Pneumatic Lifting | Structure | Linear |
| Packaging | Bottle | Packaging Material | Composite Materials |
| Packaging Type | Barrel, Bottles, Cans | Filling Range | 5-5000ml |
| Warranty | 1 Year | Driven | Pneumatic |
| Filling Speed | Adjustable | Filling Precision | Less Than 1% |
| Trademark | Jinzong Machinery | Transport Package | High Quality Plywood Cases of Export Standards |
| Specification | 5-60 ml,10-120 ml,25-250 ml,50-500 ml,100-1000 ml | Origin | Guangdong, China (Mainland) |
| HS Code | 8422303090 |
2. It is more simplified and more convenient for the operation, precision adjustment, filling volume adjustment, equipment cleaning, maintenance of the products etc.
3.This unit adopts pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of anti-explosion environment.
4.This is a sheer pneumatic filling machine for liquids, shampoo, cream or other fluidity products. Simple design and easy to operate. It can fill various liquids, such as shampoo, lotion, etc.
Features:
*The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.
*High productivity.
*Widely used in food, cosmetic, medicine, cream, ointment, chemical industry etc.
*With newly designed figure and compact structure.
*Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling.
*Leakage proof filling system. During filling, the cylinder makes upward and downward movements to drive the closure head.

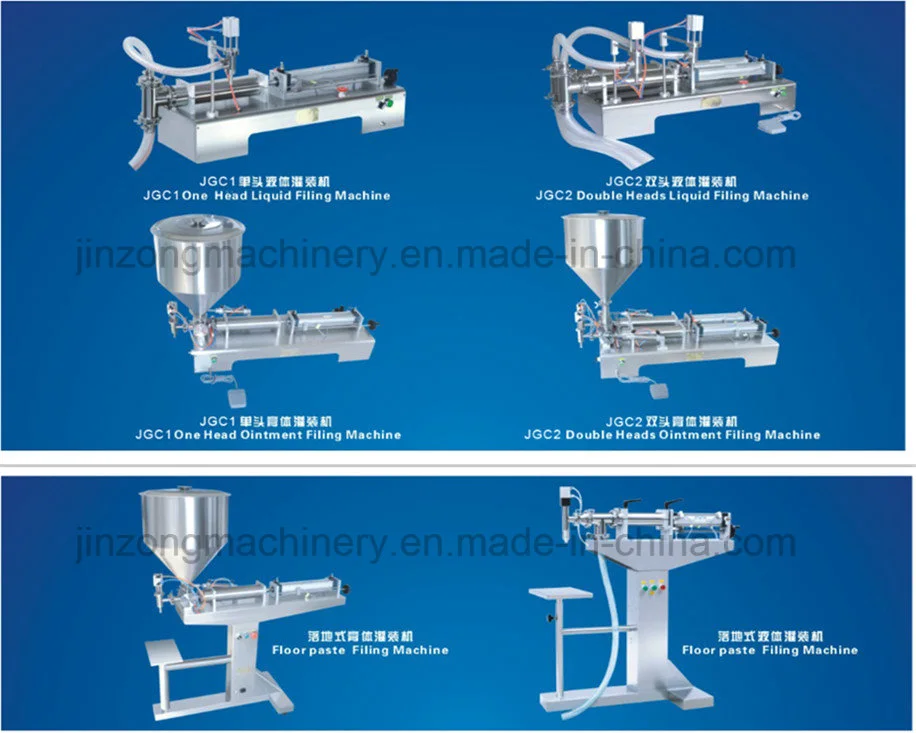

Related filling machines
Technical parameters:
| Model | Filling volume | Filling speed | Air supply |
| JGC-5 | 5-60 ml | 0-45 bottles/min | 0.2-0.6 Mpa |
| JGC-10 | 10-120 ml | 0-35 bottles/min | 0.2-0.6 Mpa |
| JGC-25 | 25-250 ml | 0-30 bottles/min | 0.2-0.6 Mpa |
| JGC-50 | 50-500 ml | 0-30 bottles/min | 0.2-0.6 Mpa |
| JGC-100 | 100-1000 ml | 0-25 bottles/min | 0.2-0.6 Mpa |
| JGC-250 | 250-2500 ml | 0-18 bottles/min | 0.2-0.6 Mpa |
| JGC-500 | 500-5000 ml | 0-12 bottles/min | 0.2-0.6 Mpa |
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sale service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
Company information:
Product lines range from:
1> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
2> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
3> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
Certificates
Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
