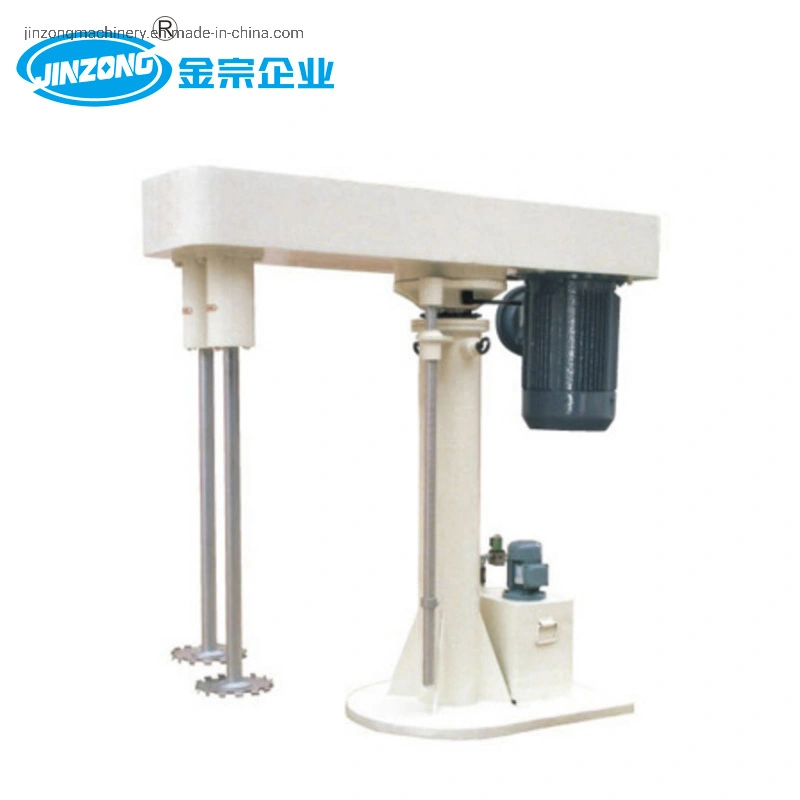

Jinzong Machinery Double Shaft Latex Paint Dispersing Machine
*Product Application
The double shaft disperser is applied to the dissolution, mixing and dispersion of material in many industries such as painting, dyestuff, pigment, medical, paper, and other industries. Especially widely used in latex paint industry.
1, The construction industry: interior and exterior wall coating, cold porcelain paint, colorful paint, anti-corrosion, waterproof coating, flame retardant coating
2, stationery industry: ink, ink, pencil core, advertising color, oil painting
3, chemical industry: pigment, lubricating oil, spices, dyes, emulsified asphalt, emulsified rubber, catalyst, paint coating
4, the pharmaceutical industry: biological products, vaccines, creams, a variety of oral liquid
5, daily chemical industry: toothpaste, shoe polish, jacket oil, cosmetics.
The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.
*Frame type and main powerA) Applicable power for frame fg250: 5.5KW; 7.5KW; 9/11KW; 11KW.
B) Applicable power for frame fg 350: 9/11kw; 11kw; 15kw; 18.5kw; 18.5kw/22kw: 22kw; 30kw.
C) Applicable power for other frame: 2.2kw; 3.7kw; 4kw; 30kw; 32/42kw; 45kw; 55kw; 75kw; 90kw.
*Speed requriementA) Speed type: Single, double, stepless, step(multi)
B) Single speed: Magnetic, frequency cobversion, reducer, shift belt.
C) Speed range: Low speed below 400rpm, high speed below 400-1200rpm, opecial speed over 1200rpm.
Dispersing disc type: Falt disc sawtooth, trident, butterfly, other type
Installation type: Floor stand, platform(platform frame)
Tank dismeter and dispersing wheel: 3-4: 1.
Motor and electric: Expiosion proof, common, special requipment.
FLB Double shaft disperser technical parameters| Type | FLB11 | FLB30 | FLB45 | FLB75 |
| Motor Power | 15 | 30 | 45 | 75 |
| Speed(r/min) | 0~1200 | 0~1200 | 0~1200 | 0~1200 |
| Lifting height(mm) | 900 | 1200 | 1400 | 1600 |
| Pump power(kw) | 0.55 | 0.75 | 1.1 | 2.2 |
| Container volume(L) | 500 | 1000 | 2000 | 3000 |
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1>
Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
*Our strength 1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team. 5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
*After-sales service:1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*
ONE-STOP SERVICESAccording to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
