Cosmetic Cream Paste Single-Nozzled Filling Machine

Cosmetic Cream Paste Single-Nozzled Filling Machine

Get Latest Price
Get the latest price
Quantity Needed:
Model NO.JGCFilling PrinciplePressure
Packaging Container Lifting StructurePneumatic LiftingStructureLinear
PackagingBottlePackaging MaterialComposite Materials
Packaging TypeBarrel, Bottles, CansFilling Range5-5000ml
Warranty1 YearDrivenPneumatic
Filling SpeedAdjustableFilling PrecisionLess Than 1%
TrademarkJinzong MachineryTransport PackageHigh Quality Plywood Cases of Export Standards
Specification5-60 ml,10-120 ml,25-250 ml,50-500 ml,100-1000 mlOriginGuangdong, China (Mainland)
HS Code8422303090
Product Description

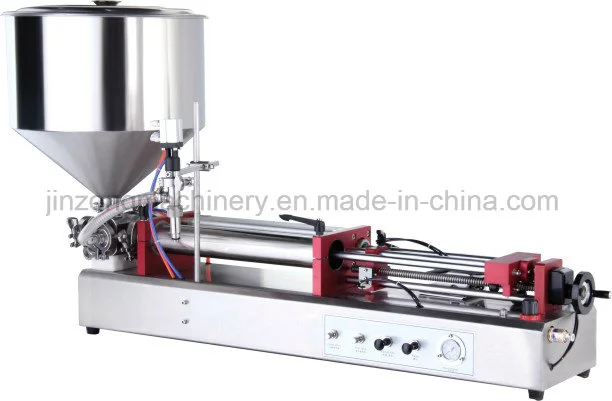

Cosmetic Cream Paste Single-Nozzled Filling Machine

Cosmetic Cream Paste Single-Nozzled Filling Machine
1.This unit is developed on the basis of the new design, and increase some additional function according to overseas similar products. Filler is in reference and an increase of some additional features.
2. It is more simplified and more convenient for the operation, precision adjustment, filling volume adjustment, equipment cleaning, maintenance of the products etc.
3.This unit adopts pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of anti-explosion environment.
4.This is a sheer pneumatic filling machine for liquids, shampoo, cream or other fluidity products. Simple design and easy to operate. It can fill various liquids, such as shampoo, lotion, etc.

*The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.
*High productivity.
*Widely used in food, cosmetic, medicine, cream, ointment, chemical industry etc.
*With newly designed figure and compact structure.
*Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling.

*Leakage proof filling system. During filling, the cylinder makes upward and downward movements to drive the closure head.

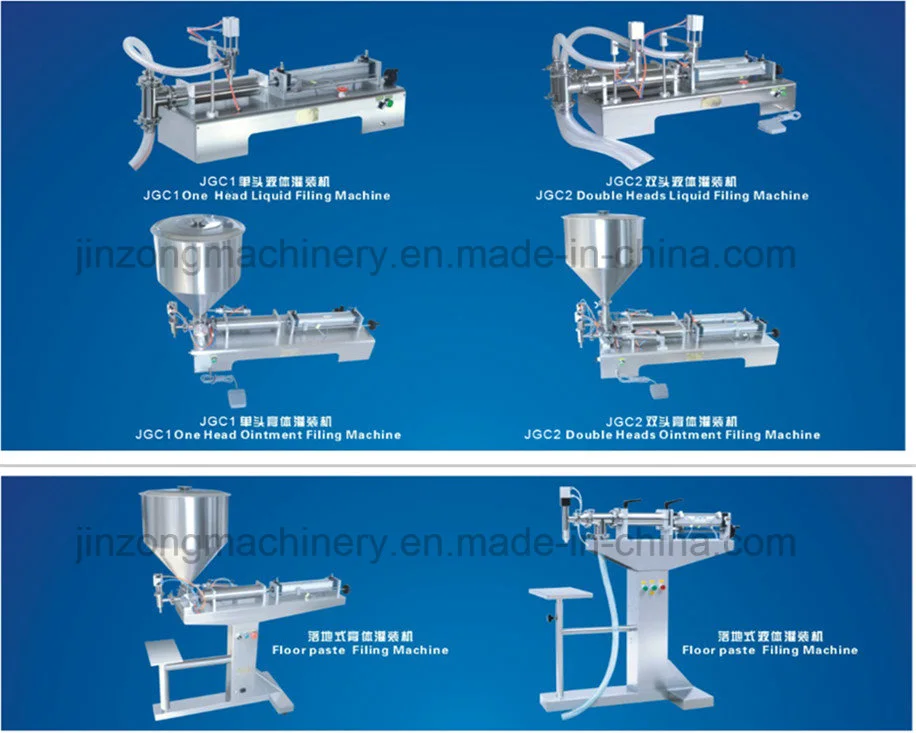

Related filling machines

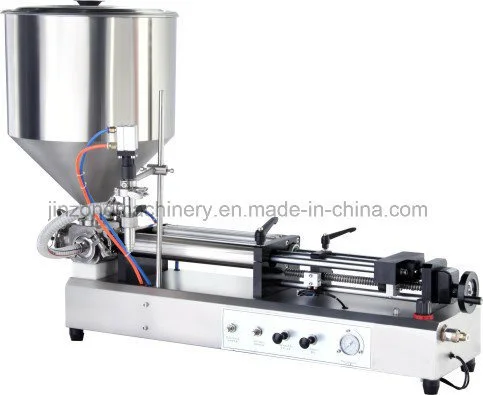

Cosmetic Cream Paste Single-Nozzled Filling Machine

Technical parameters:
ModelFilling volumeFilling speedAir supply
JGC-55-60 ml0-45 bottles/min0.2-0.6 Mpa
JGC-1010-120 ml0-35 bottles/min0.2-0.6 Mpa
JGC-2525-250 ml0-30 bottles/min0.2-0.6 Mpa
JGC-5050-500 ml0-30 bottles/min0.2-0.6 Mpa
JGC-100100-1000 ml0-25 bottles/min 0.2-0.6 Mpa
JGC-250250-2500 ml0-18 bottles/min0.2-0.6 Mpa
JGC-500500-5000 ml0-12 bottles/min0.2-0.6 Mpa
1> Engineering design
2> Equipment model selection guide
3> equipment machinig

After-sale service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to  abroad  installation and debugging.

Company information:

Product lines range from:

1> Chemical Machinery:  reactor, mixing equipment,separation equipment, storage tank etc.
2> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
3> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.

Cosmetic Cream Paste Single-Nozzled Filling Machine

Why us?

1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider

3. Strict quality controls
4. Good reputation in industry.

5. Customized packaging

6. Simple ordering process

7. Easy payment modes

8. Prompt delivery
9. Have a Professional after-sales service engineering team


It can be customized in a wide range of specifications according to intended applications. The product has the advantage of low energy consumption. The loyalty of our staff keeps this product strong business competition. The product has the advantage of low energy consumption.
