Complete Wood Paint Production Line Equipment
| Layout Type | Verticle | Mixing Drum Shape | Conical |
| Additional Capabilities | Milling | Operating type | Continuous Operating |
| Condition | New | Function | Vacuum, Dispersing, Cooling |
| Name | Wood Paint Production Line | Trademark | Jinzong |
| Transport Package | Wooden Case | Specification | Customer design |
| Origin | Guangzhou | HS Code | 8479820090 |
It's suitable for the matching and mixing of the color paints&coatings industry,as well as the mixing of liquid-liquid, liquid-solid materials in other industries.
With a reasonable structure and strong stirring function, this machine can match and mix paints evenly and mix materials very well.
Complete wood paint production line/equipment
Production process: batching, pre-mixing, making white paste, letdown, filtering and filling.
Viscosity ≤200,000 cps;
Water Based Paint Dispersing Tank Parameters
| Type | 500L | 1000L | 2000L | 3000L | 4000L | 5000L | 6000L |
| Motor power(kw) | 5.5 | 11 | 22 | 30 | 45 | 55 | 110 |
| Capacity(L) | 500L | 1000L | 2000L | 3000L | 4000L | 5000L | 6000L |
| Rotation speed(rpm) | 0~1400 | 0~1400 | 0~1400 | 0~960 | 0~960 | 0~960 | 0~960 |
| Impeller dia.(mm) | 200 | 250 | 350 | 350 | 450 | 450 | 600 |
| Quantity of impeller | 1 | 1 | 1 | 2 | 2 | 2 | 3 |

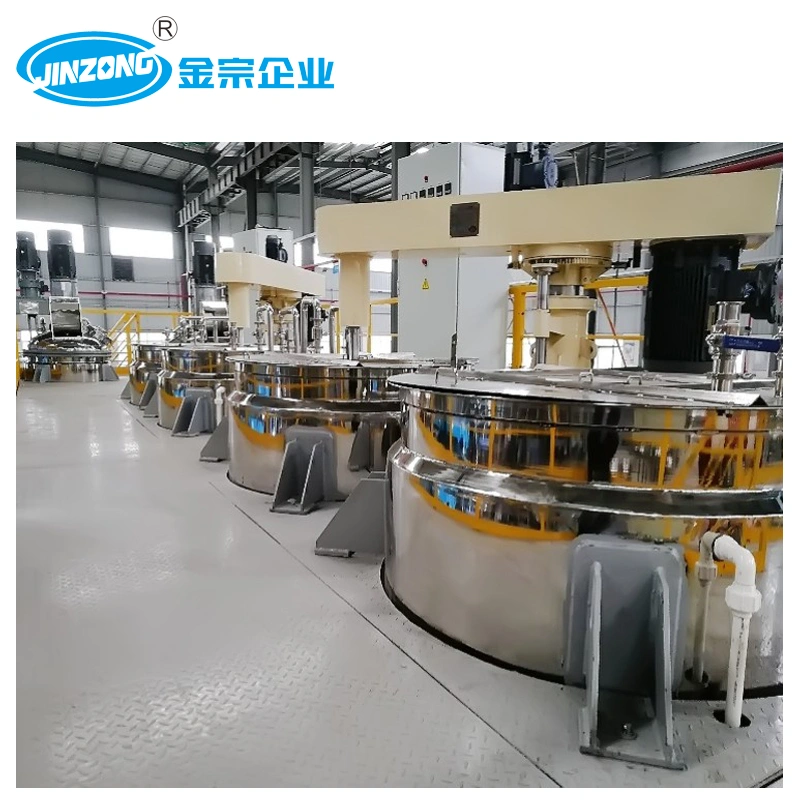

Water Based Paint Dispersing Tank Introduction
-Equipment for pre-mixing the solid-liquid or liquid-liquid raw materials, used for as stirrer, blender, disperser and others.
-For paint, coating, pigments, inks, detergent, lithium anode paste, textile auliliary, etc.
-Conbine milling and dispersing funciton.
-High efficiency, easy operation, maintence, cleaning and changing color.
-Applicable for independent tank operation an high/low viscosity paste.
Wood paint manufacturing line application
Paste-like coating: granite paint, elastic paint, road marking paint, stone paint, wall putty, car putty, etc.

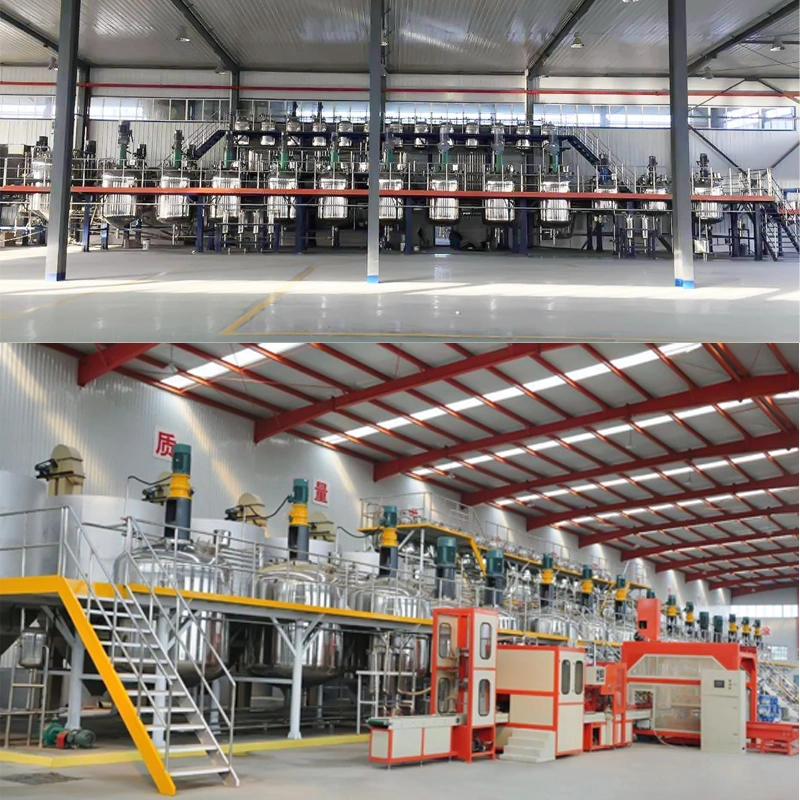

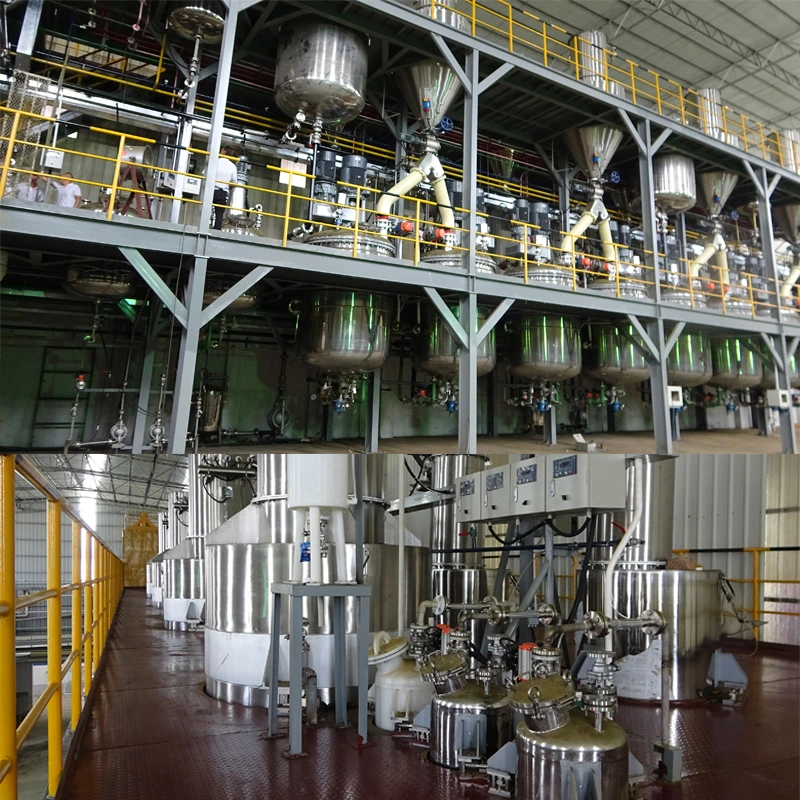

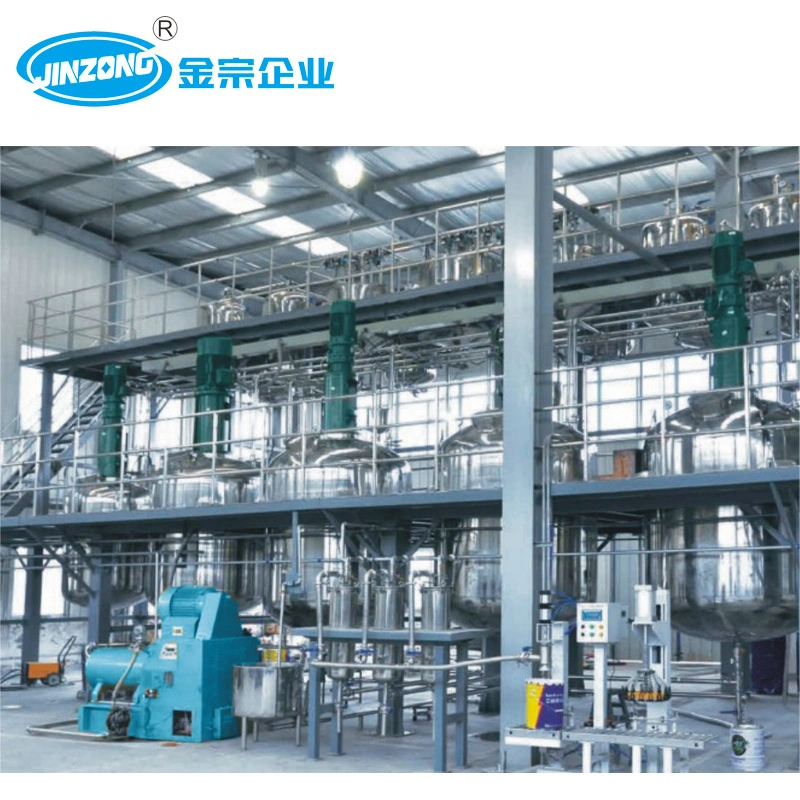

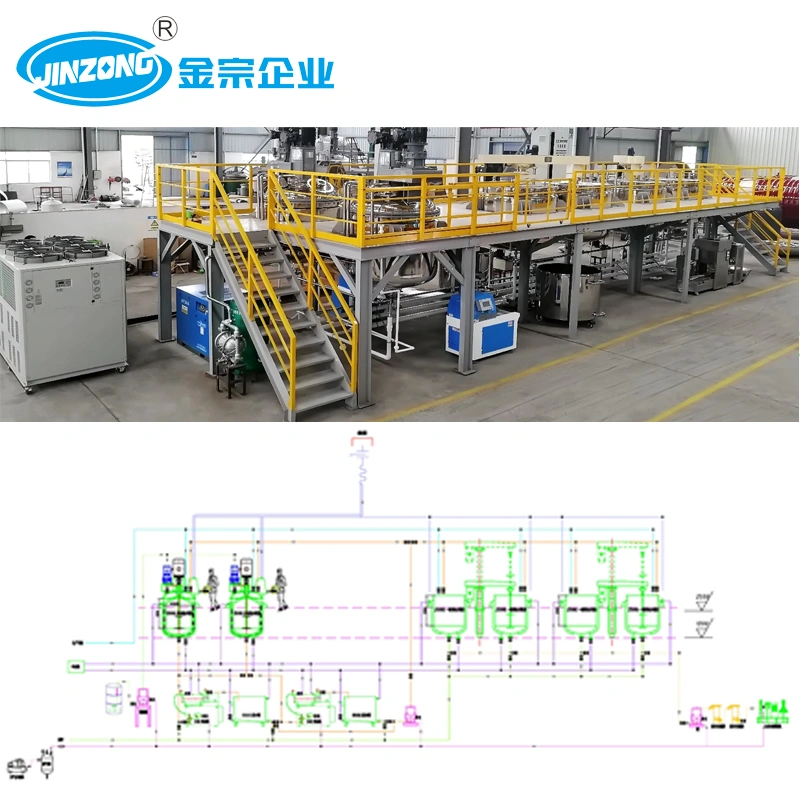

The whole set of production line includes feeding system, outlet system, filtering system, paint mixing system, cooling system, pipeline system, electrical control system, operating platform and filling system.
1. Introduction
-Equipment for pre-mixing the solid-liquid or liquid-liquid raw materials, used for as stirrer, blender, disperser and others.
-For paint, coating, pigments, inks, detergent, lithium anode paste, textile auliliary, etc.
-Conbine milling and dispersing funciton.
-High efficiency, easy operation, maintence, cleaning and changing color.
-Applicable for independent tank operation an high/low viscosity paste.

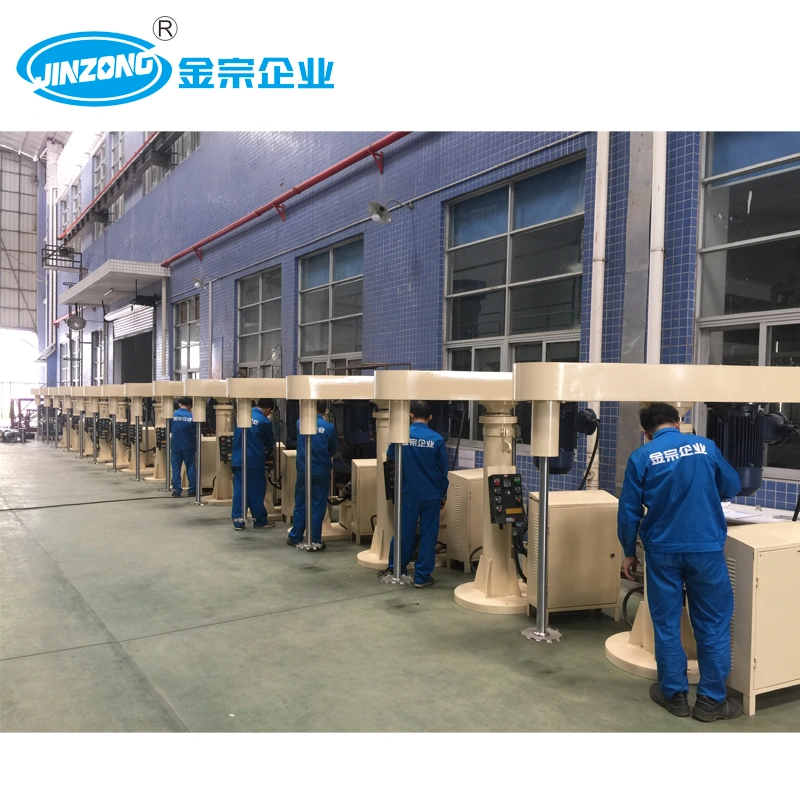

2. Main Features
- Configure with qualified inverter, various speed control
- Hydraulic lifting, can be moved around
-Integrate dispersing and grinding in on process
-Vacuum,jacket cooling
3. Function selection
-Imported or domestic top brand inverter for option
-Custom-made design is available, such as Ex-proof, vacuum, sealed operation.
-Belt or not clamping for optional
4. Product Usages
Vacuum High Speed Disperser is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.
5. Packaging & ShippingPackaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
-Engineers avaiable to service machinery overseas
- Technological support
- Guarantee: 1 year
- Custom-make is ok for us
6.1. Pre-sale service
Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.
a. Select equipment model
b. Design and manufacturer products according to client's special requirements.
c. Train technical persnonal for clients
6.2. Service during the sale
a. Pre-check and accept products adhead of delivers
b. Send photos of machines every week and send testing video
c. Help clients to draft solving plans
6.3. After-sales services
Provide considerate services to minimize client's worries
a. Assist client to prepare for the first project.
b. Install and debug the equipment
c. Train initiative to eliminate the trouble rapidly
d. Provide technical replacement
e. After-sales team will solve problems via operating and provide technical instruction
6.4. Warranty
The warranty is 12 months
Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge
We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.
7.Company Information:
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:
1> Chemical Machinery: reactors, resins production line, high speed disperser, storage tank, sand mill, three rollers mill, filter, filling macihne, paint&coating production line,paint testing machines, etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
