China Supplier Paints Coating Liquid Ink Dispersers Mixers
| Model NO. | FL | Layout Type | Verticle |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling |
| Operating type | Continuous Operating | Condition | New |
| Power(W) | 2.2kw-110kw | Voltage | 380V/220V 50Hz/60Hz |
| Warranty | 1 Year | Use | Paint Coating Liquid Ink Resin Adhesive |
| Configuration | Explosion Proof | Material Tank | SUS 304 Stainless Steel |
| Trademark | Jinzong Machinery | Transport Package | High Quality Plywood Cases of Export Standards |
| Specification | Prevail | Origin | Guangdong, China (Mainland) |
| HS Code | 8474390000 |
China supplier Dispersers and Mixers for Manufacture paints, dyestuff, pigment

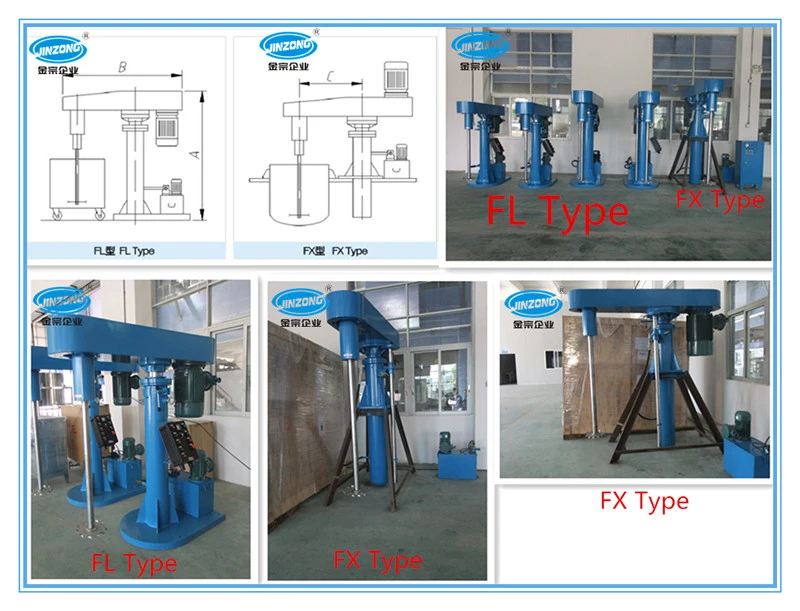

It has two types FL and FX according to different installation
Features:
Stepless variable speed

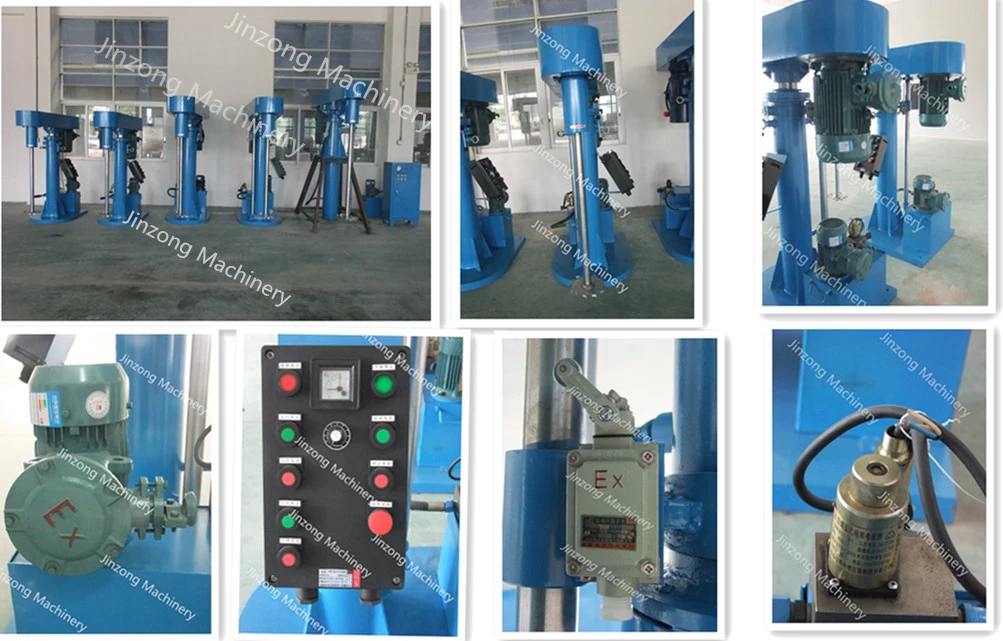

Explosion- proof Electric box, Explosion- proof motor, Explosion- proof travel switch
Superior performance
China supplier Dispersers and Mixers for Manufacture paints, dyestuff, pigment is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment dfood industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and
Technical Information:

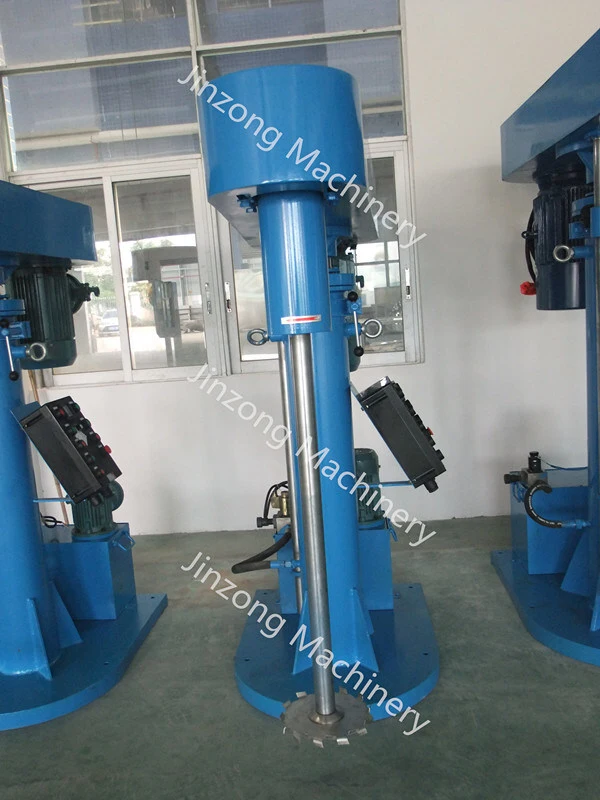

FL/FX Type High Speed Disperser
| Type | FL2.2/3/4 | FL5.5/7.5/11 | FL15/18.5/22 | FL30/37/FX37 | FL45/FX45 | FL90/FX90 |
| Motor power(kw) | 2.2/3/4 | 5.5/7.5/11 | 15/18.5/22 | 30/37/37 | 45 | 45 |
| Split shaft speed bulk(r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1000 |
| Wheel dia. Of disperser(mm) | 200 | 250 | 300 | 350-400 | 450 | 600 |
| Rack lift travel(mm) | 700 | 900 | 1200 | 1200 | 1600 | 1600 |
| Pump power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 |
| Cylinder volume of material(L) | 100-200 | 400-600 | 600-1000 | 1000-2000 | 1000-2500 | 5000 |
| Weight(kg) | 400 | 800 | 1500 | 1700 | 2100 | 2600 |
| Dimensions(mm) | A | 1700 | 1750 | 2200 | 2600 | 2700 |
| B | 1300 | 1800 | 2100 | 2700 | 3000 | |
| C | 600 | 900 | 1100 | 1400 | 1600 | |
| W(with) | 540 | 350 | 900 | 1000 | 1500 |
The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting, dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.
Our Service:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
company information:

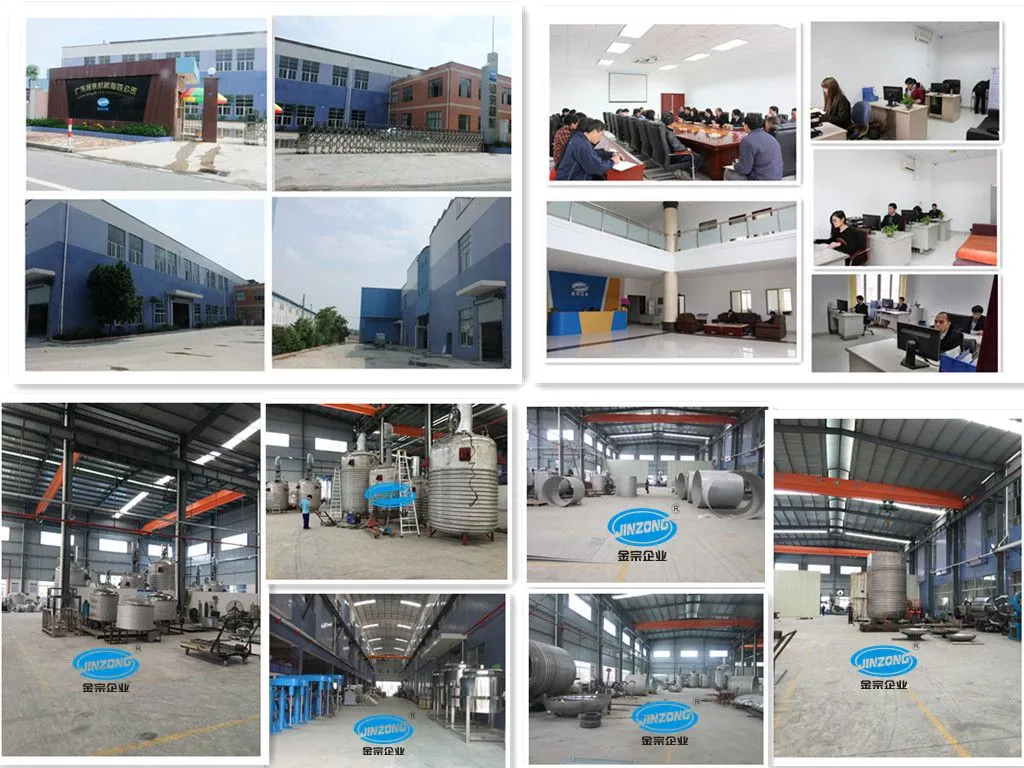

Guangzhou Jinzong Machinery(as Jinzong Machinery) is a technology innovation enterprise integrating design, manufacturing and system integration of chemical machinery & equipment which was established in 1999, covers an area of 18,000 square meters in Zhaoqing city. Jinzong Machinery specializes in research, development and auxiliary service of chemical production equipment for resin, paint, ink, adhesive and etc.
