Product Information
Customer Reviews

Model NO.	JGC	Filling Principle	Pressure
Packaging Container Lifting Structure	Pneumatic Lifting	Structure	Linear
Packaging	Bottle	Packaging Material	Composite Materials
Packaging Type	Barrel, Bottles, Cans	Filling Range	5-5000ml
Warranty	1 Year	Driven	Pneumatic
Filling Speed	Adjustable	Filling Precision	Less Than 1%
Trademark	Jinzong Machinery	Transport Package	High Quality Plywood Cases of Export Standards
Specification	5-60 ml,10-120 ml,25-250 ml,50-500 ml,100-1000 ml	Origin	Guangdong, China (Mainland)
HS Code	8422303090

Product Description

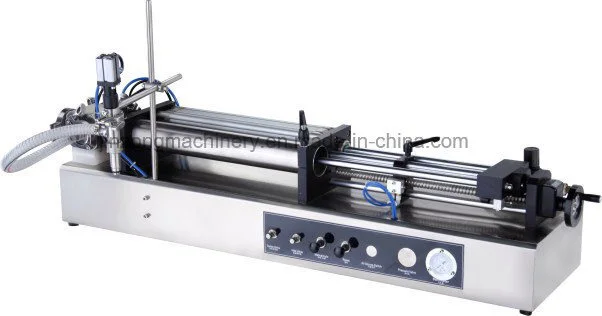

Ce Quality Liquid Detergent/Tomato Paste Filling Machine

1.This unit is developed on the basis of the new design, and increase some additional function according to overseas similar products. Filler is in reference and an increase of some additional features.
2. It is more simplified and more convenient for the operation, precision adjustment, filling volume adjustment, equipment cleaning, maintenance of the products etc.
3.This unit adopts pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of anti-explosion environment.
4.This is a sheer pneumatic filling machine for liquids, shampoo, cream or other fluidity products. Simple design and easy to operate. It can fill various liquids, such as shampoo, lotion, etc.

Features:
*The machine is made of imported mechanical parts, pistons, cylinders, stainless steel and PTFE.
*High productivity.
*Widely used in food, cosmetic, medicine, cream, ointment, chemical industry etc.
*With newly designed figure and compact structure.
*Manual and automatic mutual switching function. When the machine is under the "automatic" status, the machine will automatically carry out continuous filling according to the set speed. When the machine is under the "manual" status, the operator steps on the pedal to realize the filling.
*Leakage proof filling system. During filling, the cylinder makes upward and downward movements to drive the closure head.

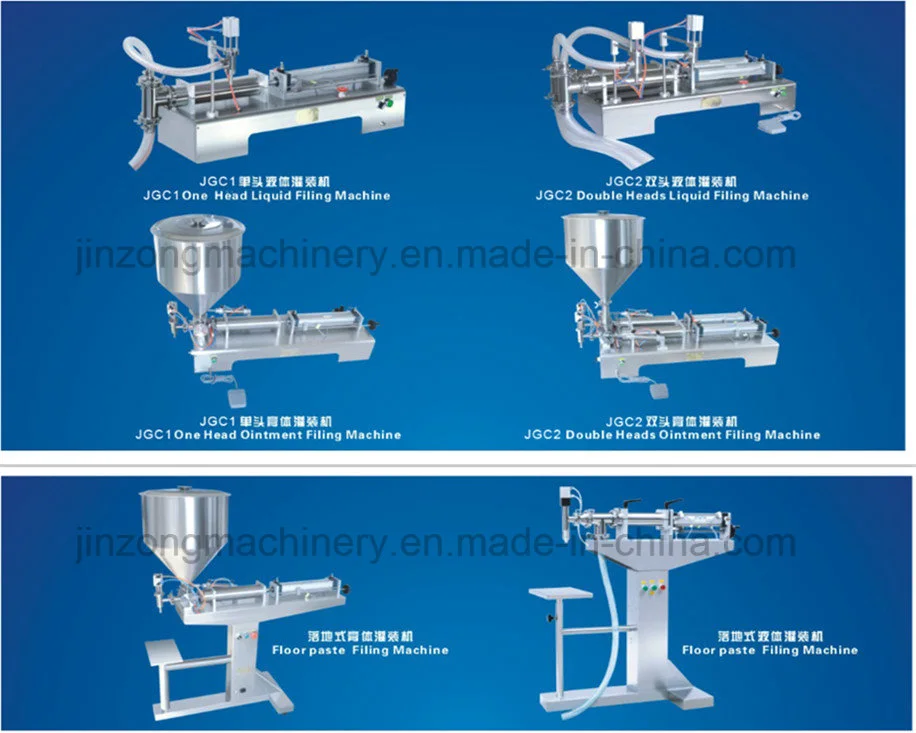

Related filling machines
Ce Quality Liquid Detergent/Tomato Paste Filling Machine

Technical parameters:

Model	Filling volume	Filling speed	Air supply
JGC-5	5-60 ml	0-45 bottles/min	0.2-0.6 Mpa
JGC-10	10-120 ml	0-35 bottles/min	0.2-0.6 Mpa
JGC-25	25-250 ml	0-30 bottles/min	0.2-0.6 Mpa
JGC-50	50-500 ml	0-30 bottles/min	0.2-0.6 Mpa
JGC-100	100-1000 ml	0-25 bottles/min	0.2-0.6 Mpa
JGC-250	250-2500 ml	0-18 bottles/min	0.2-0.6 Mpa
JGC-500	500-5000 ml	0-12 bottles/min	0.2-0.6 Mpa

Service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig

After-sale service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.

Company information:

Product lines range from:

1> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
2> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
3> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.

Certificates
Ce Quality Liquid Detergent/Tomato Paste Filling Machine

Why us?

1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider

3. Strict quality controls
4. Good reputation in industry.

5. Customized packaging

6. Simple ordering process

7. Easy payment modes

8. Prompt delivery
9. Have a Professional after-sales service engineering team

The product has been widely recognized in the industry for its integrity. The product is easy to install, which greatly save human resources. The product takes an invincible position in the market and has very extensive and applied foreground. The product is easy to install, which greatly save human resources.
