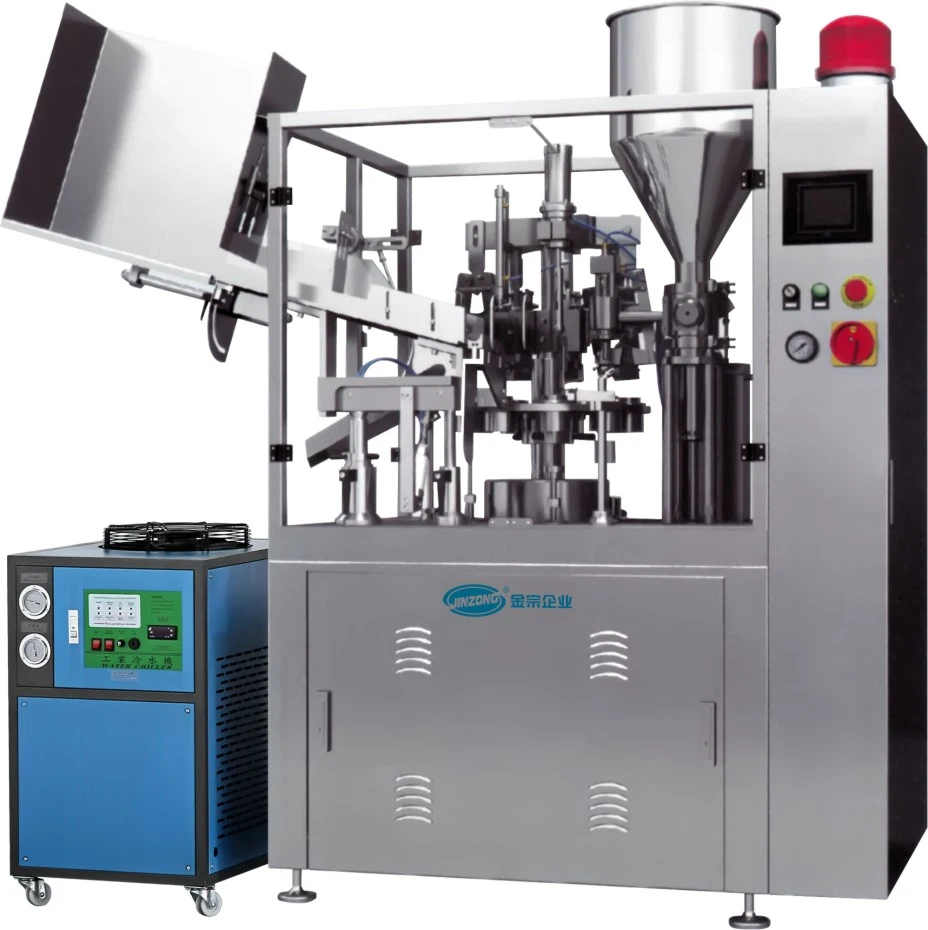

Automatic Toothpaste Tube Filling and Sealing Machine Packing Machine

Automatic toothpaste Tube Filling and Sealing Machine Packing Machine

Automatic toothpaste tube filling and folding tail machine is designed and manufactured according to the latest developed foreign advanced technology. All parts contacted with material are made of   stainless steel, this machine is special for aluminium and plastic tube filling and sealing, automatic filling tubes can be done automatically, folding tail and output, the maximum operating speed of 40 pic/ min, frequency control. Filling accuracy is 1%.


Characteristics:
The machine sealing part: aluminum side after three or five fold, coding, automatic code print. In order to avoid leakage, we adopts Japanese import sealing ring for this machine. The whole machine has advanced structure, advanced configuration, convenient operation, convenient maintenance, easy to clean, and so on. In addition, the cam is located in the table to facilitate the replacement of aluminum species.

Specification:
Power supply:Single phase 220V±10% 50HZ( customizable)
Filling range:10-75ml20-150ml
Accuracy:≤+/-1%
Motor power:2.2kw
Tube diameter: Φ10-50mm
Capacity:30-40 pic/min( adjustable )
Compressed air:pressure 0.6-0.7mpa
Dimensi
ons: 1100*600*1300mm
Weight: 230kg

Touch screen controller
Optional:
Tube feeding system:slanting hanging type automatic tube feeding tank (automatic type)
Saddle-shaped tube sealing device  (automatic type)
Jacket type insulation hopper
Mixing system for hopper
Automatic material feeding system(pump) (automatic type)
Final product transport device  (automatic type)

1.Technical parameter of toothpaste tube filing and sealing machine:
Characteristic:
The control parts of the machine are composed of intelligent Man-computer interface, large touch screen display control panel, including temperature setting, motor speed, filling speed, direct screen display, screen display and screen control.The components of the machine which touched the filling material are made of stainless steel SUS304 or SUS316L. Transparent cover   feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, atuto-stop, process of hose-feeding  and setting, filling and sealing, the ejecting are all auto manically controlled. Digital count device is the filling head is put inside the material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are avaiable to meet different need of clients.

Toothpaste tube filing and sealing machine Product Description:
Tube filling and sealing machine plastic tube filling and sealing machine Description
this machine is use for tube filling and sealing machine, it applies chocolate jam, ketch up, cheese, cream,
cosmetic,  Mayonnaise, tooth paste, jelly etc high viscosity product, will be use in tube package.
