Automatic Round Bottles Labeling Machine

Packaging	Bottles	Power	1200W
Dimension	1950X720X1570mm	Labeling Speed	3000-6500PCS/H
Trademark	JINZONG MACHINE	Transport Package	Wooden Case
Origin	China

Technical Specification

1. Specification of Automatic Labeling Machine:

No.	Item	Details
1	Labeling Heads Qty	1
2	Application of label type	adhesive sticker,etc
3	Width of label(height)	Max:200mm
4	Length of Label	Max:400mm
5	Size of scraper/hair brusher	20-200mm
6	Dimension of the bottle	Thickness≤90mm Height≤450mm
7	Labeling Speed	45m/min
8	Speed of conveyor	0-30m/Min
9	Capacity	3000-6500pcs/h
10	Labeling locating precision	±0.2mm
11	Labeling speed	±1mm
12	Label roller outside diameter	350mm
13	Label roller inside diameter	76.2mm
14	Label roller loosen device	1set
15	Recycling roller diameter	Max:180mm
16	Label recycling way	Paper plate rewinding the label
17	Height of conveyor	950±50mm
18	Correction tape adjusting	Screw adjusting
19	Net weight(kg)	250kg
20	Bottle transport direction	From left to right
21	Labeling direction	From left to right
22	Size	1950mmW720mmH1570mm
23	Power Supply	220V/50Hz 1200W

Applicable Packaging Materials
Label Material	All the paper/film labels
Thickness of label	>25μm
Material of Labels foundation	Have enough tension,in general,most of factory use Glasin/PET labels foundation
Labels spacing	Mininum:2.54mm
Label size allowed error	±0.3 mm
Label maximum width	< 200mm

Electric Configuration of the labeling macine:

1	Siemens CPU224 CN	6ES7 214-1AD23-OXB8		SIEMENS	1	set
2	PLC	PWS5610T-S		HITECH	1	set
3	Servo Drivers	MCDDT3520003	220V/750W	Panasonic	1	set
4	Servo Motor	MHMDD082P1U	750W/3AC-120V	Panasonic	1	set
5	Single-phase Induction Motor	M9MZ60G4YGA	220V/60W	Panasonic	1	set
6	Capacitor Run Induction Motor	M91Z60GV4GGA	220V/60W	Panasonic	1	set
7	Motor Speed Controller	MGSDB2	220V	Panasonic	1	pcs
8	Starting Capacitance		5uF/450V	Panasonic	1	pcs
9	Reducer	MY9G50B		Panasonic	1	set
10	Single-phase Vertical Motor		750W	WANXIN	1	set
11	Frequency Converter	VLT-FC51	0.75KW	Danfoss	1	set
12	Frequency Converter	VLT-FC51	0.37KW	Danfoss	1	set
13	Sensor	GS61/6D.3-S8		LEUSE	2	pcs
14	FOS	FS-V11P	PNP	KEYENCE	1	set
15	Switch		220V/10A	Made in China	1	pcs

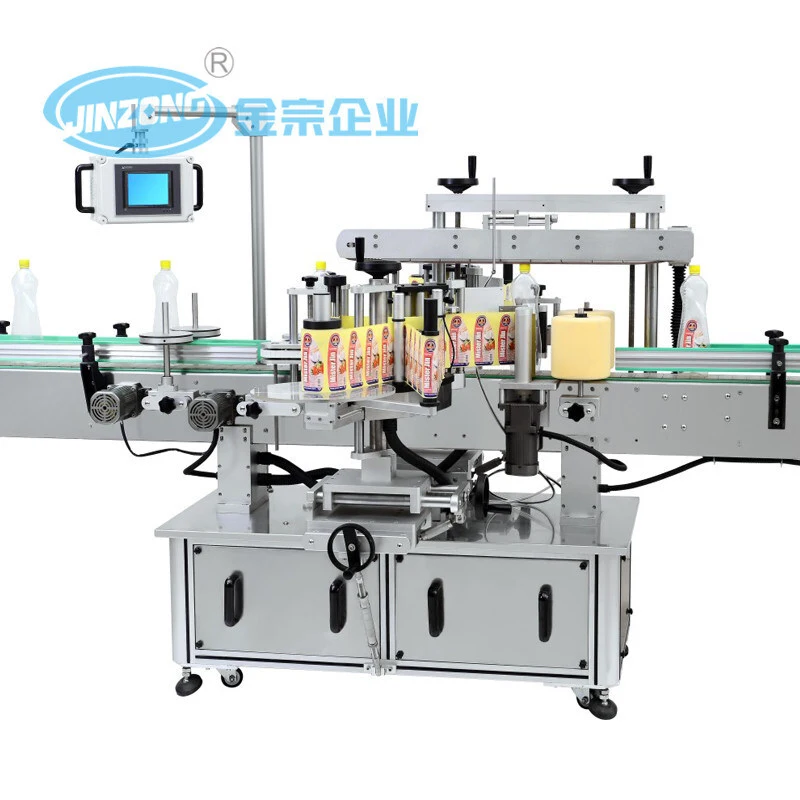

Photo of the labeling machine

The pressure to control costs and maximize profitability has led many manufacturers to choose this product. It is very useful in enhancing productivity. The product has high sensitivity to quickly respond to users' operation. The use of this product provides an opportunity for a growing social and economic environment and a higher standard of living. The product has high sensitivity to quickly respond to users' operation.
