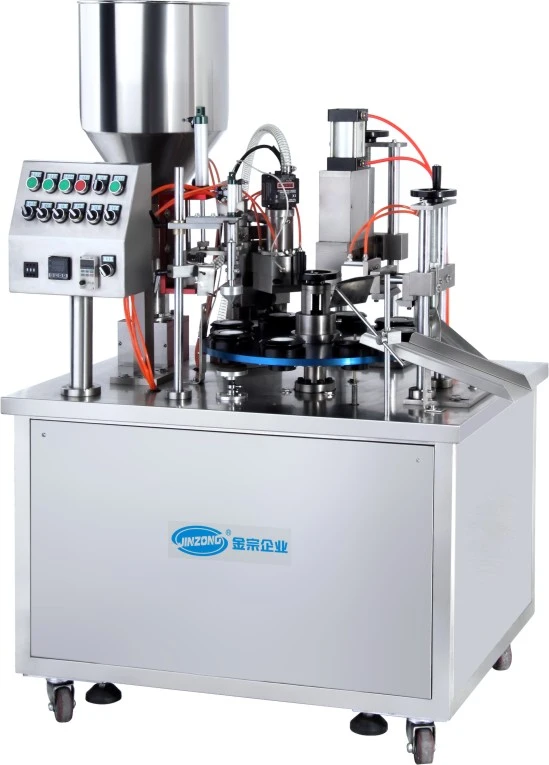

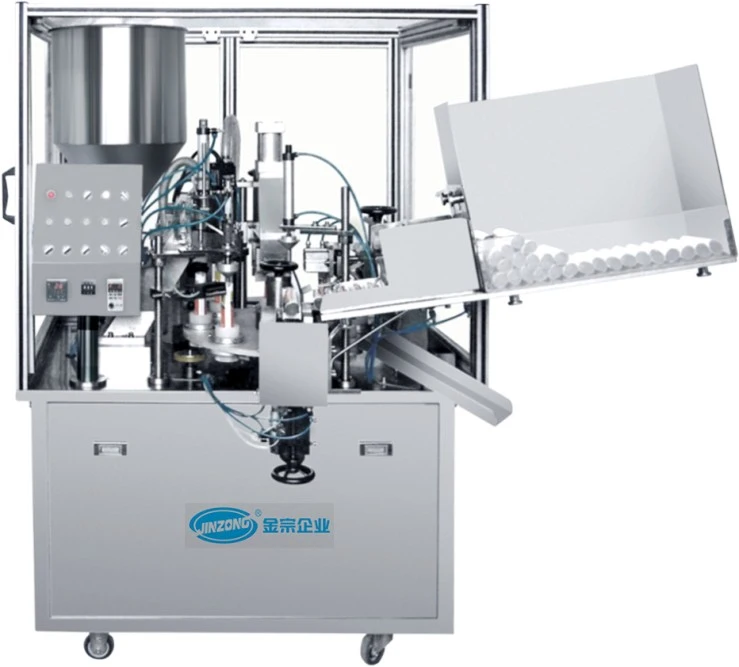

Automatic Laminated Tube Filling-Sealing Machinesemi-automatic laminated tube filling and sealing machine is designed and manufactured according to the latest developed foreign advanced technology. All parts contacted with material are made of stainless steel, this machine is special for aluminium tube filling and sealing, automatic filling tubes can be done automatically, folding tail and output, the maximum operating speed of 40 pic/ min, frequency control. Filling accuracy is 1%.
Characteristics:
The machine sealing part: aluminum side after three or five fold, coding, automatic code print. In order to avoid leakage, we adopts Japanese import sealing ring for this machine. The whole machine has advanced structure, advanced configuration, convenient operation, convenient maintenance, easy to clean, and so on. In addition, the cam is located in the table to facilitate the replacement of aluminum species.
Specification:
Power supply:Single phase 220V±10% 50HZ( customizable)
Filling range:10-75ml20-150ml
Accuracy:≤+/-1%
Motor power:2.2kw
Tube diameter: Φ10-50mm
Capacity:30-40 pic/min( adjustable )
Compressed air:pressure 0.6-0.7mpa
Dimensi
ons: 1100*600*1300mm
Weight: 230kg
Touch screen controller
Optional:
Tube feeding system:slanting hanging type automatic tube feeding tank (automatic type)
Saddle-shaped tube sealing device (automatic type)
Jacket type insulation hopper
Mixing system for hopper
Automatic material feeding system(pump) (automatic type)
Final product transport device (automatic type)
