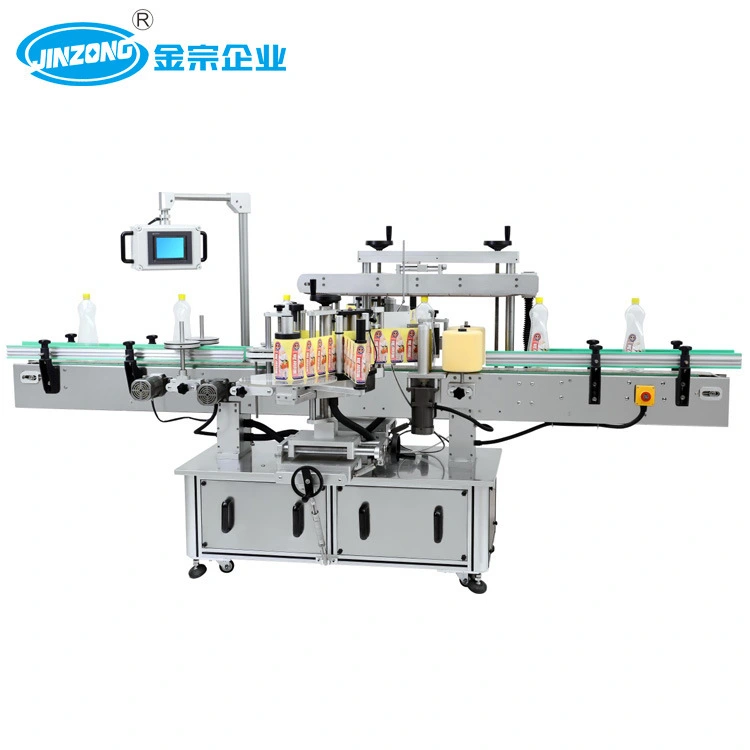

Automatic Labeling Machine for Round Bottle, Round Bottle Labeling Machine
| Model NO. | JZ-R80 | Packaging | Bottles |
| Power | 1200W | Dimension | 1950X720X1570mm |
| Labeling Speed | 3000-6500PCS/H | Trademark | JINZONG MACHINE |
| Transport Package | Wooden Case | Origin | China |
Technical Specification
- 1. Specification of Automatic Labeling Machine:
No. | Item | Details |
1 | Labeling Heads Qty | 1 |
2 | Application of label type | adhesive sticker,etc |
3 | Width of label(height) | Max:200mm |
4 | Length of Label | Max:400mm |
5 | Size of scraper/hair brusher | 20-200mm |
6 | Dimension of the bottle | Thickness≤90mm Height≤450mm |
7 | Labeling Speed | 45m/min |
8 | Speed of conveyor | 0-30m/Min |
9 | Capacity | 3000-6500pcs/h |
10 | Labeling locating precision | ±0.2mm |
11 | Labeling speed | ±1mm |
12 | Label roller outside diameter | 350mm |
13 | Label roller inside diameter | 76.2mm |
14 | Label roller loosen device | 1set |
15 | Recycling roller diameter | Max:180mm |
16 | Label recycling way | Paper plate rewinding the label |
17 | Height of conveyor | 950±50mm |
18 | Correction tape adjusting | Screw adjusting |
19 | Net weight(kg) | 250kg |
20 | Bottle transport direction | From left to right |
21 | Labeling direction | From left to right |
22 | Size | 1950mm*W720mm*H1570mm |
23 | Power Supply | 220V/50Hz 1200W |
Applicable Packaging Materials | |
Label Material | All the paper/film labels |
Thickness of label | >25μm |
Material of Labels foundation | Have enough tension,in general,most of factory use Glasin/PET labels foundation |
Labels spacing | Mininum:2.54mm |
Label size allowed error | ±0.3 mm |
Label maximum width | < 200mm |
Electric Configuration of the labeling macine:
1 | Siemens CPU224 CN | 6ES7 214-1AD23-OXB8 | SIEMENS | 1 | set | |
2 | PLC | PWS5610T-S | HITECH | 1 | set | |
3 | Servo Drivers | MCDDT3520003 | 220V/750W | Panasonic | 1 | set |
4 | Servo Motor | MHMDD082P1U | 750W/3AC-120V | Panasonic | 1 | set |
5 | Single-phase Induction Motor | M9MZ60G4YGA | 220V/60W | Panasonic | 1 | set |
6 | Capacitor Run Induction Motor | M91Z60GV4GGA | 220V/60W | Panasonic | 1 | set |
7 | Motor Speed Controller | MGSDB2 | 220V | Panasonic | 1 | pcs |
8 | Starting Capacitance | 5uF/450V | Panasonic | 1 | pcs | |
9 | Reducer | MY9G50B | Panasonic | 1 | set | |
10 | Single-phase Vertical Motor | 750W | WANXIN | 1 | set | |
11 | Frequency Converter | VLT-FC51 | 0.75KW | Danfoss | 1 | set |
12 | Frequency Converter | VLT-FC51 | 0.37KW | Danfoss | 1 | set |
13 | Sensor | GS61/6D.3-S8 | LEUSE | 2 | pcs | |
14 | FOS | FS-V11P | PNP | KEYENCE | 1 | set |
15 | Switch | 220V/10A | Made in China | 1 | pcs | |

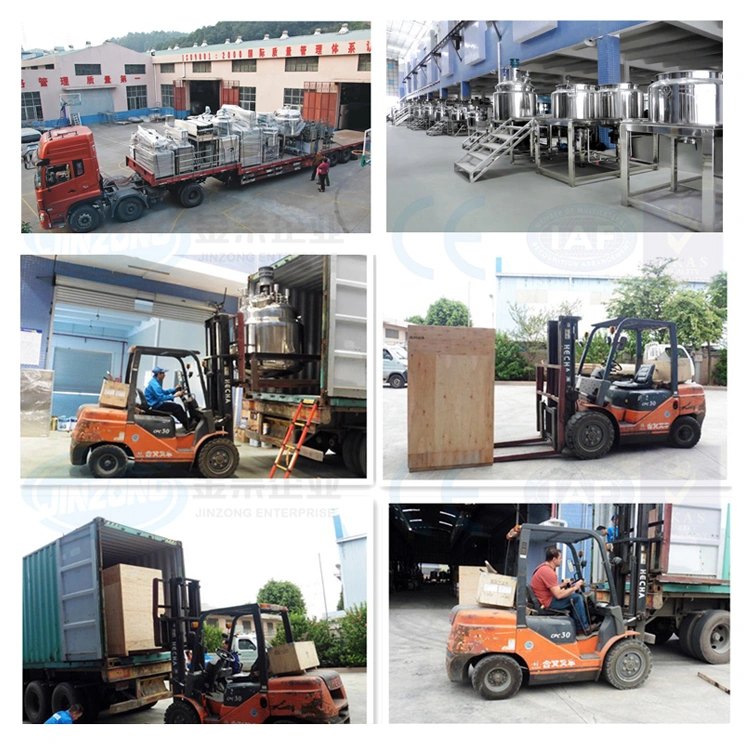

Packaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
FOB port: Guangzhou or Shenzhen
Our Services
We are not only professional manufacturer, but also the best solution provider!
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.

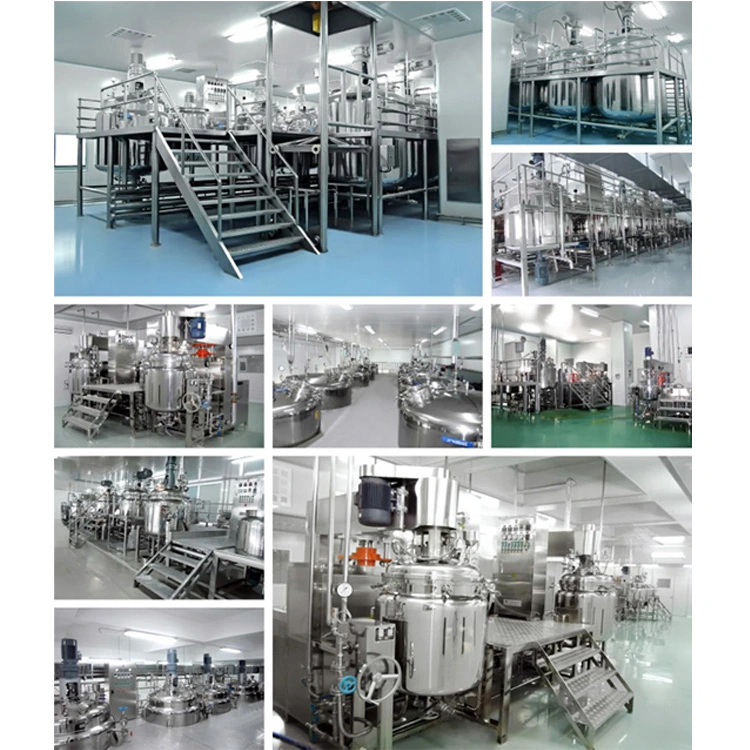

Example Project:
Our factory:

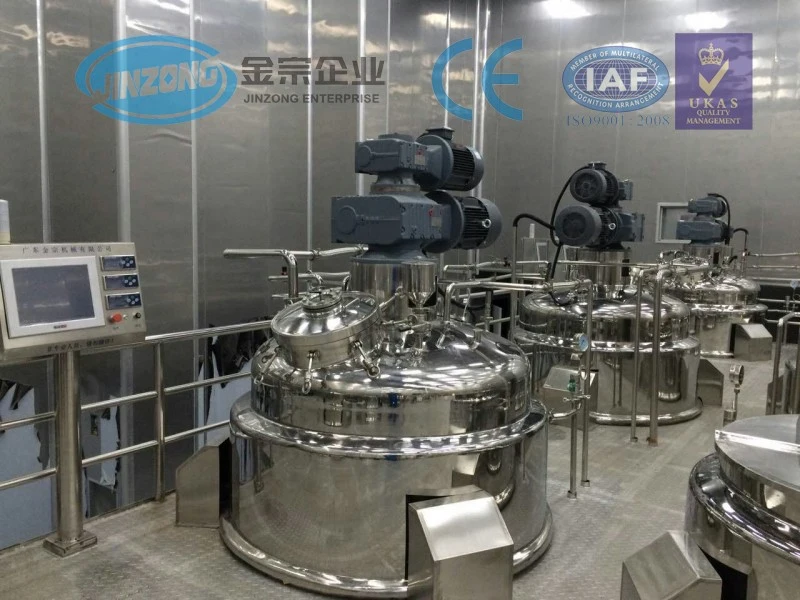

JINZONG ENTERPRISE is a technology innovation enterprise for integrating design, manufacturing and system integration of cosmetic machinery & equipment.With 20 years development,Jinzong has four wholly-owned subsidiary,and Guangzhou Jinzong Machinery Co.,Ltd & Guangdong Jinzong Machinery Co.,Ltd,which is under the jurisdiction of Cosmetic Division & International Trading Division,is responsible for complete sets equipment's design,manufacturing,project solution of cosmetic cream manufacturing machines,liquid detergent making machines,make-up products making machines.
JINZONG ENTERPRISE has over 20,000 square meters production base;Guangzhou Jinzong its covers an area of 8,000 square meters,Guangdong Jinzong its cover and area of 17,000 square meters,and Jinzong has been service over 2,000 customers around the world.
JINZONG ENTERPRISE has been cooperating with university & scientific research academy for researching & technical improving the production technology since 2004.Jinzong has professional & experienced technical team to design & manufacture the products in accordance with ISO quality management system,Jinzong has professional project installation team and after-sales service team for providing best service to our clients.
JINZONG ENTERPRISE production is based on the "efficiency, safety, and environment friendly"; "quality first, service-oriented" as a fundament,; constantly beyond, Jinzong will always provide better products and services to clients!
